Web Sensor - remote thermometer hygrometer barometer with Ethernet interface

Web Sensor - remote thermometer hygrometer barometer with Ethernet interface

SKU: T7510   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

Web Sensor with built-in temperature, relative humidity and atmospheric pressure sensors One of the best barometers Weather sensor for environment monitoring High precision capacitive polymer sensor ensures excellent long term calibration stability and ultimate accuracy Dual line LCD is an advantage Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio and specific enthalpy.

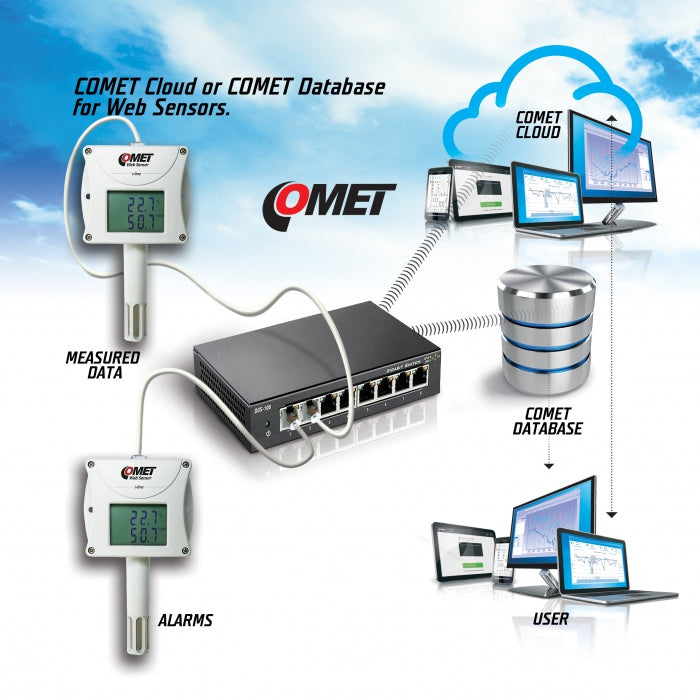

Processing and analysis of measured data: online in COMET Cloud, COMET Database, software integration into 3-party systems.

Features and Benefits:

    •High precision capacitive polymer sensor.

    •Excellent long term calibration stability and ultimate accuracy.

    •Dual line LCD for easy reading.

    •Converts measured values to various humidity interpretations.

    •Integration into third-party systems.

    •Weather sensor for environment monitoring.

    •Remote alarm monitoring.

Specifications:

 Temperature Sensor Measuring range -30 to +80 °C
 Temperature Sensor Accuracy ±0.6 °C
 Temperature Sensor Resolution 0.1 °C
 Humidity Sensor Measuring range 0 to 100 % RH
 Humidity Sensor Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Sensor Resolution 0.1% RH
 Dew Point Measuring range -60 to +80 °C
 Dew Point Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution 0.1 °C
 Atmospheric Pressure Sensor Measuring range 600 to 1100 hPa
 Atmospheric Pressure Sensor Accuracy ±1.3 hPa at 23 °C from 800 to 1100 hPa
 Atmospheric Pressure Sensor Resolution 0.1 hPa
 General Operating temperature -30 to +80 °C
 Channels internal sensor of temperature, humidity sensor and atmospheric pressure
 Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
 Output Ethernet
 Measuring interval 2 s
 Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
 Alarm protocols E-mail, SNMP Trap, Syslog
 Power 9-30 Vdc
 Protection class IP30
 Dimensions 88,5 x 147,5 x 39,5 mm; stem length 75 mm
