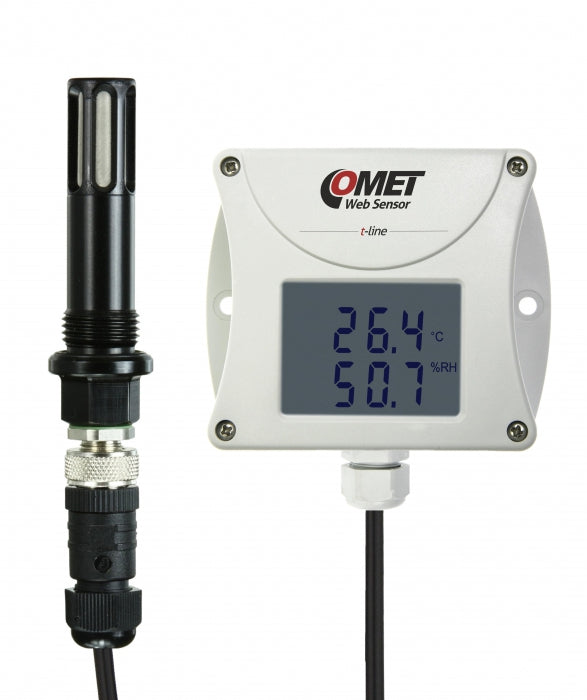

Web sensor - compressed air remote thermometer hygrometer with Ethernet interface

Web sensor - compressed air remote thermometer hygrometer with Ethernet interface

SKU: T3511P   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

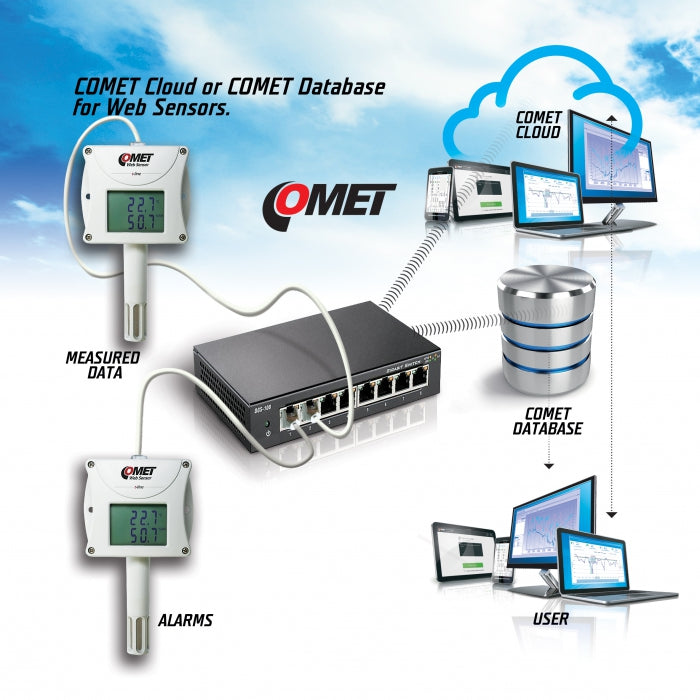

Humidity, temperature transmitter with T+RH probe constructed from hard anodized duralumin, suitable for measuring compressed air up to 25 bars via a 1 meter cable The measured values are converted to various humidity interpretations including dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy The device enables processing and analysis of data online in COMET Cloud, through COMET Database software, and integration into third-party systems.

Features and Benefits:

    •Humidity, temperature transmitter with remote features.

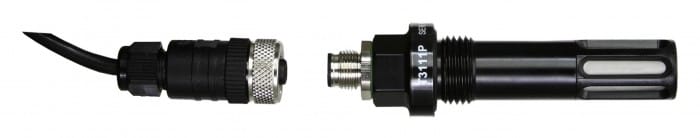

    •T+RH probe made of hard anodized duralumin.

    •Compatible with compressed air up to 25 bars.

    •Capable of interpreting measured values into multiple humidity metrics.

    •Online data processing and integration capabilities.

Specifications:

 Temperature Measuring Range -30 to +105 °C
 Temperature Accuracy ±0.4 °C
 Temperature Resolution 0.1 °C
 Humidity Measuring Range 0 to 100 % RH
 Humidity Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Resolution 0.1% RH
 Dew Point Measuring Range -60 to +80 °C
 Dew Point Accuracy ±1.5°C for dew point temperature +10°C and higher at ambient temperature +25°C
 General Operating Temperature -30 to +80 °C
 Channels 1x connectable temperature+humidity probe
 Output Ethernet
 Measuring Interval 2 s
 Power 9-30 Vdc
 Protection Class IP30 electronics; IP40 sensors

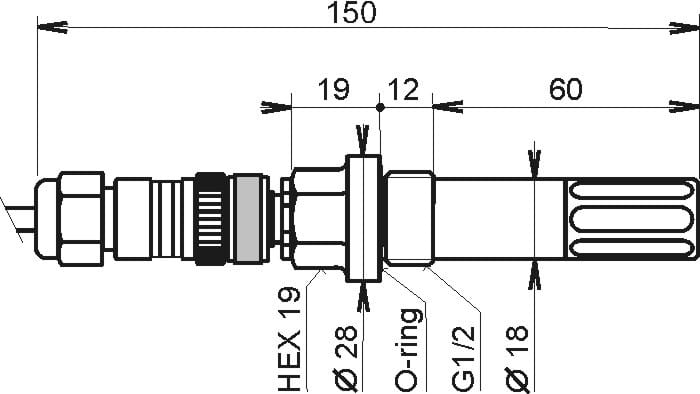

 Dimensions 88.5 x 93 x 39.5 mm; length/diameter of external probe 150/18 mm
 External Probe Cable Length 1 meter
