Description:

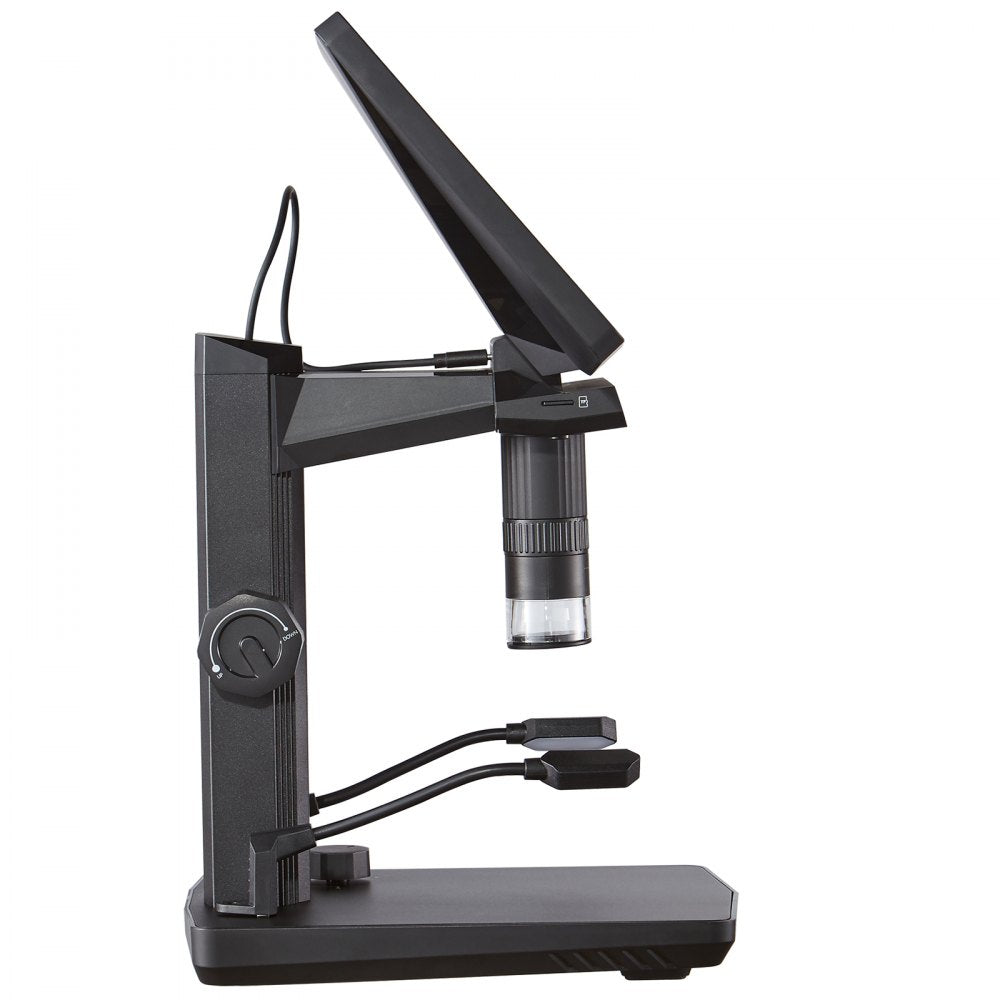

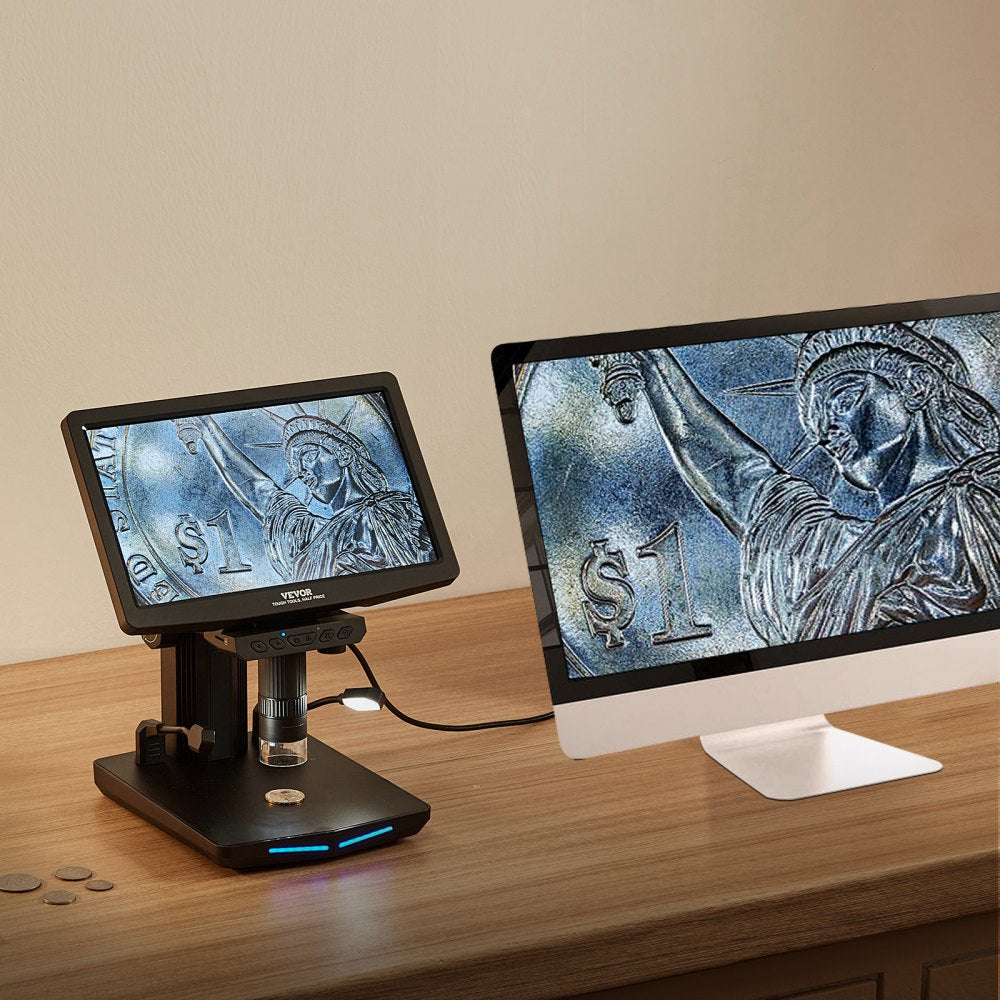

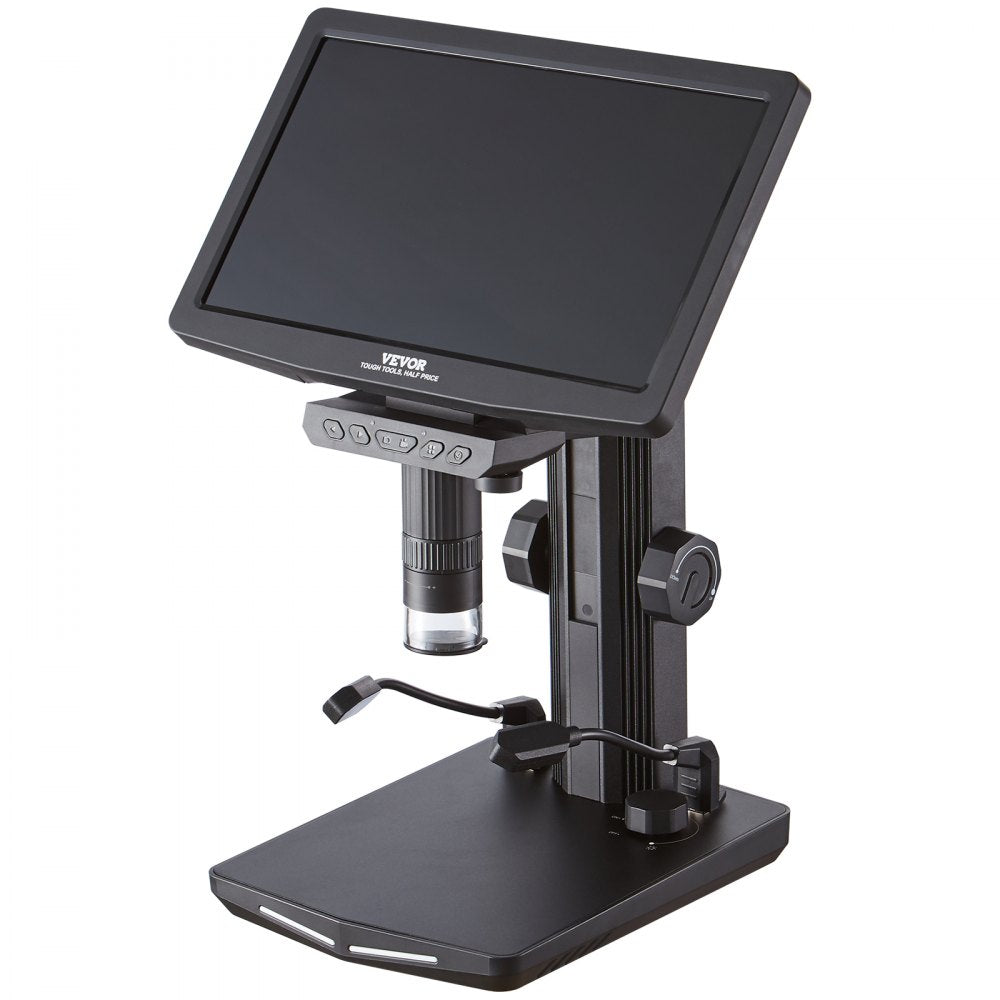

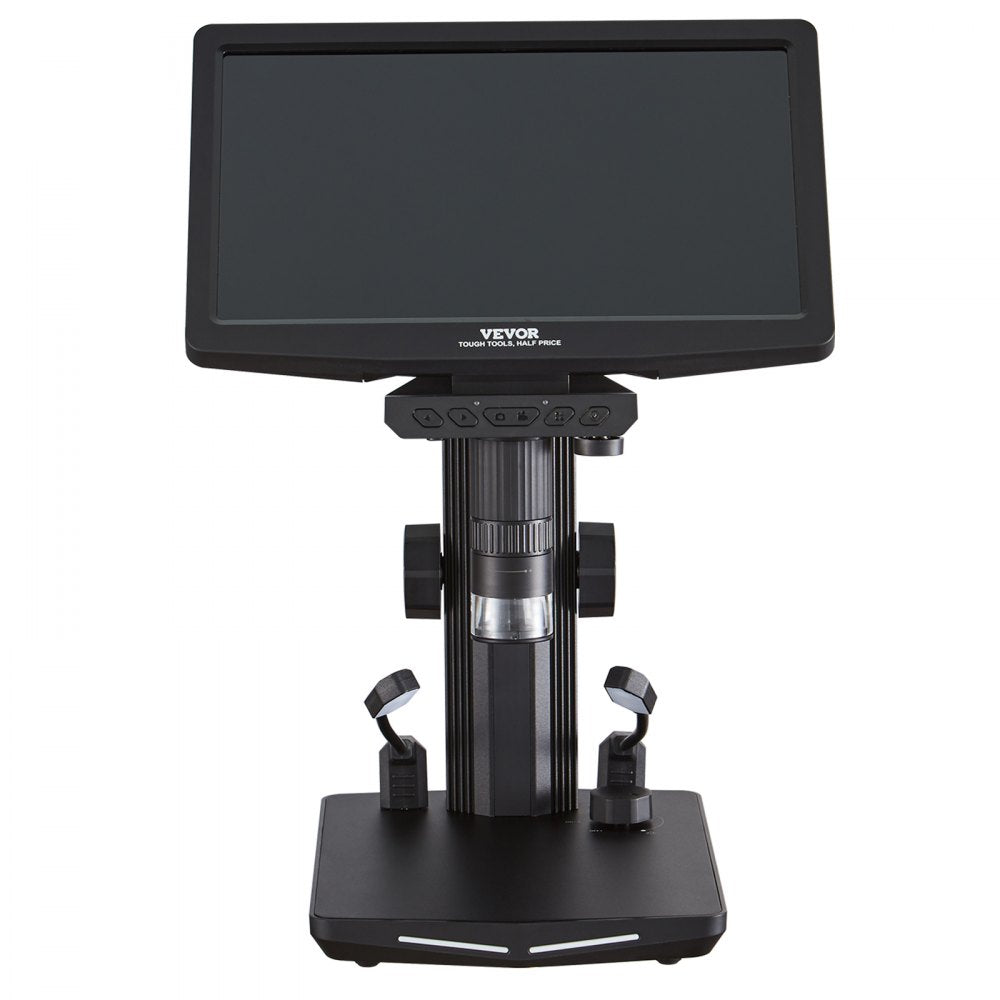

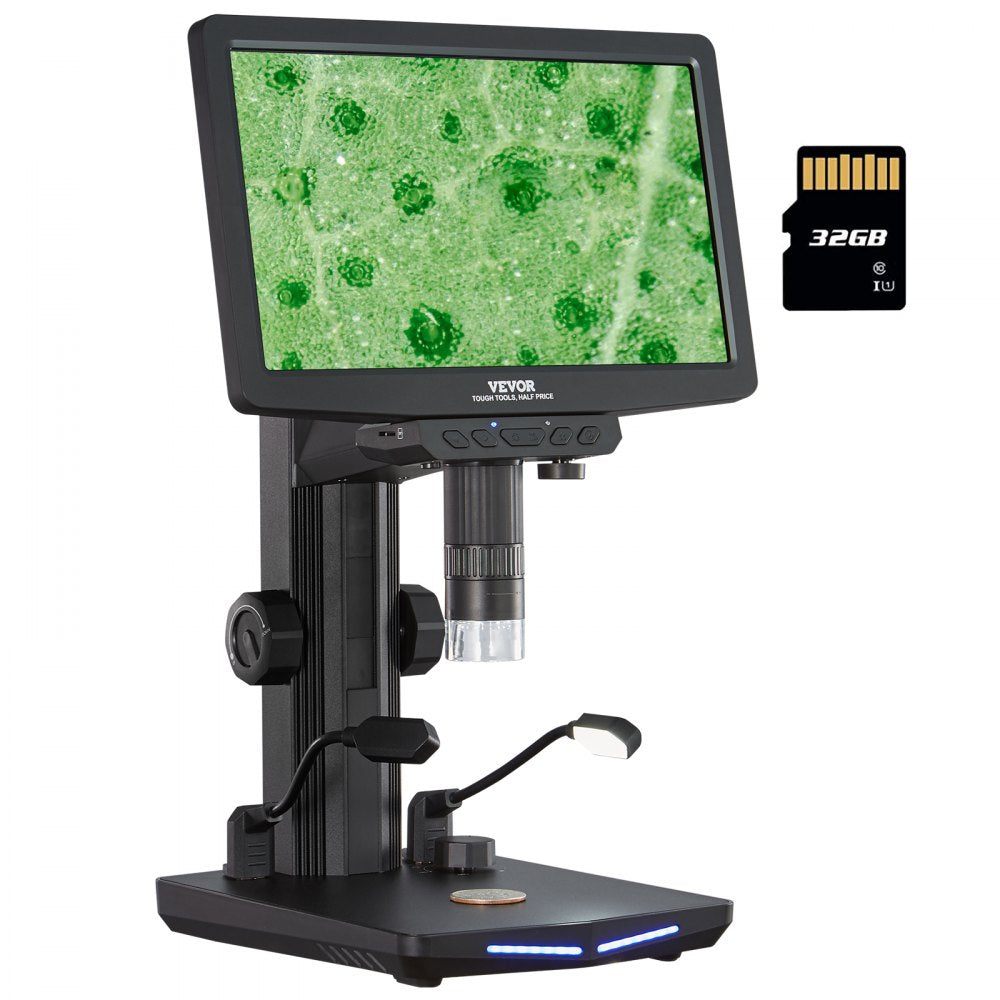

Experience modern magnification with the VEVOR 101" HDMI LCD digital microscope This innovative device is equipped with a 103-inch high-resolution IP display, offering magnification capabilities of up to 1300X for detailed analysis Its versatile design allows for easy connection to larger screens, making it an excellent choice for collaborative viewing or presentations The adjustable screen can pivot between 90 and 135 degrees for optimal positioning, while the USB connection enables seamless data transfer and powers the microscope, ensuring extended operational time without disruptions.
Features and Benefits:

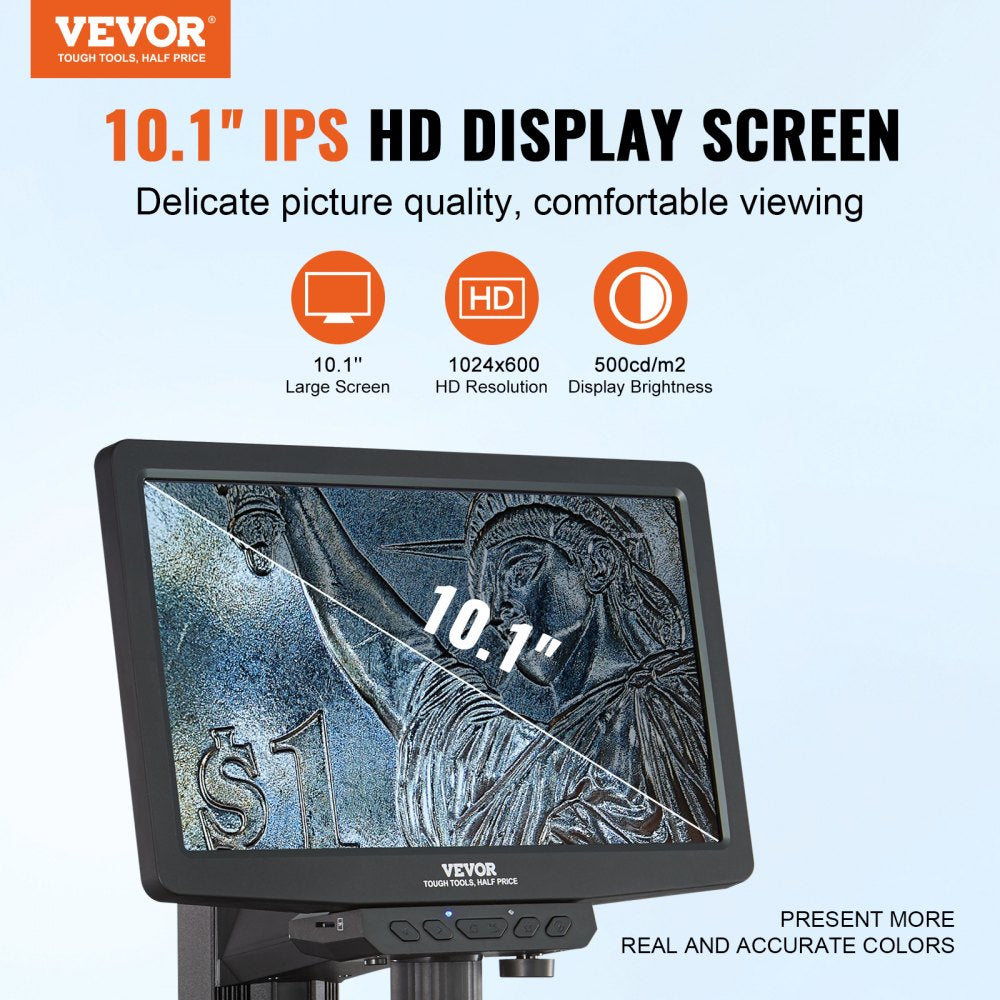

•10.1-inch HD display features a resolution of 1024x600 and brightness of 500cd/m2.
•Adjustable brightness and positions of 8 LED lights and 2 flexible side lights for even illumination.
•Portable and compact design makes it suitable for travel and storage.
•User-friendly interface that simplifies operation for beginners.
•Ideal for observing coins, soldering tasks, plant research, jewelry identification, and circuit maintenance.

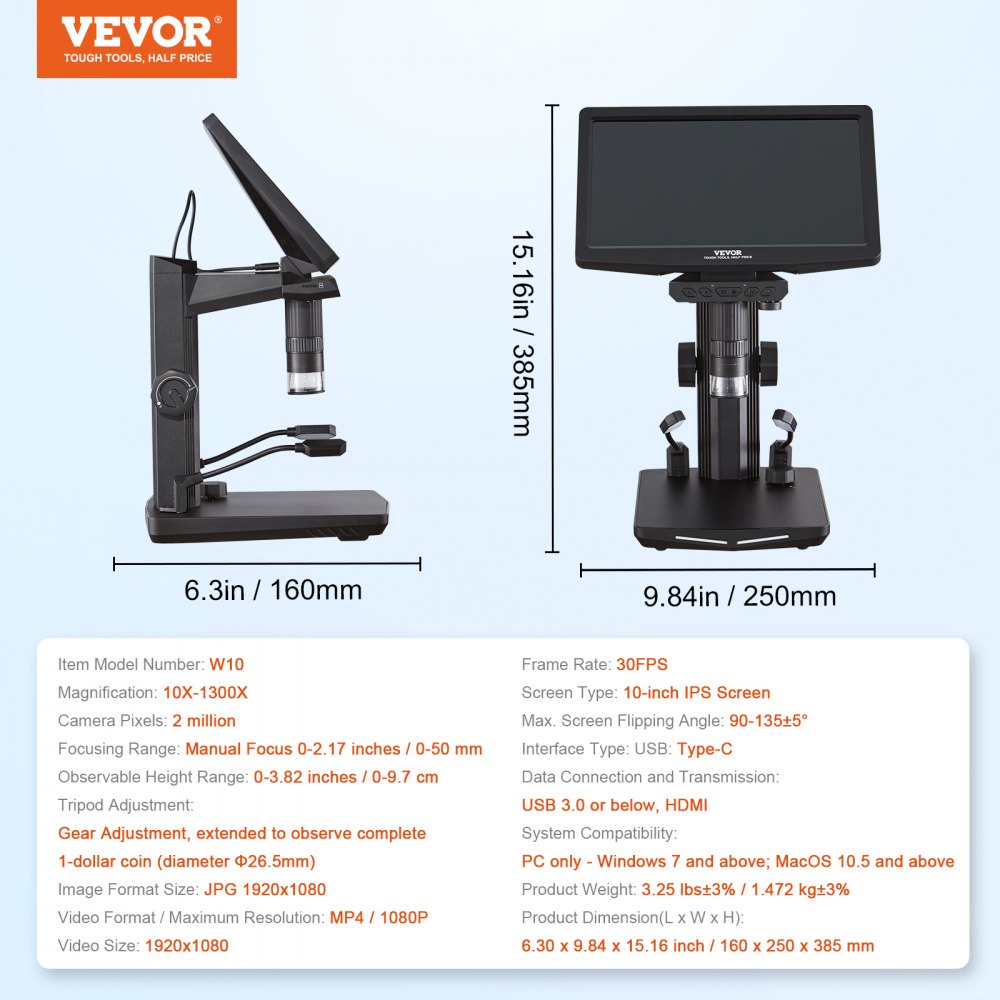

Specifications:
| Item Model Number | W10 |
| Power Supply | DC5V 1A (Direct Plug + Built-in Lithium Battery) |
| Operating Temperature | -50℉～+131℉/30%～85%Rh / -10℃～+55℃/30%～85%Rh |
| Storage Temperature | -104°F to +176°F / -40°C to +80°C |

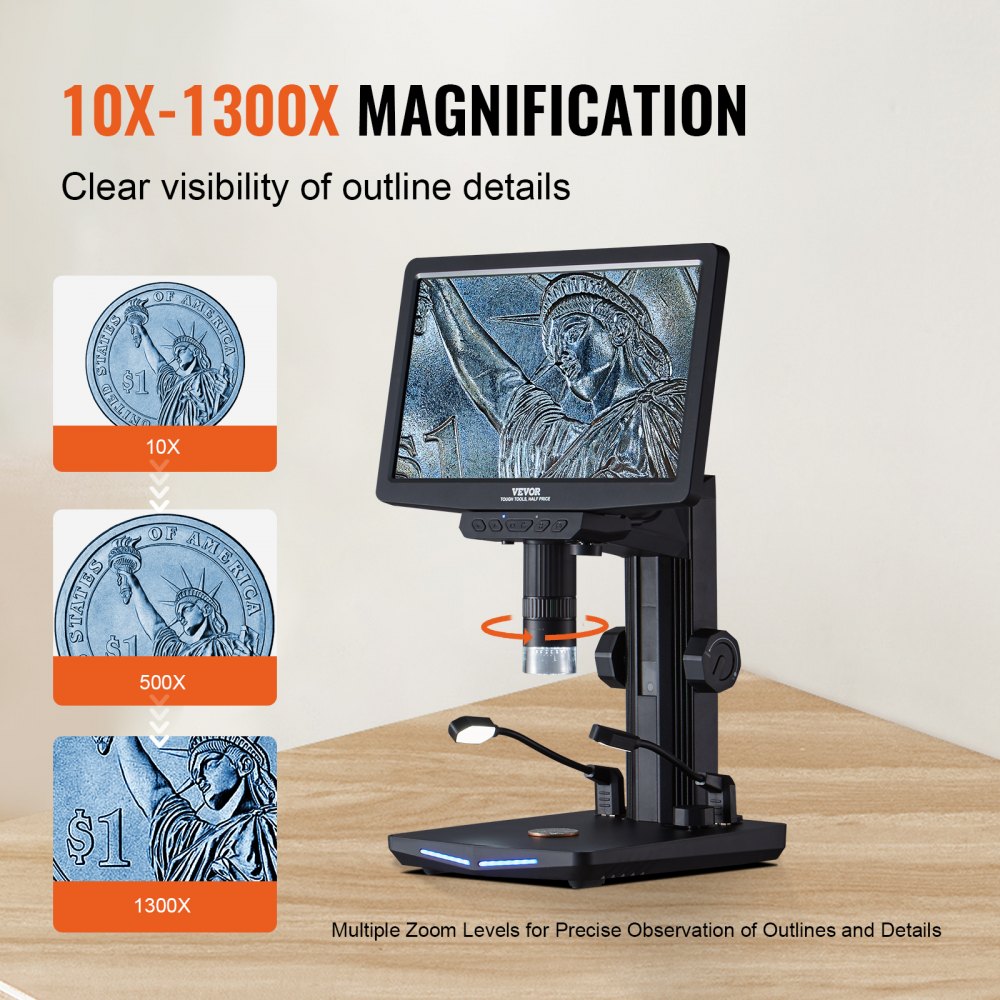

| Magnification | 10X-1300X |
| Camera Pixels | 2 million |
| Focusing Range | Manual Focus 0-2.17 inches / 0-50 mm |
| Observable Height Range | 0-3.82 inches / 0-9.7 cm |
| Tripod Adjustment | Gear Adjustment, extended to observe complete 1-dollar coin (diameter Φ26.5mm) |

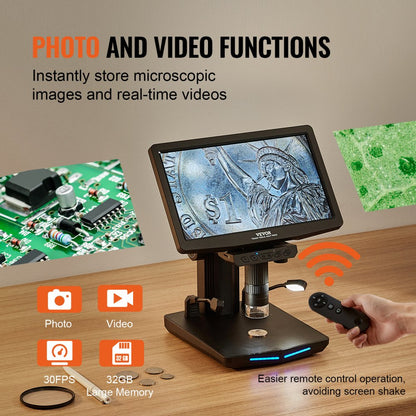

| Image Format Size | JPG 1920x1080 |
| Video Format / Maximum Resolution | MP4 / 1080P |
| Video Size | 1920x1080 |
| Frame Rate | 30FPS |
| Screen Type | 10.1-inch IPS Screen |
| Max. Screen Flipping Angle | 90-135±5° |
| Interface Type | USB |

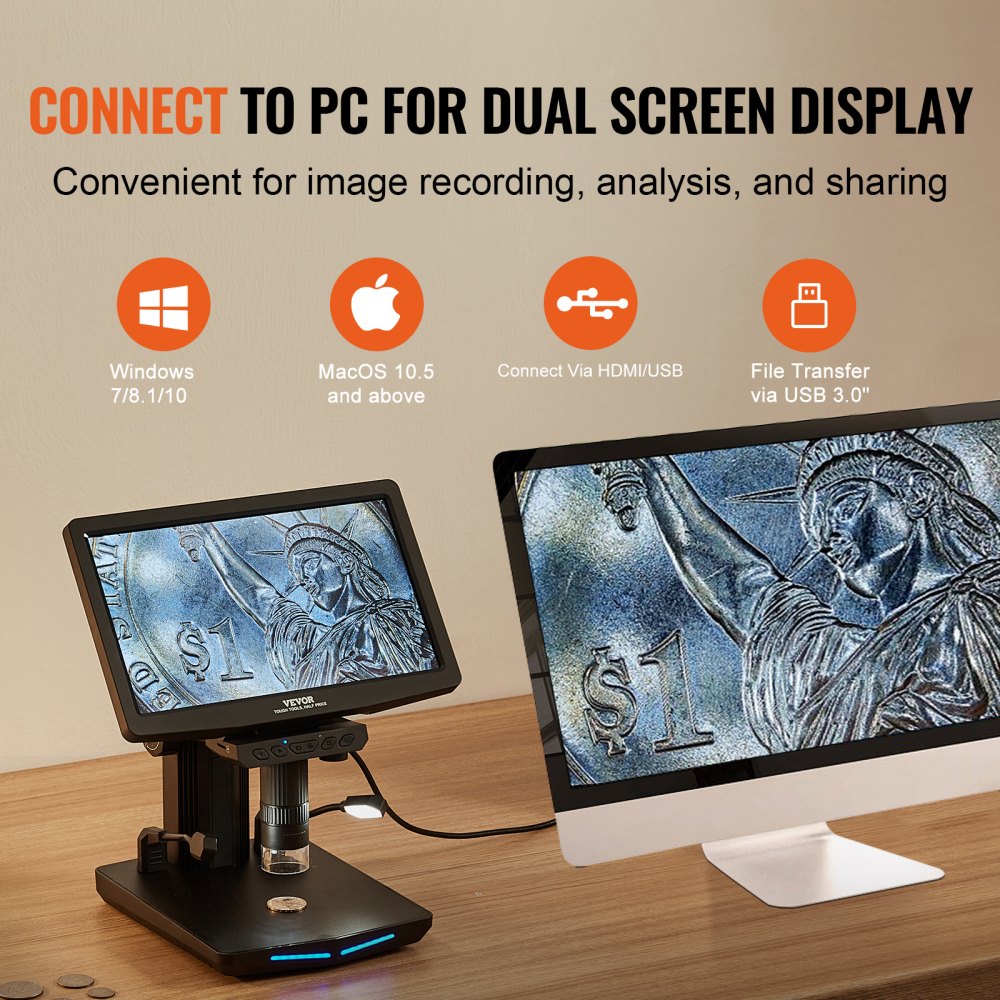

| Data Connection and Transmission | USB 3.0 or below, HDMI |
| System Compatibility | PC only - Windows 7/8.1/10; MacOS 10.5 and above |
