VIP-822A - Enhanced Network Trunk Port with 2 FXO Connections

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

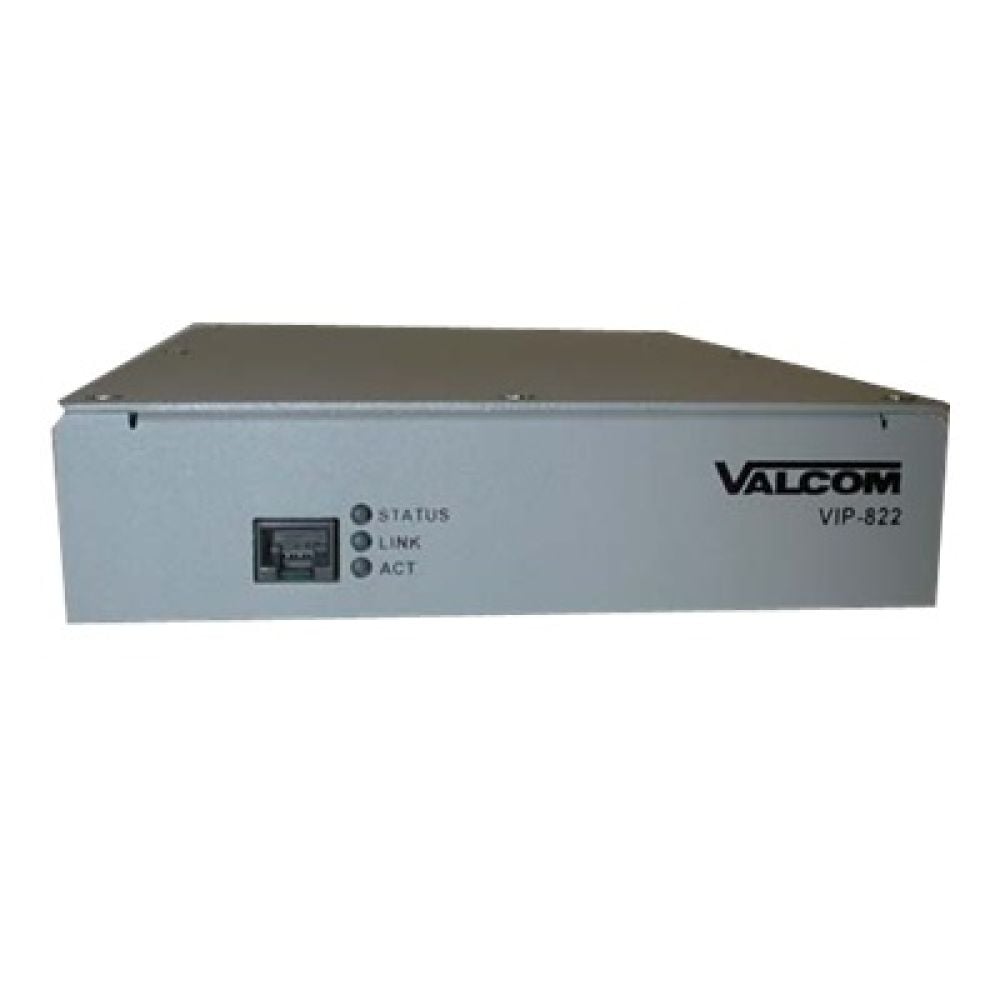

Introducing the Valcom VIP-822A, a powerful Network Trunk Port designed to connect up to two loop start terminal devices seamlessly to your managed IP-based LAN/WAN This advanced model features a single 10/100 Ethernet port, two FXO Trunk ports, and one Failover port, ensuring reliable connectivity The VIP-822A is equipped with all necessary circuitry and software for transforming network data into audio output and managing analog trunk control signals.

It efficiently converts input audio and analog trunk events into zone page audio and control information, which can be transmitted to other Valcom IP Solutions products As part of a serverless network-based communication system, the VIP-822A delivers exceptional functionality and versatility for your communication needs.

Features and Benefits:

•2 FXO Ports.

•Peer-Peer, No Server Required.

•Auto Destination Programmable.

•DTMF Dial Select - 1024 Zones.

•1 to 11 Digit Dial Plans.

•Two Way – Transmit / Receive.

•POE 802.3af, Class 3, or Local Power 24 VDC.

•Can Use DHCP Servers to Acquire IP Addresses.

•Easy Windows Based Setup.

•1 RJ45 Ethernet Connection.

•Front Panel Activity LED.

•Network Activity LEDs.

•Point to Point, Zones, Groups, All Call.

•UDP, Multicast.

•Caller ID Information - Various Options.

Specifications:
