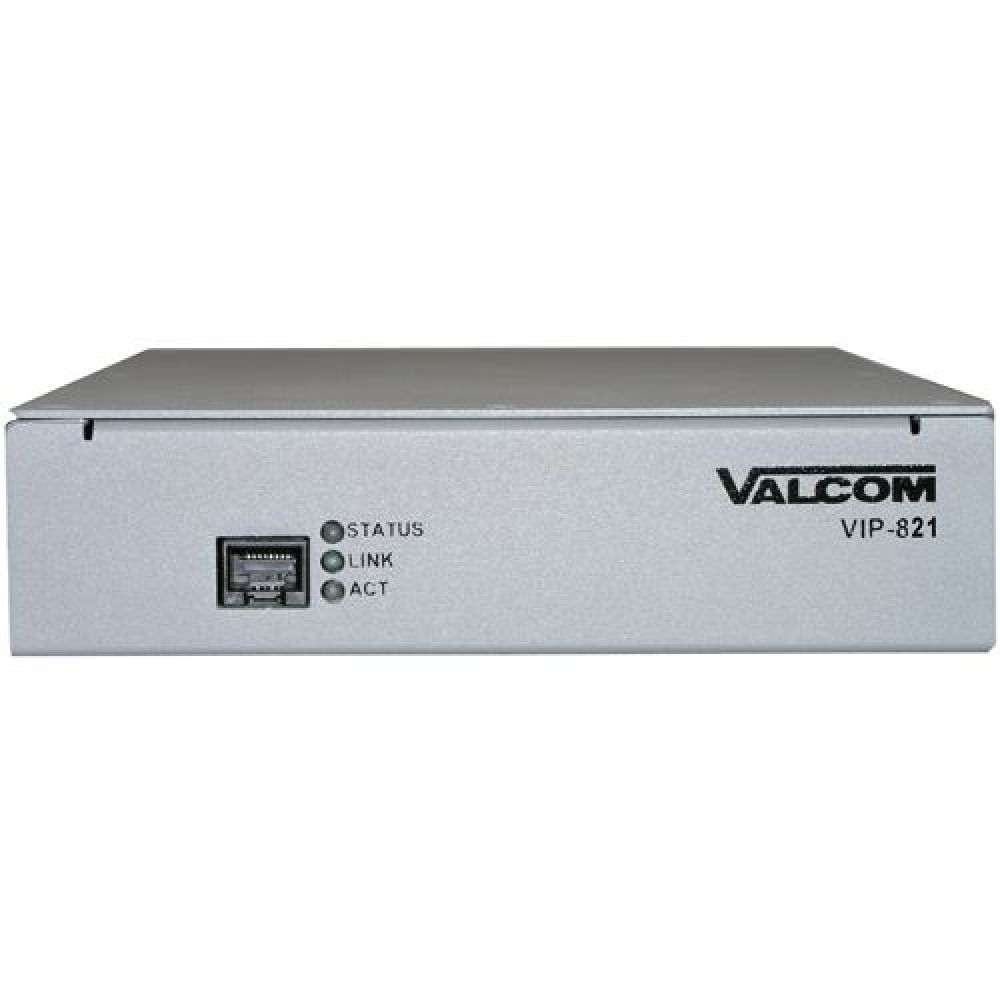

VIP-821A - Enhanced Network Trunk Port with FXO and Ethernet Connections

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Valcom VIP-821A, a sophisticated Network Trunk Port designed to seamlessly connect various loop start terminal devices to an IP-managed LAN/WAN This advanced model features a single 10/100 Ethernet port, one FXO Trunk port, and an additional Failover port The VIP-821A comes equipped with all necessary circuitry and software to transform network data into audio output, as well as analog trunk control signals.

It efficiently converts input audio and trunk events into zone page audio and control data compatible with other Valcom IP Solutions products The VIP-821A is a key component of a serverless network-based communication system, enhancing connectivity and functionality.

Features and Benefits:

•1 FXO Port.

•Peer-Peer, No Server Required.

•Auto Destination Programmable.

•DTMF Dial Select - 1024 Zones.

•1 to 11 Digit Dial Plans.

•Two Way – Transmit / Receive.

•POE 802.3af, Class 3, or Local Power 24 VDC.

•Can Use DHCP Servers to Acquire IP Addresses.

•Easy Windows Based Setup.

•1 RJ45 Ethernet Connection.

•Front Panel Activity LED.

•Network Activity LEDs.

•Point to Point, Zones, Groups, All Call.

•UDP, Multicast.

•Caller ID Information - Various Options.

Specifications:
