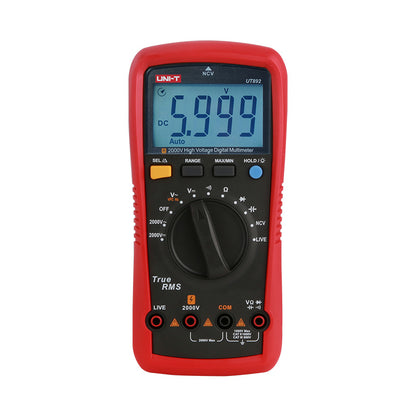

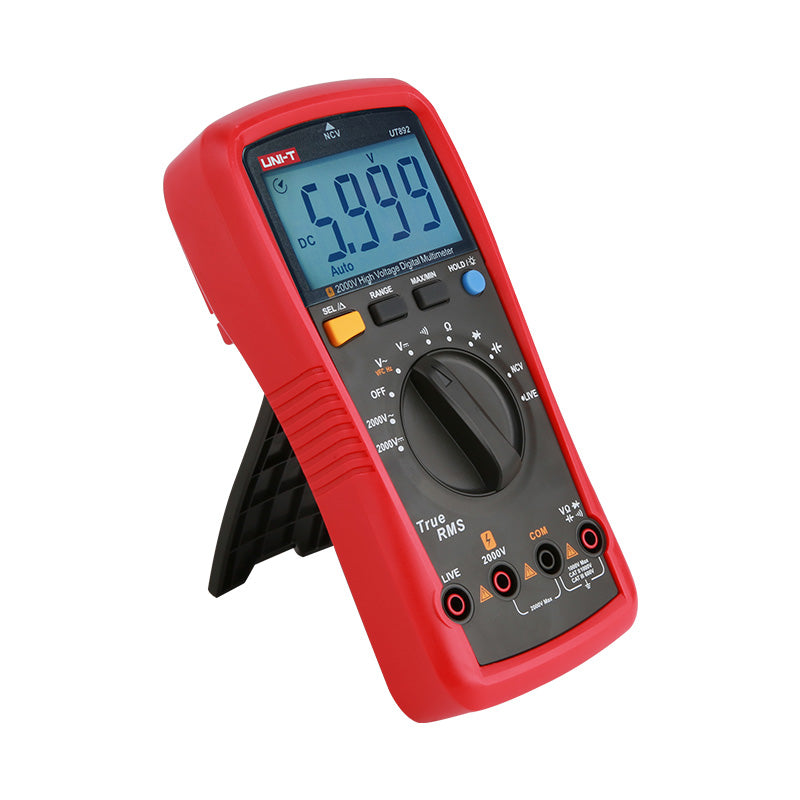

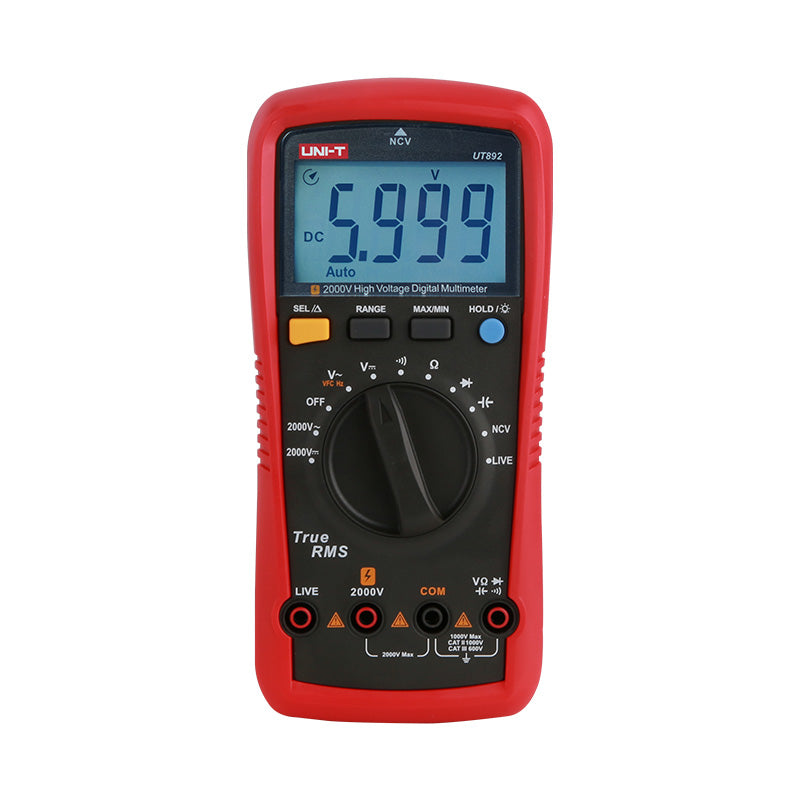

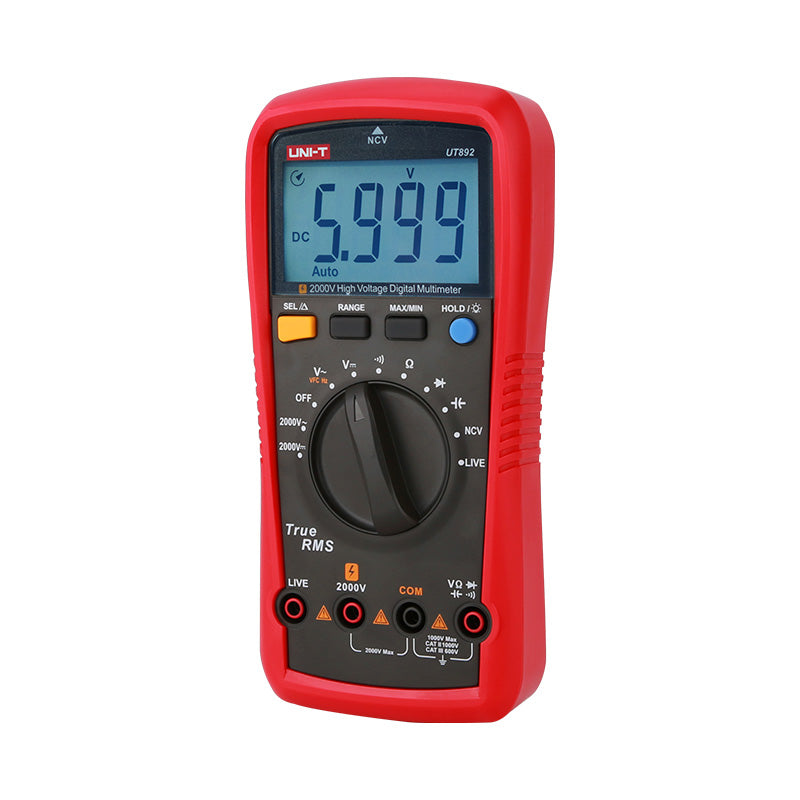

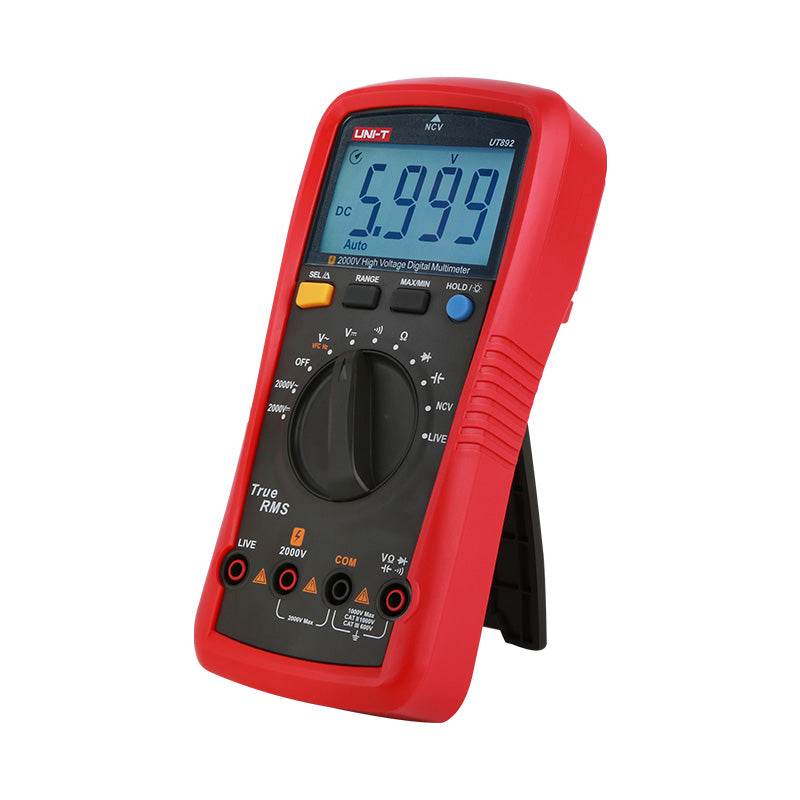

UT892 2000V AC/DC High Voltage Digital Multimeter

UT892 2000V AC/DC High Voltage Digital Multimeter

SKU: UT892 Download PDF

Now $4,499.00
BEFORE   Now $4,499.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

UT892 High Voltage Digital Multimeter provides AC/DC voltage measurement up to 2000V with full range overload protection The specially designed 2000V input terminal and the indication for test leads allow users to take electrical measurements safely and efficiently This meter features VFC mode for accurate measurements on variable frequency motor drives and noisy devices The built-in NCV helps users detect the presence of live voltage without contacting any metal conductor, and the LIVE test can identify the live wire with a single test lead.

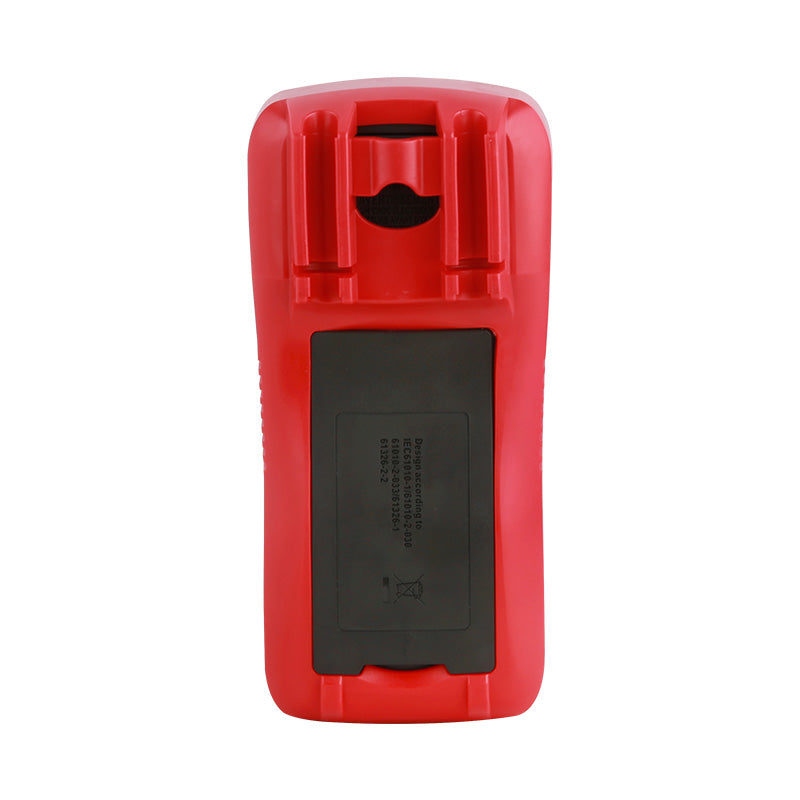

UT892 has a removable rubber holster that can also hold test probes for one-handed operation.

Features and Benefits:

    •6000 counts True RMS.

    •2000V AC/DC voltage measurement.

    •VFC 600V voltage measurement.

    •LIVE test.

    •60MΩ resistance/60mF capacitance.

    •10kHz frequency measurement.

    •Test lead indication.

    •Backlight.

    •NCV.

    •CAT II 1000V/CAT III 600V.

    •DC voltage Measurement.

    •Resistance Measurement.

    •Frequency Measurement.

    •NCV Measurement.

Specifications:

 DC voltage (V) 6.000V/60.00V/600.0V/1000V/2000V ±(0.5%+3)
 AC voltage (V) 6.000V/60.00V/600.0V/1000V/2000V ±(1.0%+3)
 Variable frequency voltage (VFC) 600V ±(5%)
 Frequency (Hz) 10Hz~10kHz ±(0.5%+2)
 Resistance (Ω) 600.0Ω/6.000kΩ/60.00kΩ/6.000MΩ/60.00MΩ ±(0.5%+5)
 Capacitance (F) 60.00nF/600.0nF~600.0μF/6000μF/60mF ±(3.0%+10)
 Display counts 6000
 Auto/manual range √
 NCV √
 LIVE test √
 Diode √
 Continuity √
 Low battery indication ≤ Approximately 2.5V √
 Data hold √
 Max/Min √
 Relative mode √
 Auto power off Approximately 15 minutes √
 Backlight √
 Safety rating CAT II 1000V/CAT III 600V √
 Power AA 1.5V x2
 Product color Red+Gray
 Product net weight 350g (Including batteries)
 Product size 187*88*56mm
