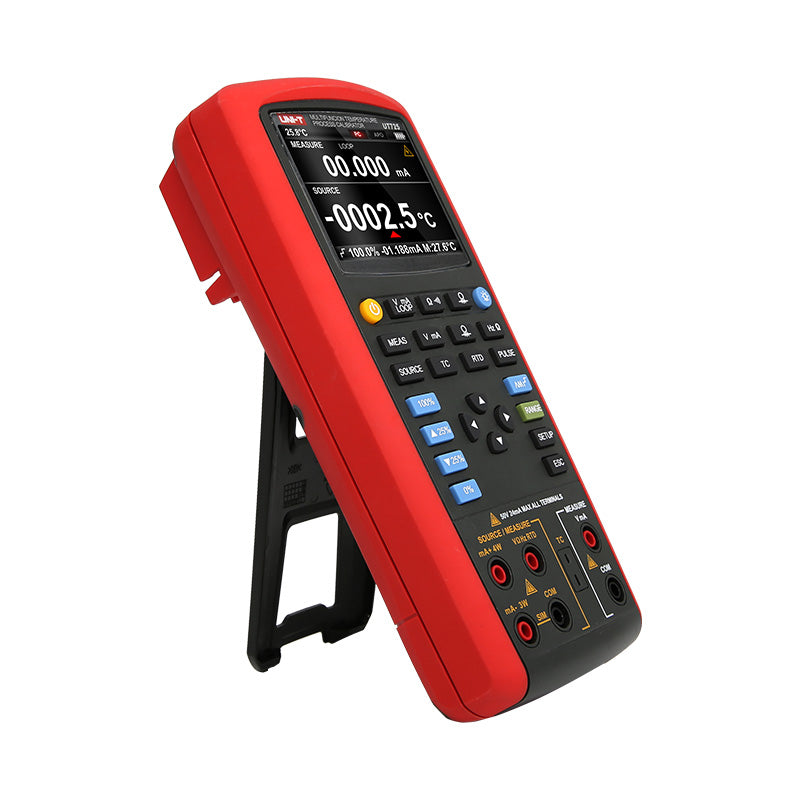

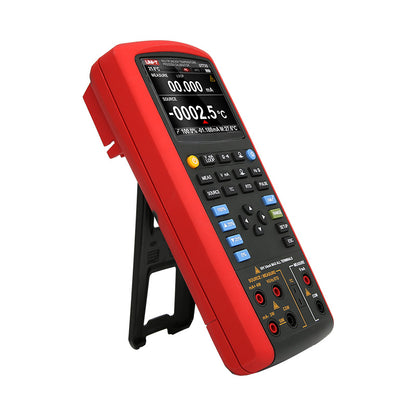

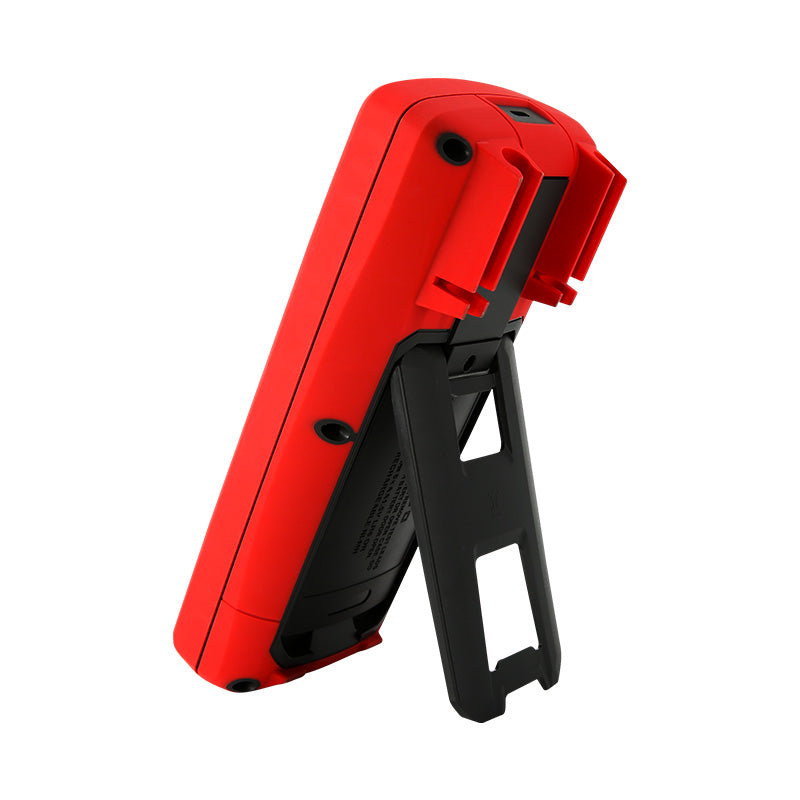

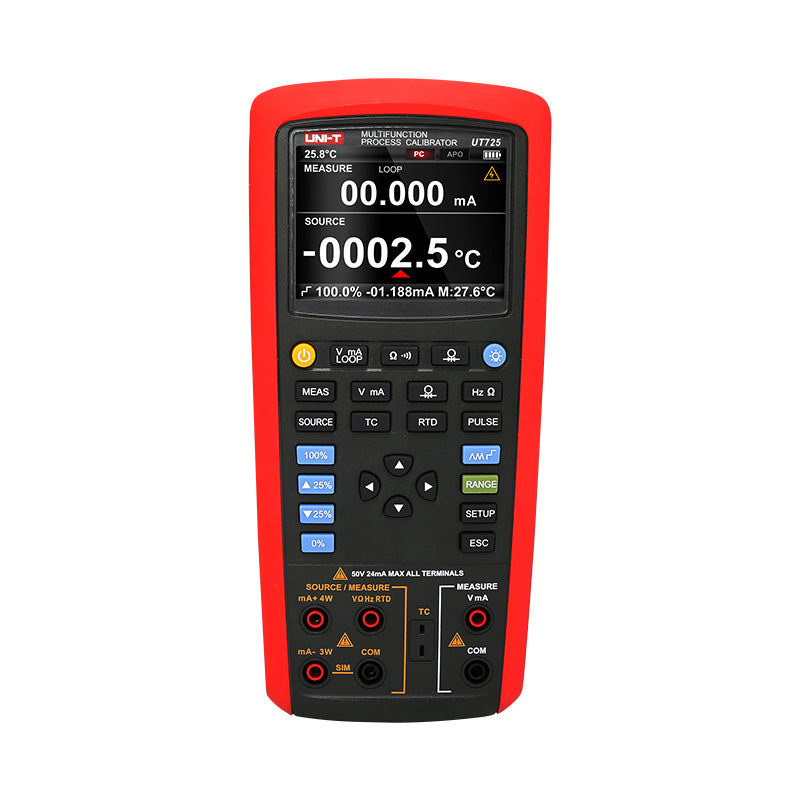

UT725 Multifunction Process Calibrator

Description:

The UT725 multifunction process calibrator combines temperature process calibrator and loop process calibrator functions It can easily measure and source most of the process parameters: mA, volts, temperature, frequency, and ohms in a single tool It features certifications such as CE and UKCA, step/ramp functions, source and measure accuracy up to 002%, a rechargeable battery, contrast adjustment, and an auto power off feature that is time adjustable.

The device stores and recalls setups, has USB communication capability, and can simultaneously measure and output different process signals in real time It can measure pressure with specified pressure modules and source pressure while providing 24V loop power to transmitters during mA current measurements.

Features and Benefits:

•Step/ramp functions.

•Source and measure accuracy up to 0.02%.

•Rechargeable battery.

•Contrast adjustment.

•Auto power off (Time adjustable).

•Stores and recalls setups.

•USB communication.

•Simultaneously measure and output different process signals in real time.

•Pressure measurement with specified pressure modules.

•Provides 24V loop power to transmitters while conducting mA current measurement.

•Current measurement.

•Temperature measurement.

Specifications:
