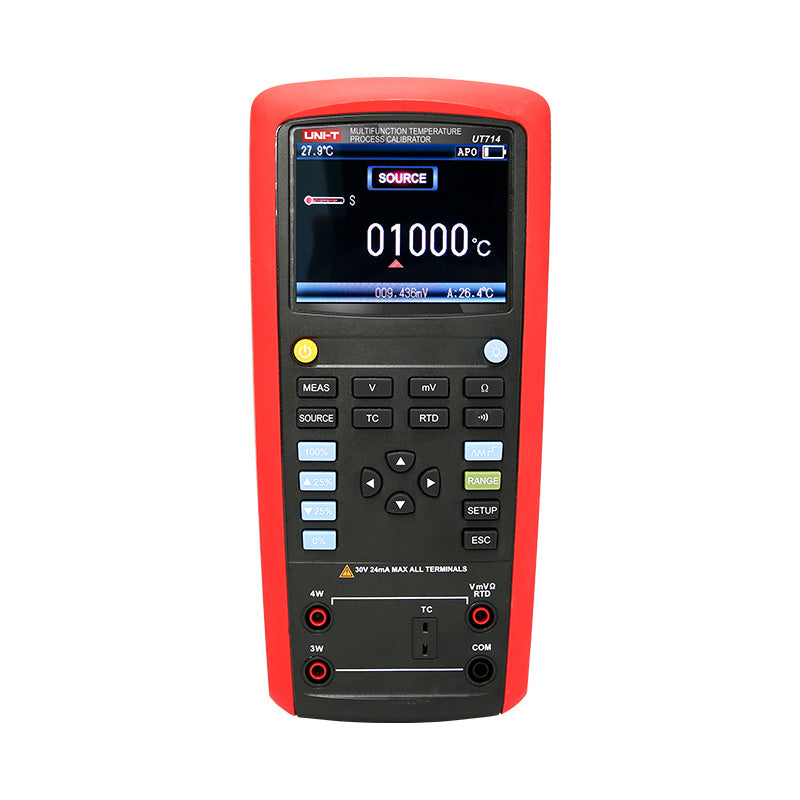

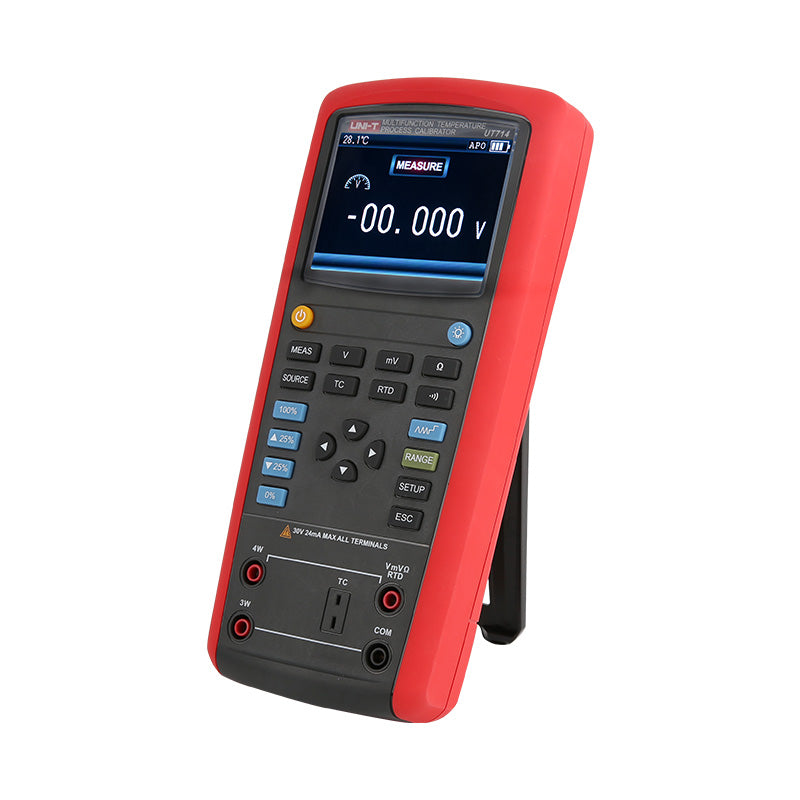

UT714 Multifunction Temperature Process Calibrator

UT714 Multifunction Temperature Process Calibrator

SKU: UT714   Download PDF

Qty:
Now $79,900.00   Web pricing policy
BEFORE   Now $79,900.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

The UT714 is a powerful temperature calibrator that can source and measure thermocouples, RTDs, voltage, and resistance This device is effective for testing and calibrating various types of temperature instruments It is specifically suitable for evaluating input/output temperature terminals such as sensors and transmitters.

Features and Benefits:

    •CE and UKCA certifications.

    •Step/ramp functions.

    •Source and measure accuracy up to 0.02%.

    •Rechargeable battery.

    •Contrast adjustment.

    •Auto power off (Time adjustable).

    •Stores and recalls setups.

    •USB communication.

    •RTDs measurement.

    •Resistance measurement.

Specifications:

 Measurement DC voltage (V) 50mV/500mV/30V ±(0.02%+2)
 Resistance (Ω) 500Ω/5000Ω ±(0.05%+10)
 Thermocouples R,S,K,E,J,T,N,B,L,U
 RTDs Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120
 Continuity test √
 Source DC voltage (V) 100mV/1000mV/10V ±(0.02%+10)
 Source Resistance (Ω) 400Ω/4000Ω ±(0.05%+10)
 Source Thermocouples R,S,K,E,J,T,N,B,L,U
 Source RTDs Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120
 Display count 20000
 Operating temperature -10°C~55°C
 Power 1.2V x 6 AA rechargeable battery
 Product size 195mm x 95mm x 58mm
