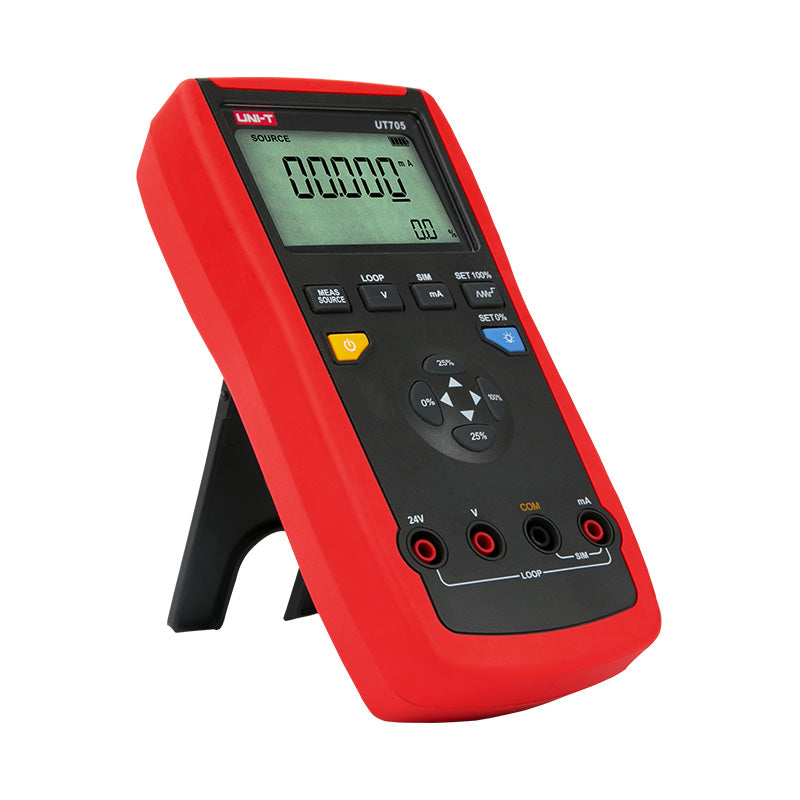

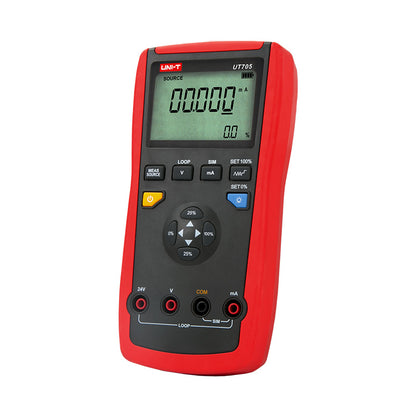

UT705 Single Function Loop Calibrator

UT705 Single Function Loop Calibrator

SKU: UT705 Download PDF

Now $39,599.00
BEFORE   Now $39,599.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

UT705 is a high performance device for loop calibration and maintenance Designed with high-accuracy DC current and transmitter analog current outputs, UT705 has DC voltage/current and loop current measurement functions with button settings, selectable steps and ramp outputs to help user work more efficiently and accurately It features LCD backlight, auto power off and 1m drop proof.

Features and Benefits:

    •Automatic ramp for DC current output.

    •Manual/automatic stepping and ramping output.

    •Stores and recalls setups.

    •Measures: DC voltage, DC current, 4-20mA loop current.

    •Output functions: DC current, analog transmitter, 24V loop.

    •Up to 0.02% accuracy current measurement at same time.

Specifications:

 DC voltage (V) 30.000V ±(0.02+2)
 DC current (A) 24.000mA ±(0.02+2)
 Loop current 24.000mA ±(0.02+2)
 DC current (source) 24.000mA ±(0.02+2)
 DC current (simulate) 24.000mA ±(0.02+2)
 Loop power function Voltage: 24V, Accuracy: 10%
 Power 9V battery (6F22)
 Display 63mm x 40mm
 color Red and grey
