UT701 Single Function Temperature Calibrator

UT701 Single Function Temperature Calibrator

SKU: UT701 Download PDF

Now $31,299.00
BEFORE   Now $31,299.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

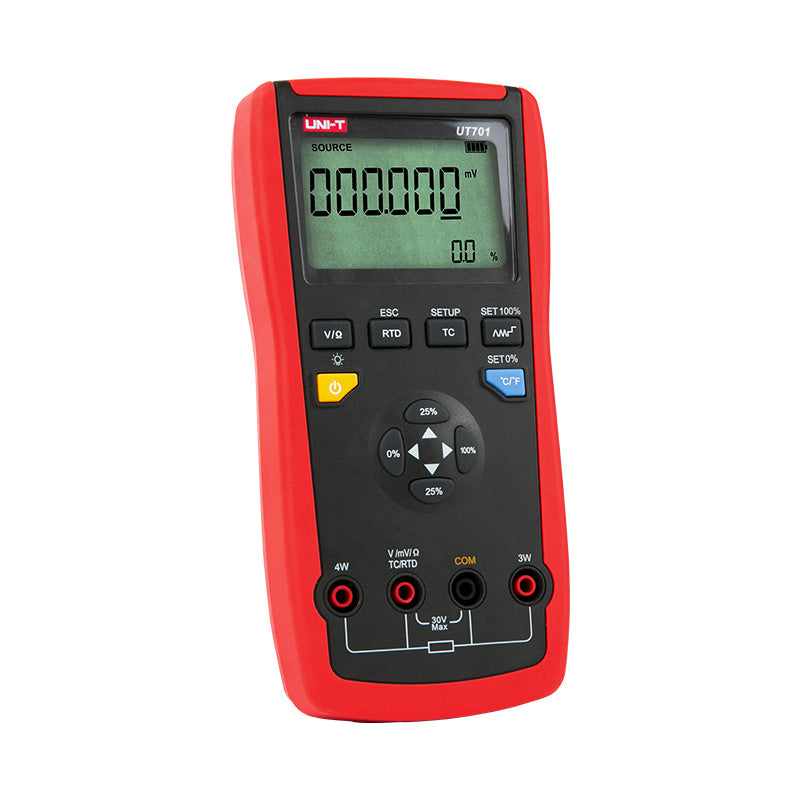

The UT701 Single Function Temperature Calibrator is equipped with 10 thermocouple types, 4 RTD types, and voltage/resistance output function, making it professional and convenient for users to calibrate and repair various temperature testers It features easy-to-operate keys, selectable steps, and ramp outputs that enhance operational efficiency and accuracy Additional features include an LCD backlight, auto power off, a bi-color injection case, and a drop-proof design that can withstand falls from up to 1 meter.

Features and Benefits:

    •Up to 0.05% output accuracy.

    •6-digit display.

    •Output functions: DC voltage, resistance, thermocouple, and thermal resistance.

    •10 thermocouple scales.

    •4 thermal resistance scales.

    •High precision automatic cold junction compensation for thermocouple outputs.

    •Manual stepping and automatic stepping and ramping.

    •Stores and recalls setups.

    •Temperature measurement.

    •Voltage measurement.

Specifications:

 Source accuracy DC mV 100.000mV ±(0.05%＋3), 1000.0mV ±(0.05%＋3)
 Resistance (Ω) 500.0Ω ±(0.05%+2), 5000Ω ±(0.05%+2)
 Thermocouples J -20~1200℃ (-328~2192℉) ±0.7℃
 K -200~1370℃ (-328~2498℉) ±1℃
 T -200~400℃ (-328~752℉) ±0.8℃
 E -200~950℃ (-328~1742℉) ±0.7℃
 R -20~1750℃ (-4~3182℉) ±1.4℃
 S -20~1750℃ (-4~3182℉) ±1.5℃
 B 600~1800℃ (1112~3272℉) ±1.4℃
 N -200~0~1300℃ (-328~2372℉) ±0.9℃
 Wre325 0~2000℃ (32~3632℉) ±1.8℃
 Wre526 0~2300℃ (32~4172℉) ±1.8℃
 RTDs Pt10 -200~850℃ (-328~1562℉) ±(0.5%+6℃)
 Pt100 ±(0.05%+0.6℃)
 Cu50 -50~150℃ (-58~302℉) ±(0.05%+0.6℃)
 Cu100 ±(0.05%+0.6℃)
 Power 9V battery (6F22)
 Display 63mm x 40mm
 Product color Red and grey
 Product size 96mm x 193mm x 47mm
 Standard accessories Test leads, battery
 Standard quantity per carton 5pcs
 Standard carton measurement 325mm x 225mm x 285mm
 Standard carton gross weight 4.5kg
