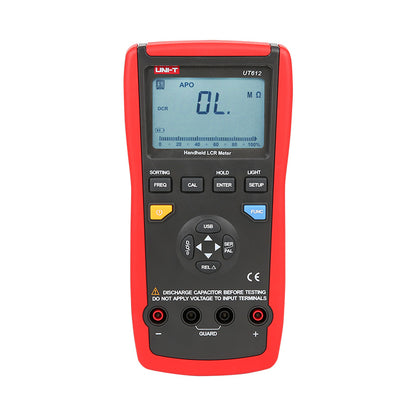

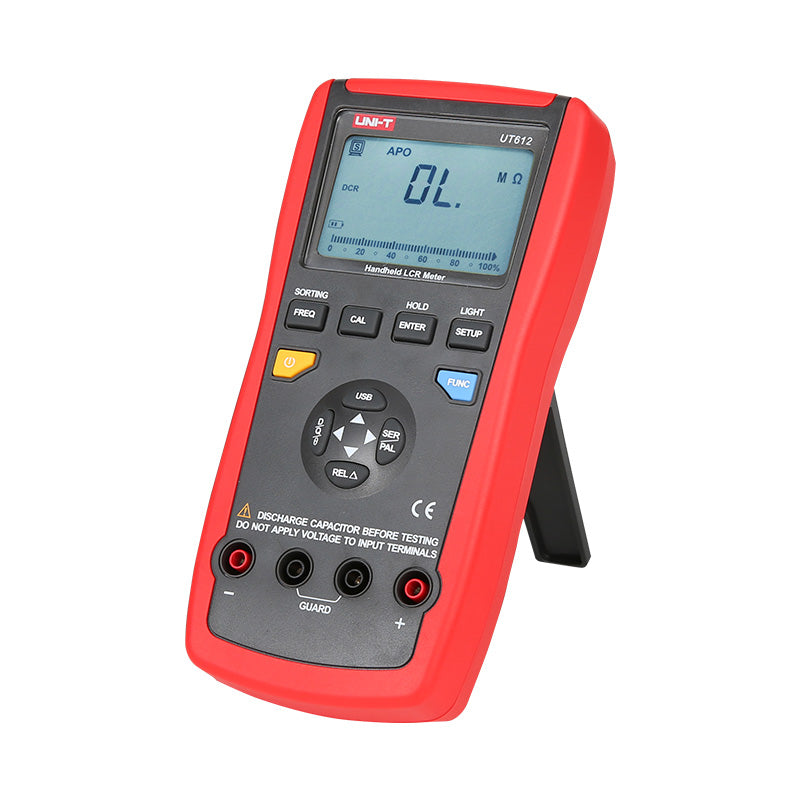

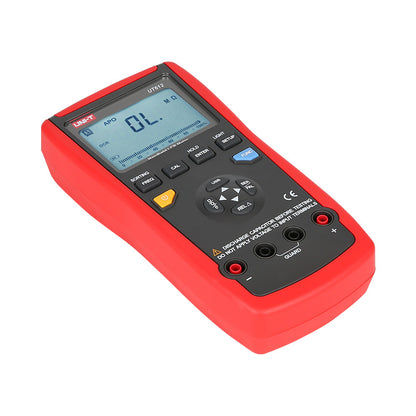

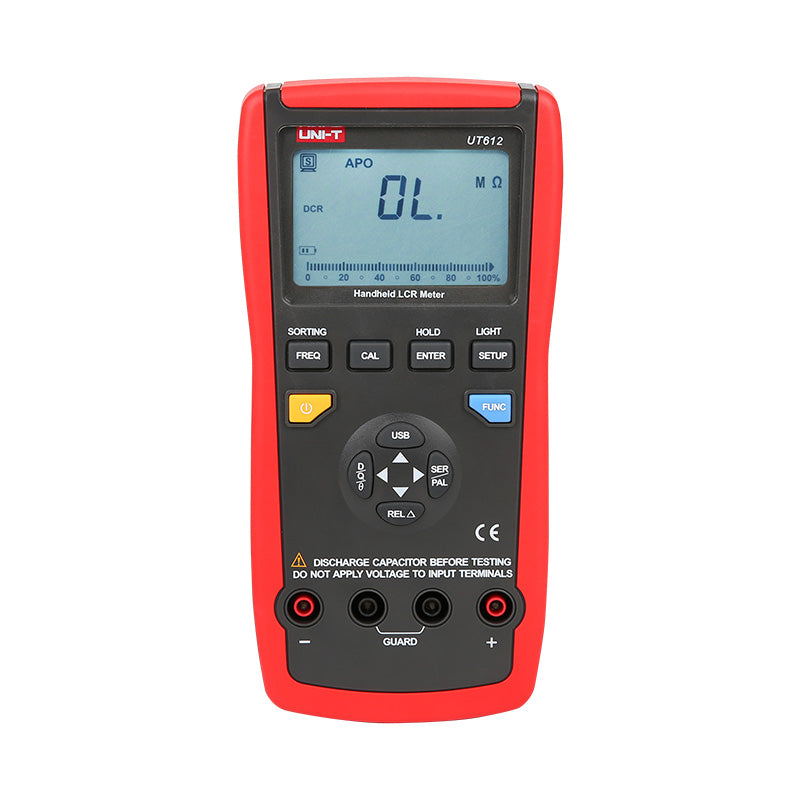

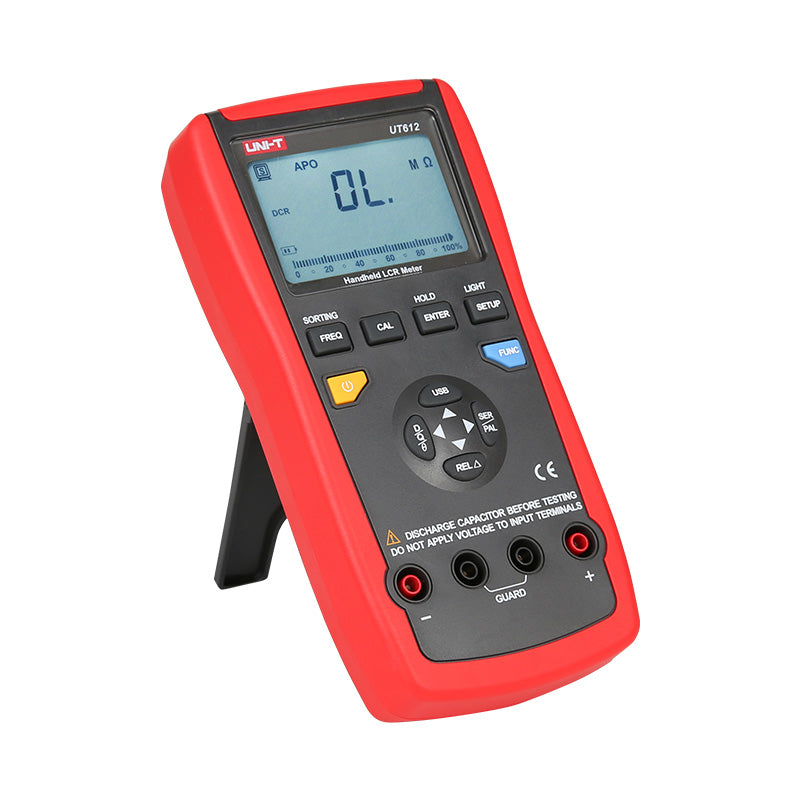

UT612 LCR Meter

UT612 LCR Meter

SKU: UT612   Download PDF

Qty:
Now $19,599.00   Web pricing policy
BEFORE   Now $19,599.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

UT612 LCR meter is used to measure inductance, capacitance and resistance Advanced features include series/parallel measurement modes, quality factor/loss/phase angle measurements, equivalent/DC resistance measurements and 5 selectable frequencies in AC mode UT612 can be used in production lines, component inspection and electronic maintenance.

Features and Benefits:

    •Auto power off.

    •Data hold.

    •Relative mode.

    •USB interface.

    •LCD backlight.

    •Deviation ratio measurement.

    •Comparison function.

    •Calibration function.

    •Output impedance: 120Ω.

    •Auto LCR check and measurement.

    •Low battery indication: ≤6.8V.

    •Capacitance measurement.

    •Inductance measurement.

Specifications:

 Inductance (H) 20uH~2000H ±(0.5%+5)
 Capacitance (F) 200pF~20mF ±(0.5%+5)
 Resistance (Ω) 20Ω~200MΩ ±(0.3%+5)
 Test frequency (Hz) 100Hz/120Hz/1kHz/10kHz/100kHz
 Operating voltage 0.6Vrms
 Test parameters L/C/R/DCR/Q/D/θ/ESR
 Display count 20000
 D/Q display count 2000
 D/Q resolution 0.001
 Measurement mode Series/Parallel
 Power 9V battery (6F22) or USB
 Display 40mm x 63mm
 Product color Red and grey
 Product size 96mm x 193mm x 47mm
