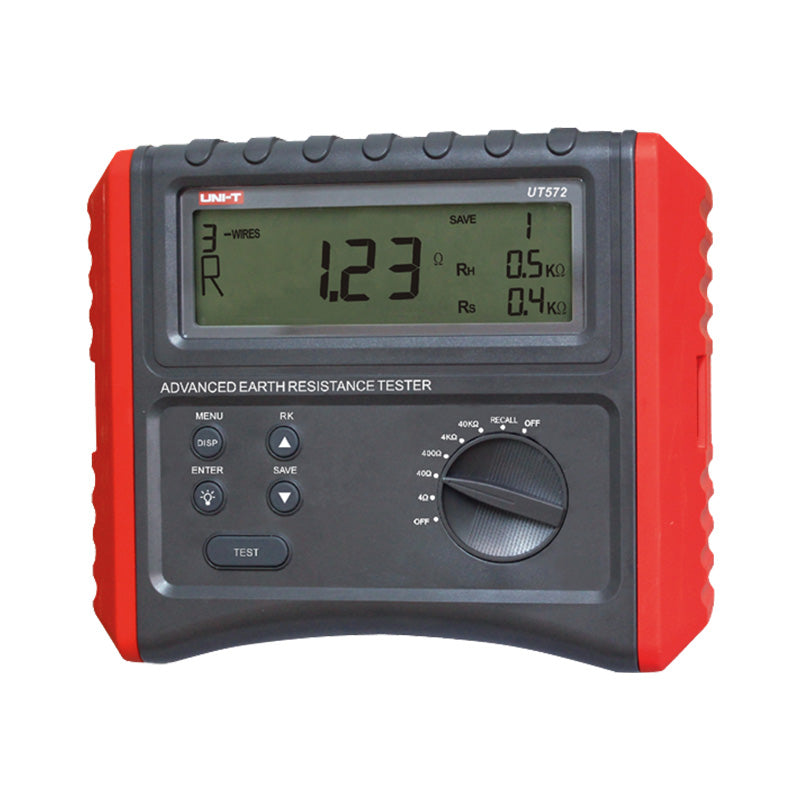

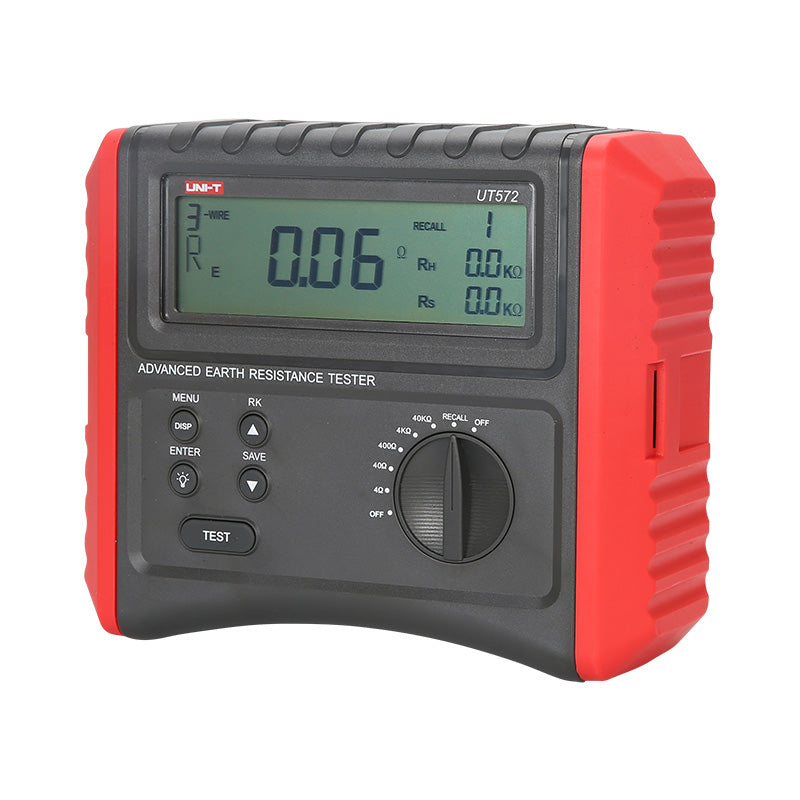

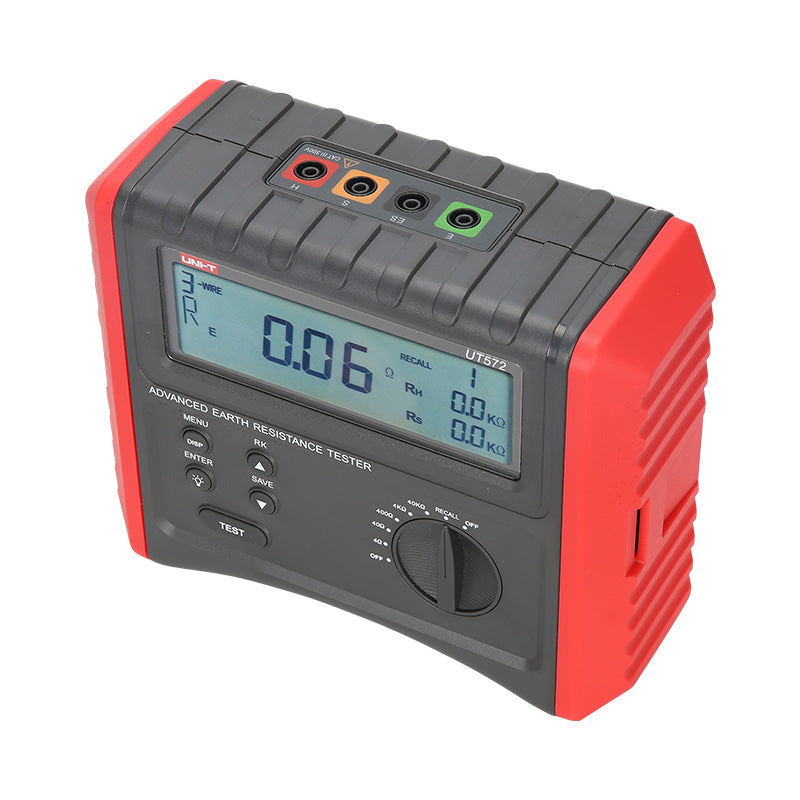

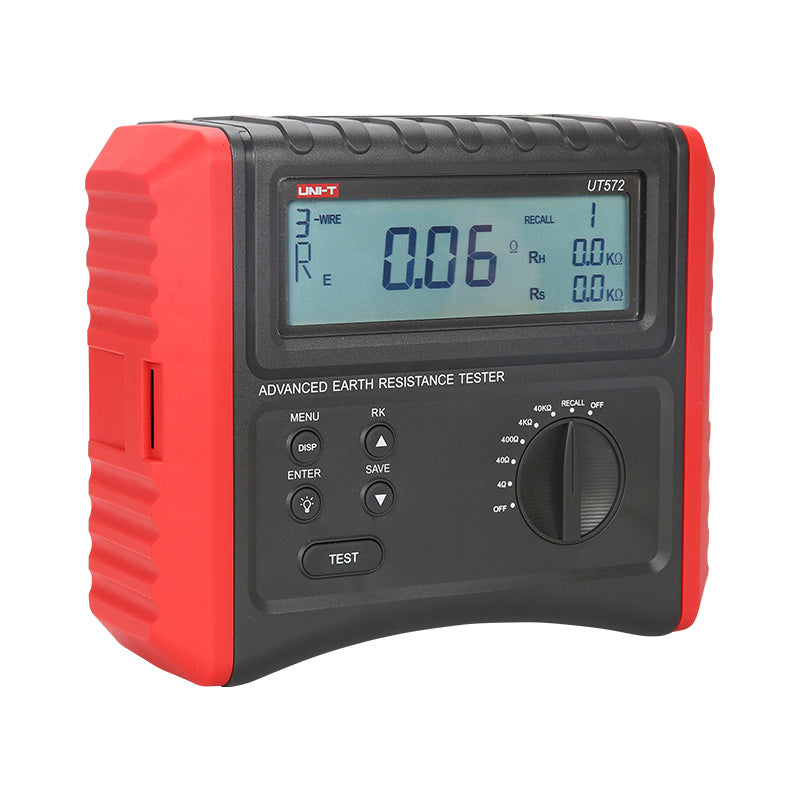

UT572 Advanced Earth Resistance Tester

UT572 Advanced Earth Resistance Tester

SKU: UT572   Download PDF

Qty:
Now $65,099.00   Web pricing policy
BEFORE   Now $65,099.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

UT572 is for measuring earth resistance and soil resistivity It can automatically check interface connection and detect interference voltage/frequency, with data hold and indication functions It can perform 2/3/4-wire measurements for different on-site applications, such as power equipment wiring and lightning protection equipment Certifications: CE, UKCA Large 4-digit LCD Display, 5s sampling time.

2/3/4-wire earth resistance and soil resistivity measurements Selectable test frequencies (94Hz/128Hz) Disturbance voltage (Ust) and frequency (Fst) measurement Earth resistance, RH, and RS measurements LCD backlight; auto power off Data hold 20 sets of data storage Double insulation Compensating resistance RK measurement.

Features and Benefits:

    •Large 4-digit LCD Display, 5s sampling time.

    •2/3/4-wire earth resistance and soil resistivity measurements.

    •Selectable test frequencies (94Hz/128Hz).

    •Disturbance voltage (Ust) and frequency (Fst) measurement.

    •Earth resistance, RH and RS measurements.

    •LCD backlight; auto power off.

    •Data hold.

    •20 sets of data storage.

    •Double insulation.

    •Compensating resistance RK measurement.

    •Measuring earth resistance and soil resistivity for power equipment wiring and lightning protection equipment..

Specifications:

 Earth resistance (Re) 4Ω ±(3%+15)
 Earth resistance (Re) 40Ω ±(3%+5)
 Earth resistance (Re) 400Ω
 Earth resistance (Re) 4kΩ
 Earth resistance (Re) 40kΩ
 Soil resistivity (ρ) 4Ω ρ=2×π×L×Re (Depending on the test result of Re)
 Disturbance voltage (Ust) 50V (DC voltage/40Hz~500Hz) ±(3%+3)
 Disturbance frequency (Fst) 40Hz~500Hz ±(1%+2)

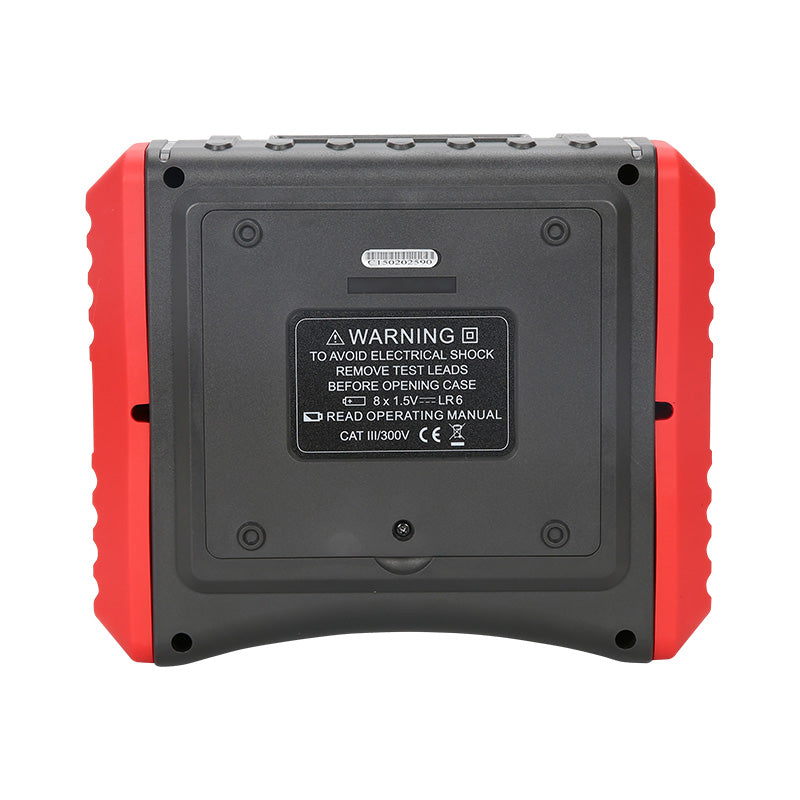

 Power 1.5V battery (LR6) x 8
 Display 125mm x 37mm
 Product color Red and grey
 Product net weight 1100g
 Product size 210mm x 175mm x 90mm
 Standard accessories Batteries, simple test leads with alligator clips(double plugs x 1, single plug x 1), earth spike x 4, standard test leads with alligator clips (40m red x 1, 20m red x 1, 20m black x 1, 10m yellow x 1, 5m green x 1), gallus
 Standard individual packing Gift box, carrying bag, tool box, English manual
