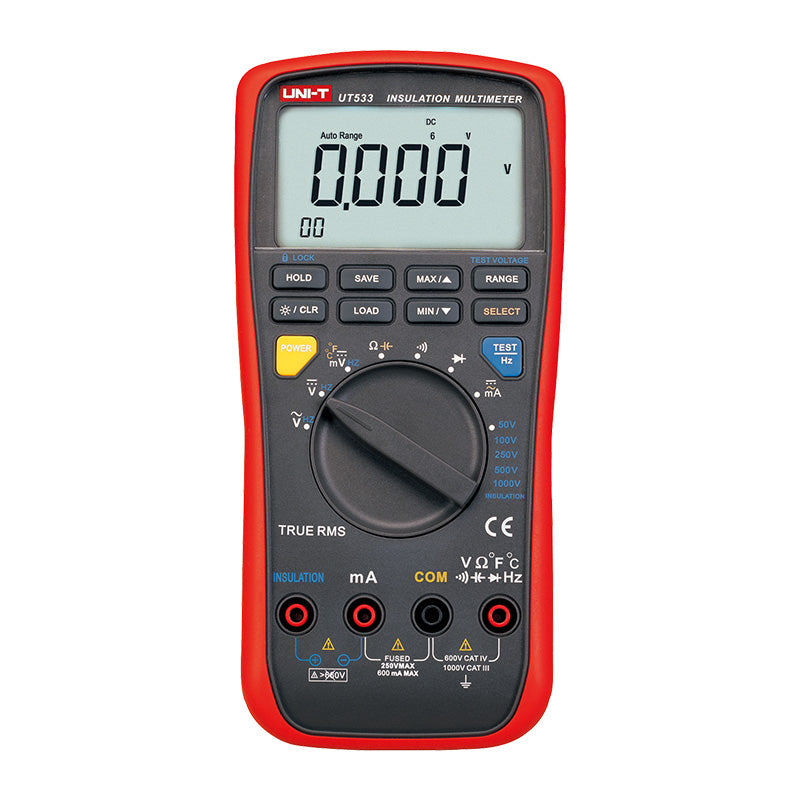

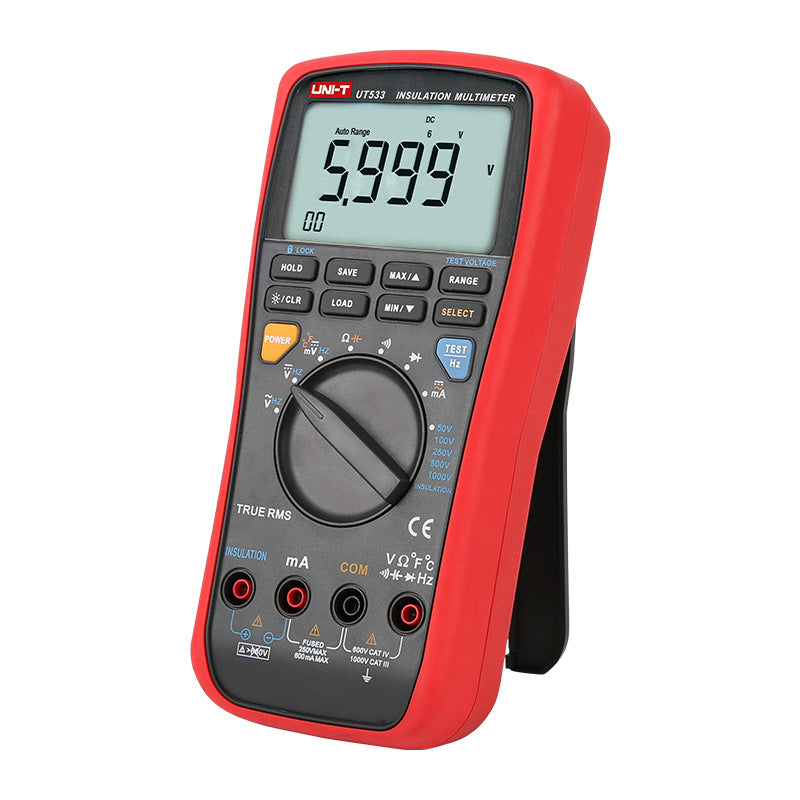

UT533 Insulation Multimeter

UT533 Insulation Multimeter

SKU: UT533   Download PDF

Qty:
Now $27,299.00   Web pricing policy
BEFORE   Now $27,299.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

UT533 insulation multimeter is a fully functional digital multimeter and digital insulation tester with RMS, widely used in industrial, laboratory, home and other Applications It features AC and DC voltage, AC and DC current, resistance, capacitance, frequency and temperature, and also has 1000V testing voltage insulation resistance measurement function.

Features and Benefits:

    •AC/DC voltage measurement.

    •AC/DC current measurement.

    •Insulation resistance measurement.

    •Resistance & Capacity test.

    •Frequency & Temperature test.

    •1000V output voltage.

    •Double insulation design.

Specifications:

 Insulation resistance 0.1MΩ~2GΩ ±(5%+5)
 Output voltage 50~1000V
 AC voltage (V) 6V~1000V ±(2%+3)
 DC voltage (V) 6mV~1000V ±(0.3%+4)
 AC Current 60mA ~600mA ±(1.5%+2)
 DC Current 60mA ~600mA ±(1.0%+2)
 Resistance (Ω) 600Ω~40MΩ ±(1.5%+3)
 Capacitance (F) 10nF~100uF ±(3%+5)
 Frequency (Hz) 60Hz~1MHz ±(0.1%+3)
 Temperature(℃) -40℃ ~ 537℃ ±(1%+10)
 Display count 5999
 Diode & Continuity √
 Dual display √
 Auto/Manual range √
 Backlight √
 MAX/MIN √
 Low battery indication √
 Auto power off √
 Data hold √
 Category ratings CAT III 1000V, CAT IV 600V
 Certificates CE/RoHS
 Power 1.5V LR6 * 6
 Display 81 * 46mm
 Product size 96.7 * 202.8 * 46mm
