UT526 Multifunction Electrical Meter

UT526 Multifunction Electrical Meter

SKU: UT526   Download PDF

Qty:
Now $25,099.00   Web pricing policy
BEFORE   Now $25,099.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

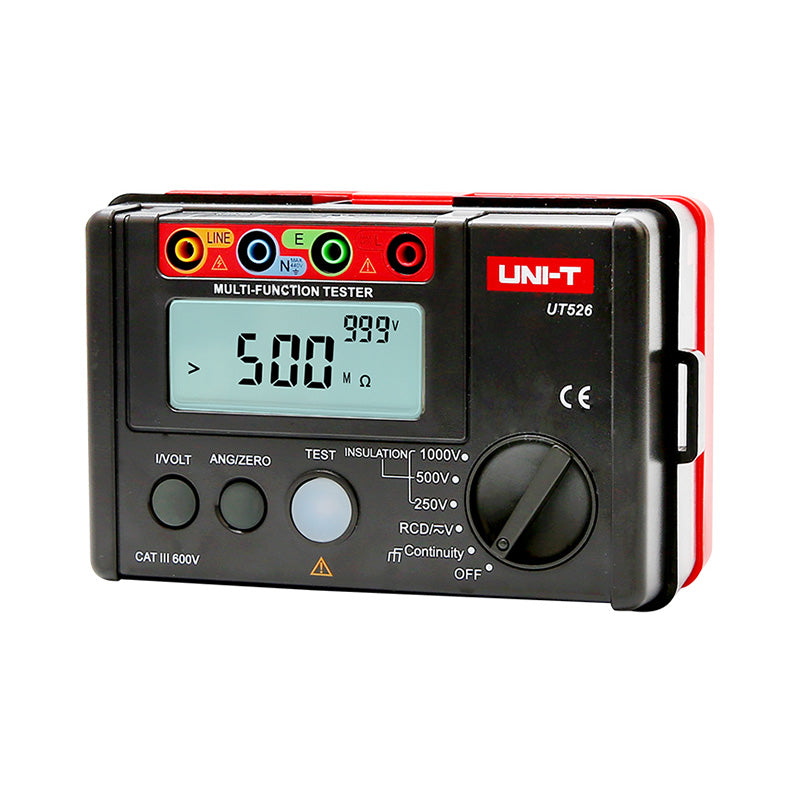

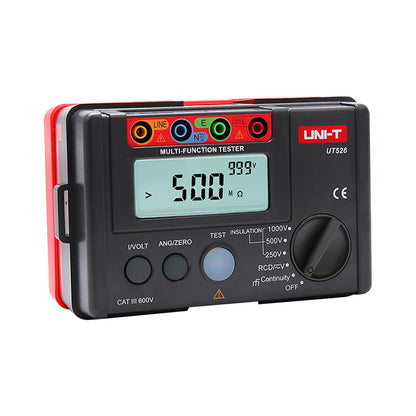

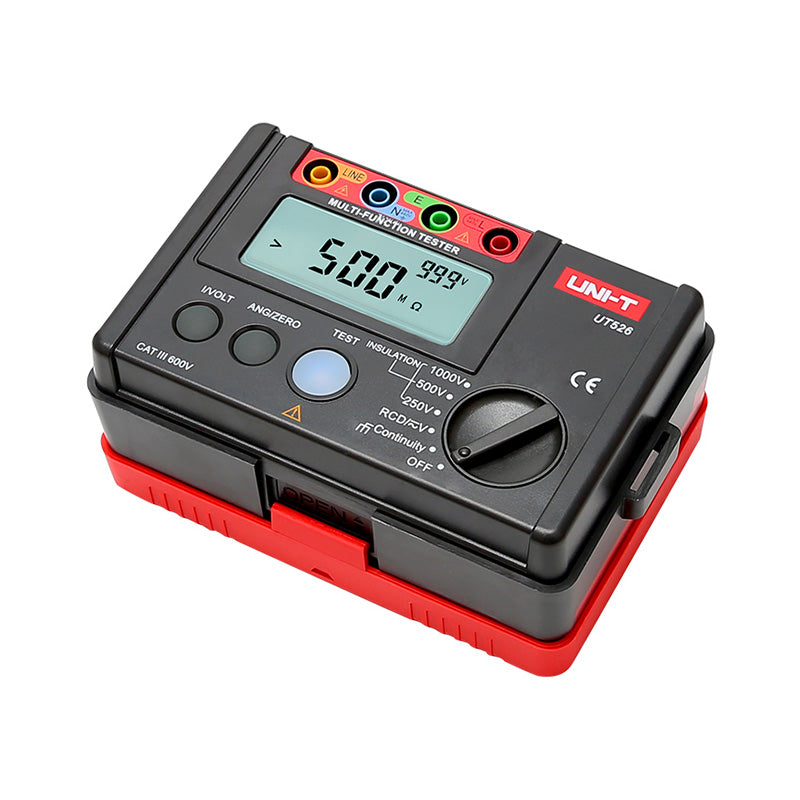

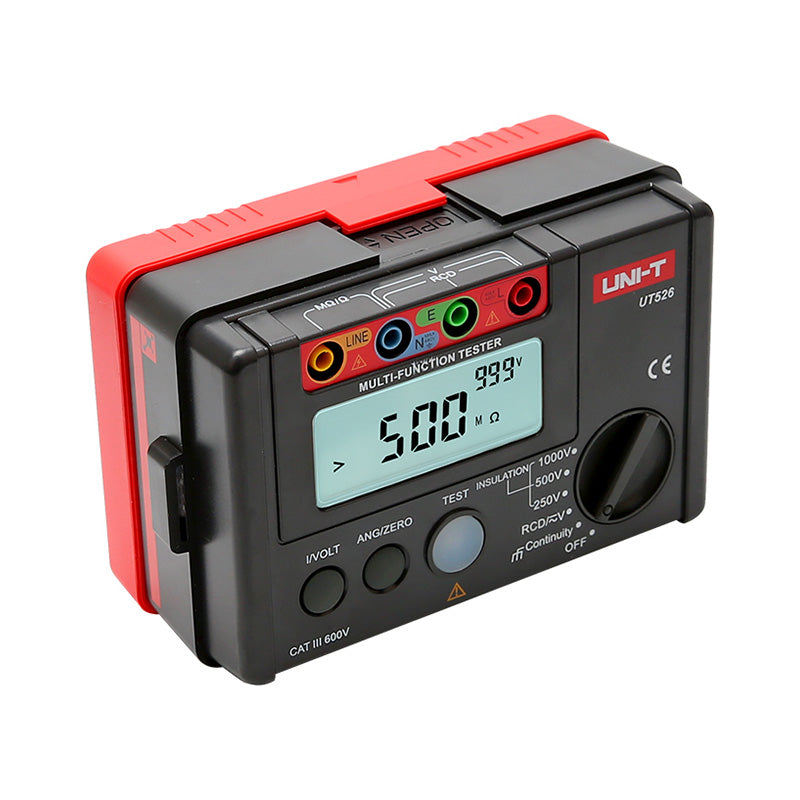

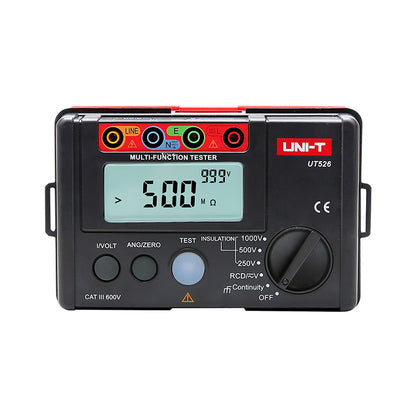

UT526 is a multifunctional electrical installation tester It can be used to test insulation resistance, RCD status, low resistance continuity, and voltage measurements UT526 can be used to test power distribution system, lightning protection system and wiring systems to ensure safe operations The device features a display count of 10000, manual range, phase switch for RCD at 0° and 180°, low battery indication, auto AC/DC voltage identification, and red warning lights.

It is designed for versatility in electrical testing applications, ensuring safety and reliability.

Features and Benefits:

    •Display count of 10000.

    •Manual range capability.

    •Phase switch for RCD at 0° and 180°.

    •Low battery indication feature.

    •Auto AC/DC voltage identification.

    •Red warning lights for alerts.

Specifications:

 Test voltages (250V/500V/1000V) ±10%
 Insulation resistance range (Ω) 0.05MΩ~500MΩ
 Load current at 250V 1mA
 Short circuit current <2mA
 Operating voltage (Freq.) 220V (45Hz~65Hz) ±10%
 Test current options 10mA/30mA/100mA/300mA
 Trip time 0ms~2000ms
 Low resistance continuity range 0Ω~2000Ω
 Voltage measurement DC 0~440V
 Voltage measurement AC 0~440V
 Power source 1.5V battery (LR6) x 6
 Display dimensions 71mm x 34mm
 Product color Red and grey
 Product dimensions 160mm x 100mm x 71mm
