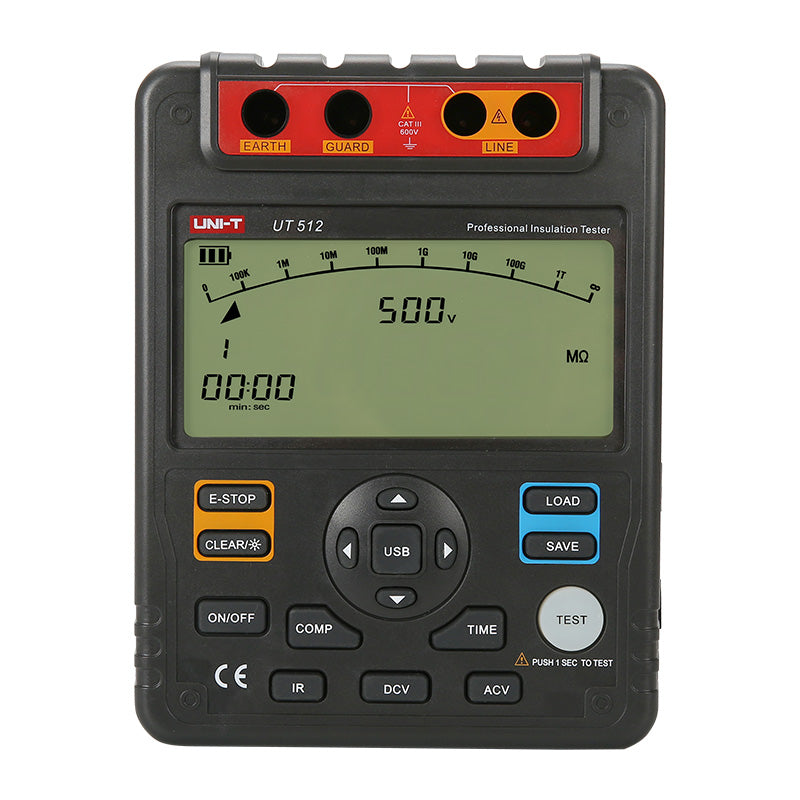

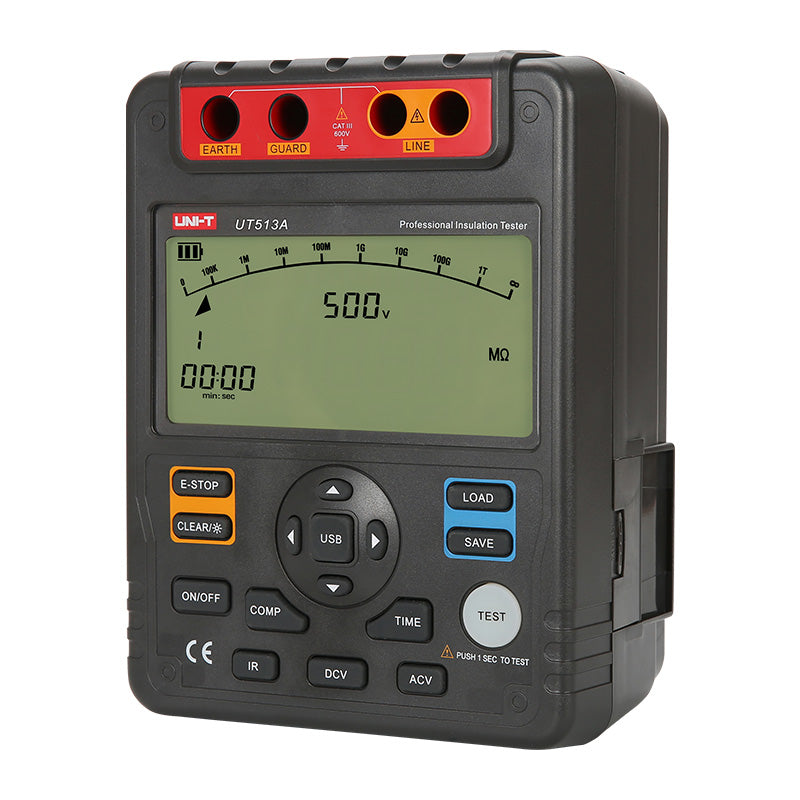

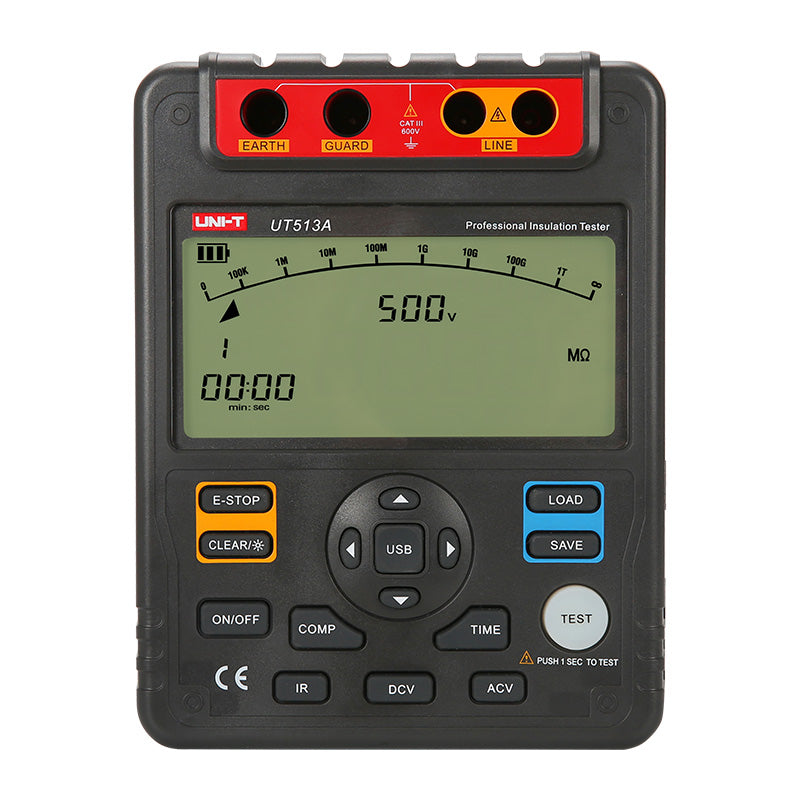

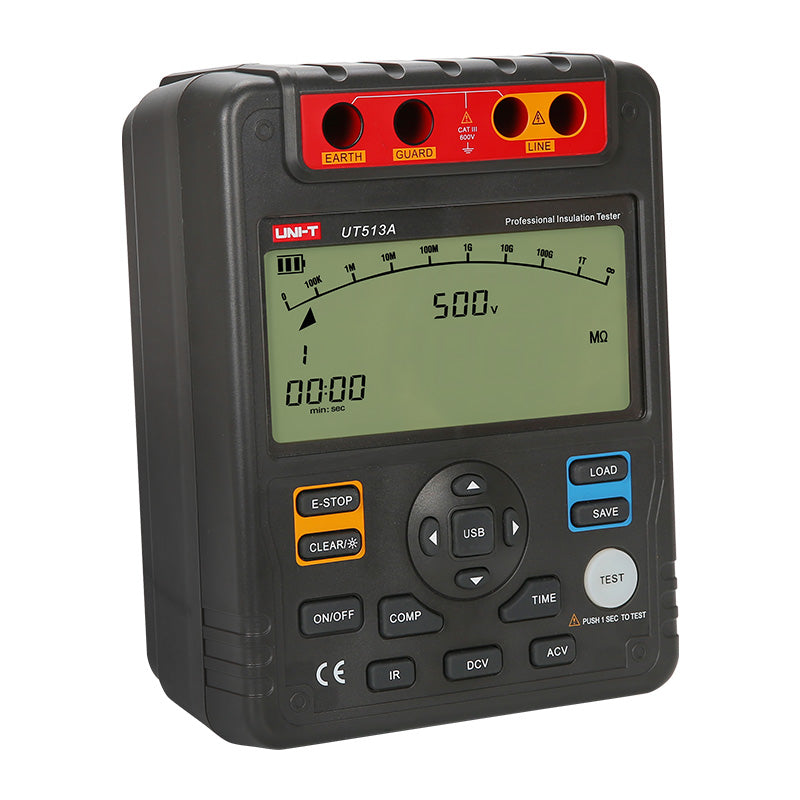

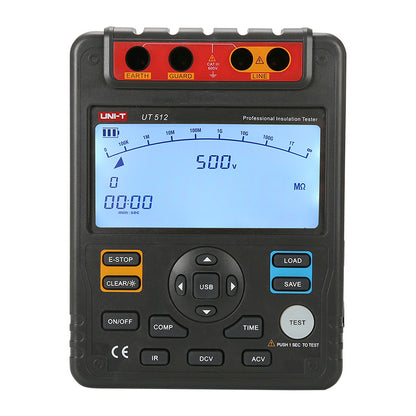

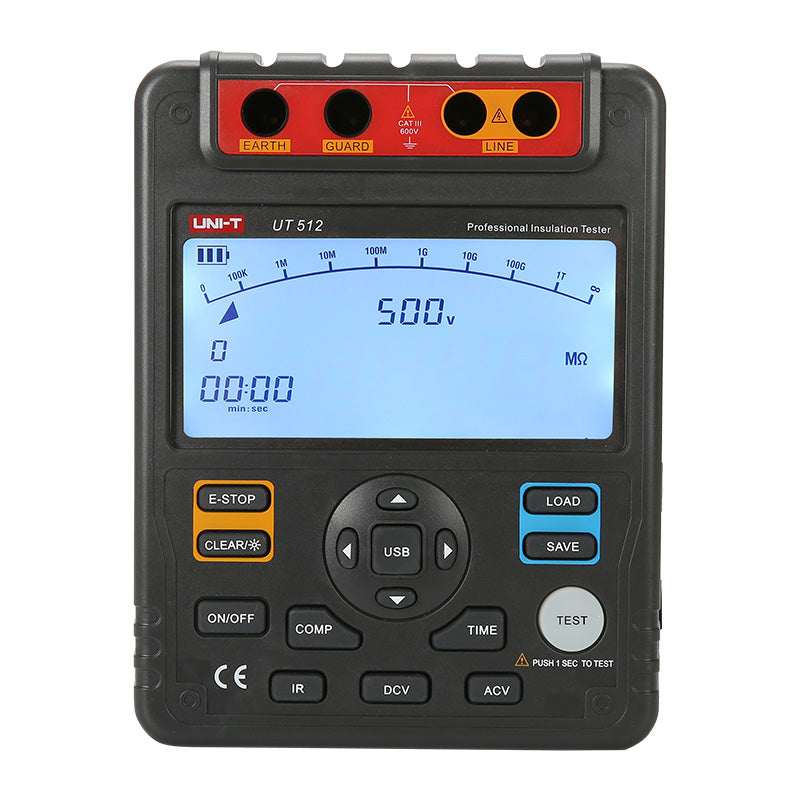

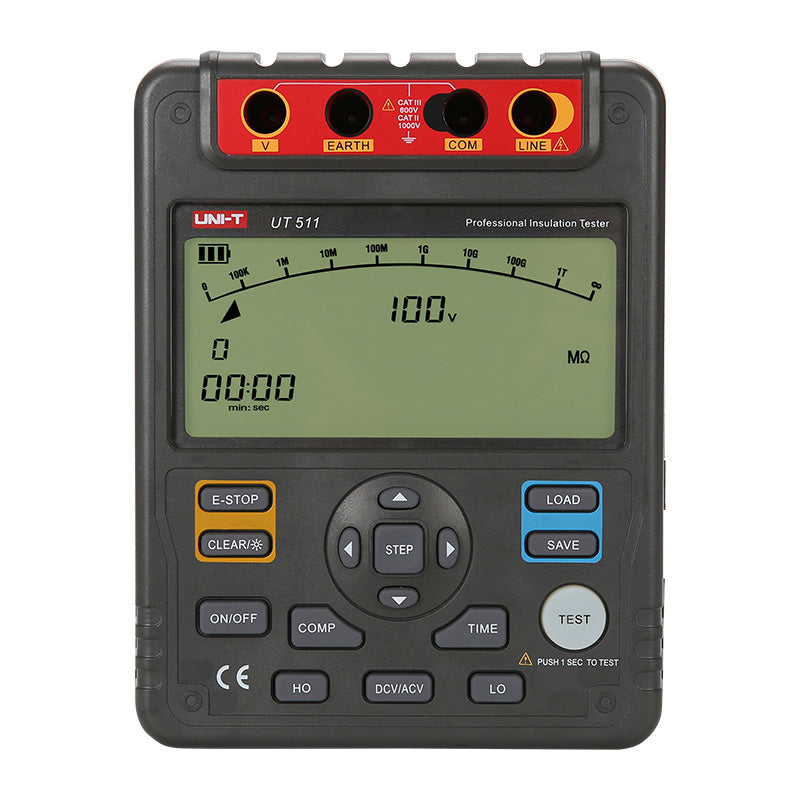

UT510 - Insulation Resistance Testers

UT510 - Insulation Resistance Testers

SKU: UT51 Download PDF

Now $3,399.00
BEFORE   Now $3,399.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The UT510 series insulation resistance testers are engineered for measuring insulation resistance in large transformers, generators, high-voltage motors, and other applications This series offers functionalities such as PI and DAR measurements, providing comprehensive data analysis through PC software The UT513A model can generate test voltage of up to 5kV, establishing it as a versatile tool in electrical testing.

Features and Benefits:

    •Large 9999 display with 30-segment analog bar graph.

    •PI/DAR measurements.

    •Comparison, upper and lower limit functions.

    •Continuous measurement mode.

    •Auto power off feature.

    •18-group data storage capability.

    •Backlight for easier reading.

    •Auto current discharge and high-voltage output alarm.

    •Time measurement mode allowing auto measurement within 15 minutes.

    •Indications for low battery and over range.

    •Measurement of insulation resistance in large transformers.

    •Generators.

    •High-voltage motors.

Specifications:

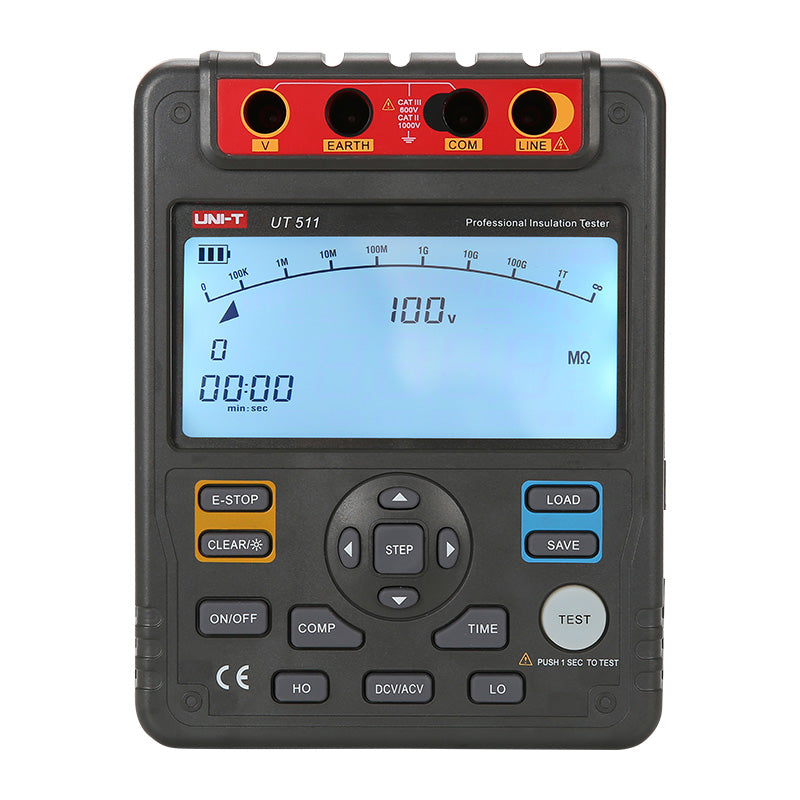

 Test Voltage Range UT511 100V~1000V
 Test Voltage Range UT512 500V~2500V
 Test Voltage Range UT513A 500V~5000V
 Insulation Resistance Range UT511 0.1MΩ~500MΩ
 Insulation Resistance Range UT512 0.5MΩ~2GΩ
 Insulation Resistance Range UT513A 0.5MΩ~20GΩ
 Display Dimensions 123mm x 58mm
 Product Color Red and grey
 Product Size 202mm x 155mm x 94mm
 Power Source 1.5V battery (LR14) x 8
 Data Storage 18 groups
 Analog Bar Graph 30 segments
 Low Resistance Measurement Range 0.1Ω~999.9Ω
