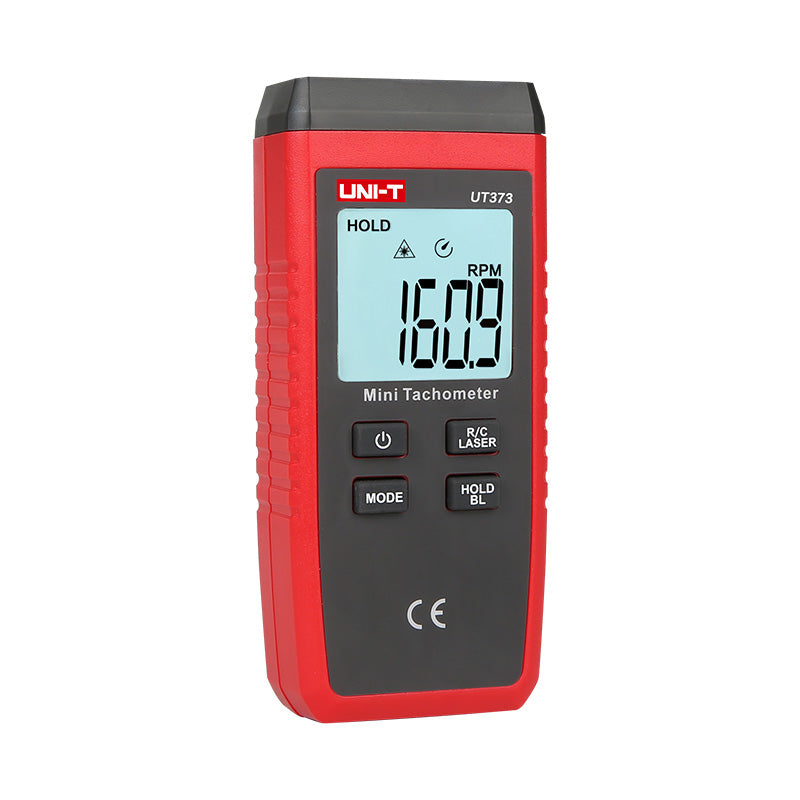

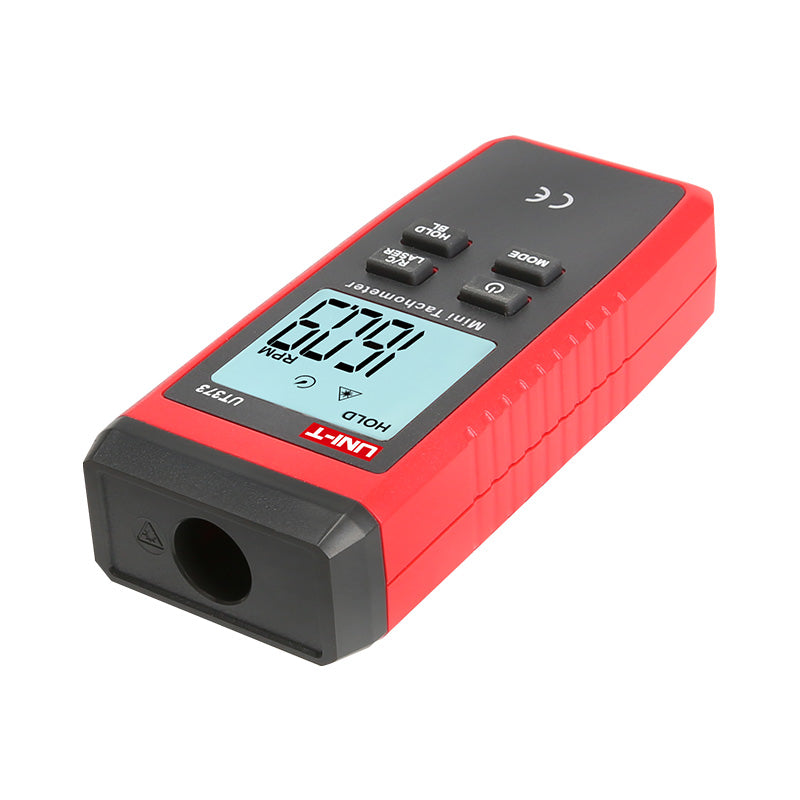

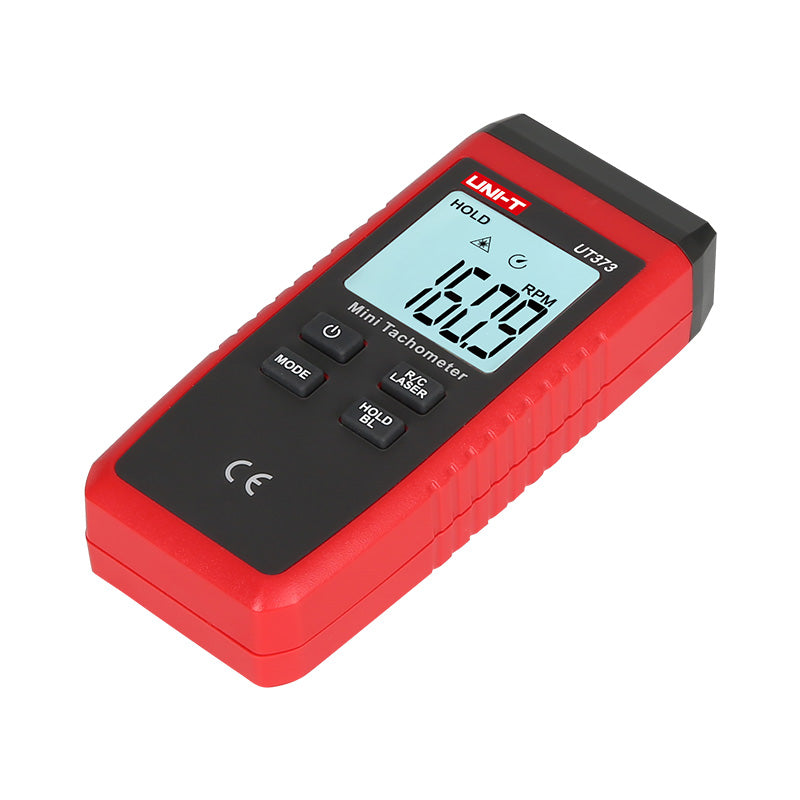

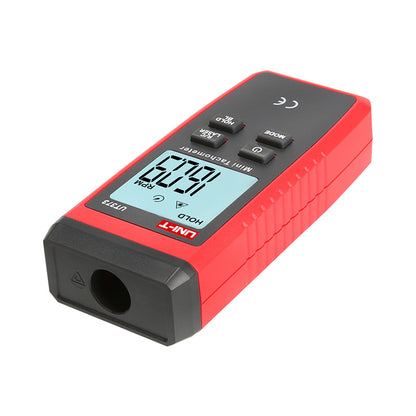

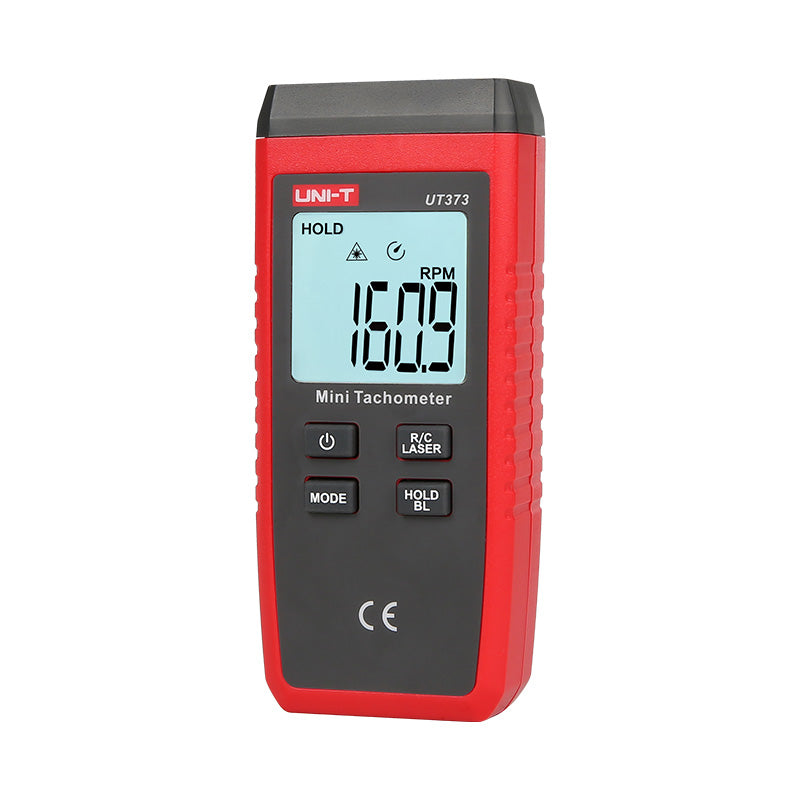

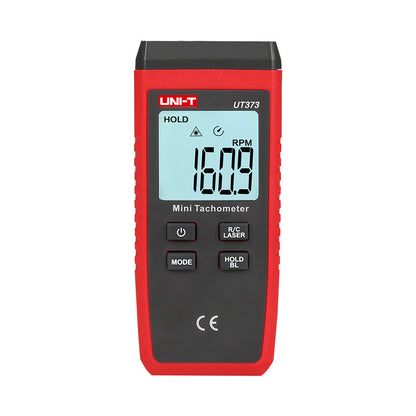

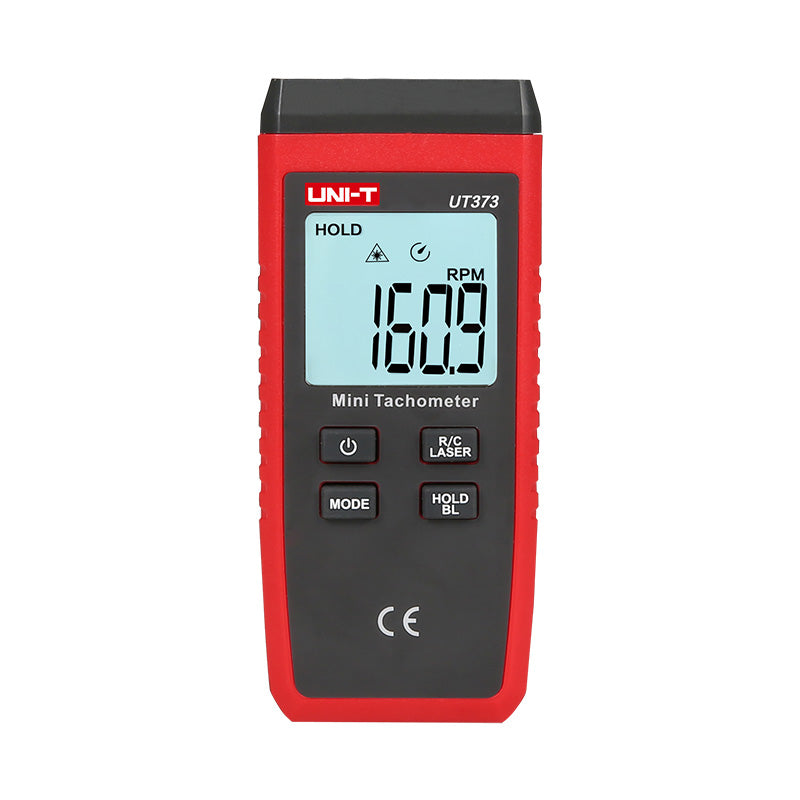

UT373 Mini Tachometer

UT373 Mini Tachometer

SKU: UT373 Download PDF

Now $2,899.00
BEFORE   Now $2,899.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

UT373 is a reliable digital non-contact tachometer used to measure rotation speed of motors and other machines This device is able to display results in RPM or revolution count UT373 is able to safely measure rotational objects through a non-intrusive method.

Features and Benefits:

    •Auto range.

    •Up to 99999 display; overload display, 'OL'.

    •RPM measurement and revolution count.

    •Max/Min, data hold.

    •Signal trigger/laser-on indication.

    •Low battery/auto power off indication.

    •LCD backlight.

Specifications:

 Range RPM measurement 10.0~9999.9RPM
 Resolution 0.1
 Accuracy ±(0.04%+2)
 Counting measurement 0~99999 counts
 Counting resolution 1
 Counting accuracy ±1
 Sensor type Photodiode and laser tube
 Target distance 50mm~200mm
 Measuring angle ±30° from perpendicular
 Drop test 1m

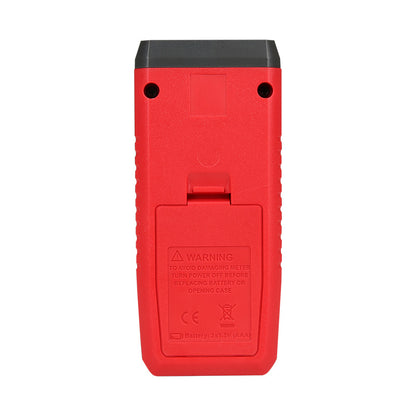

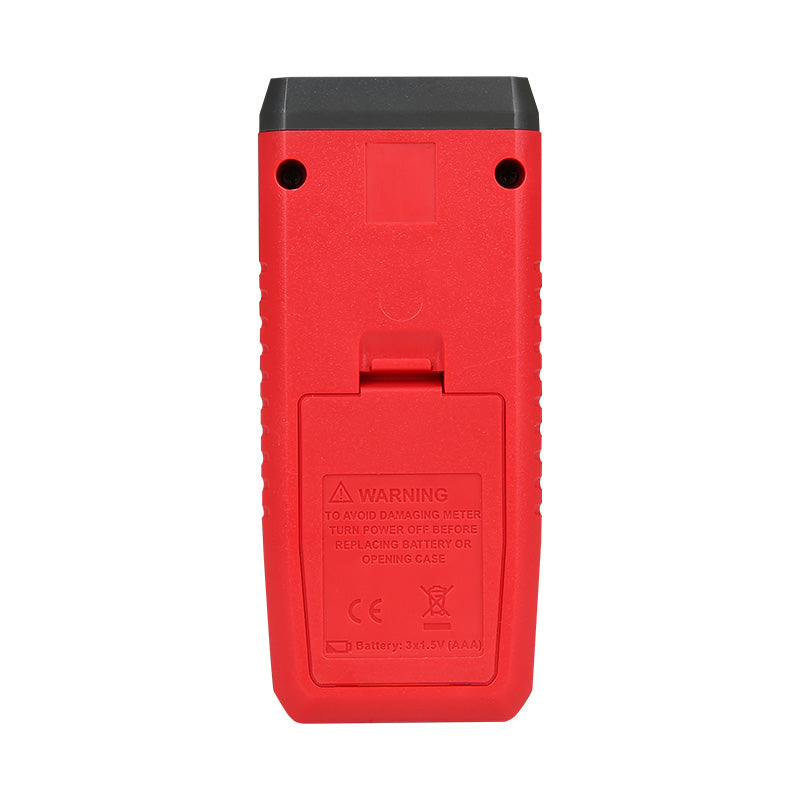

 Power 1.5V battery (R03) x 3
 Display 5-digit segment code; 99999 max display
 Product color Red and grey
 Product net weight 85g (excluding battery)
 Product size 183.8mm x 56mm x 34mm
 Standard quantity per carton 20pcs
 Standard carton measurement 272mm x 225mm x 220mm
 Standard carton gross weight 3kg
