UT268B Wireless Large Current Fork Meter

UT268B Wireless Large Current Fork Meter

SKU: UT268B   Download PDF

Qty:
Now $61,799.00   Web pricing policy
BEFORE   Now $61,799.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

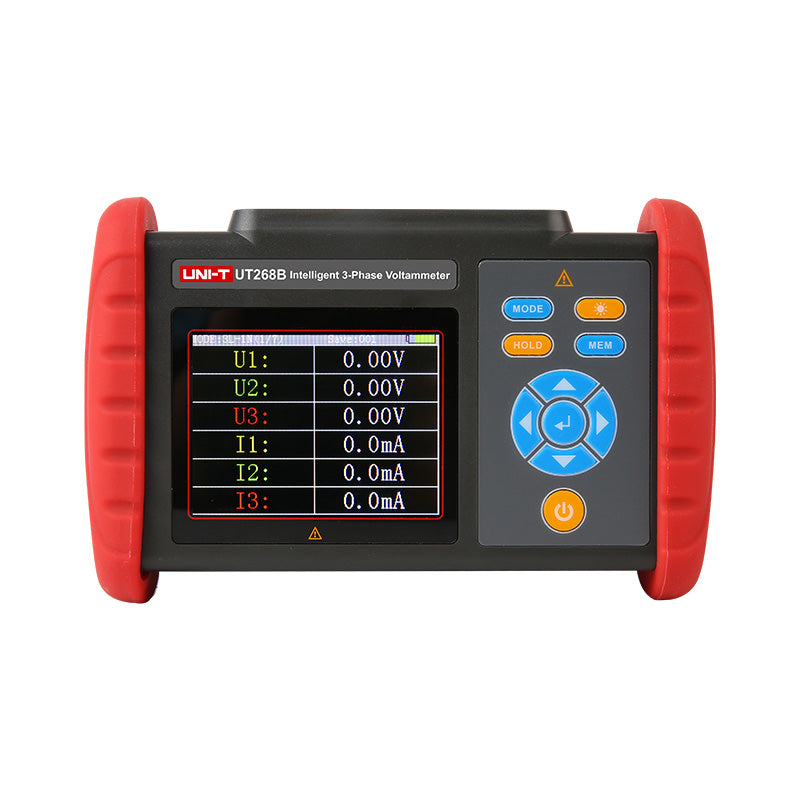

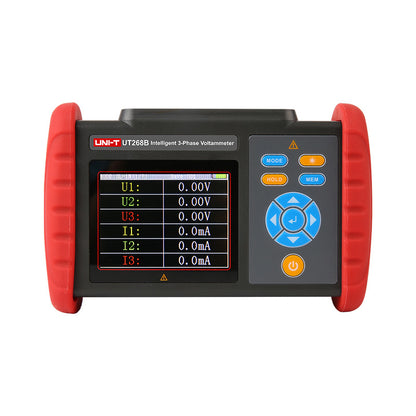

The Digital 3-Phase Voltammeter, part of the clamp meter series, is a high-precision, intelligent, and multifunctional industrial-frequency measurement instrument It uses the latest microprocessor and digital signal processing technology to measure various parameters including voltage, current, power, frequency, power factor, and phase relation It can identify transformer connections, test inductive and capacitive circuits, and check electric energy meter wiring.

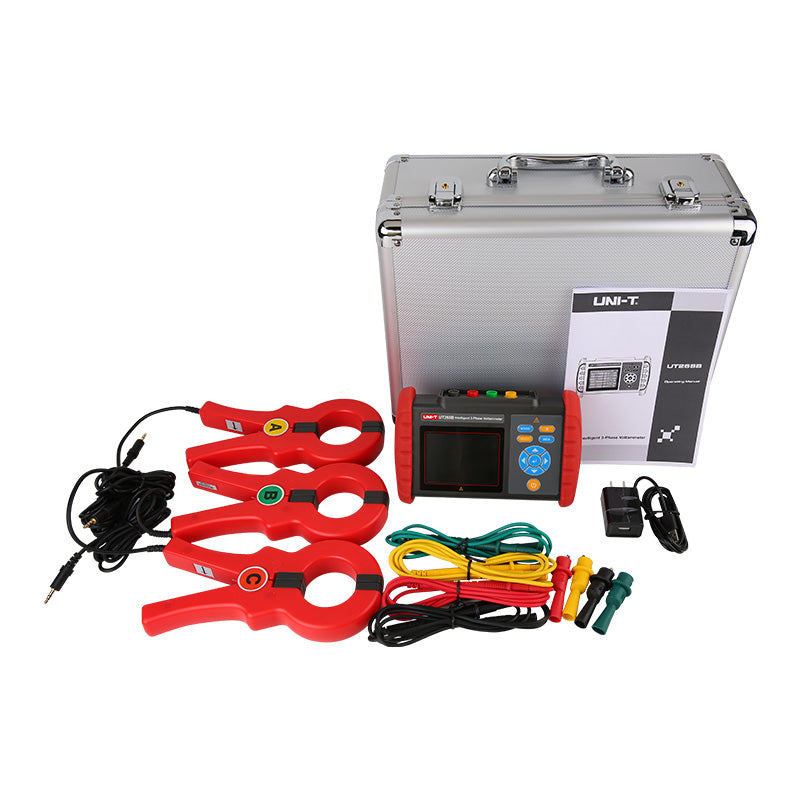

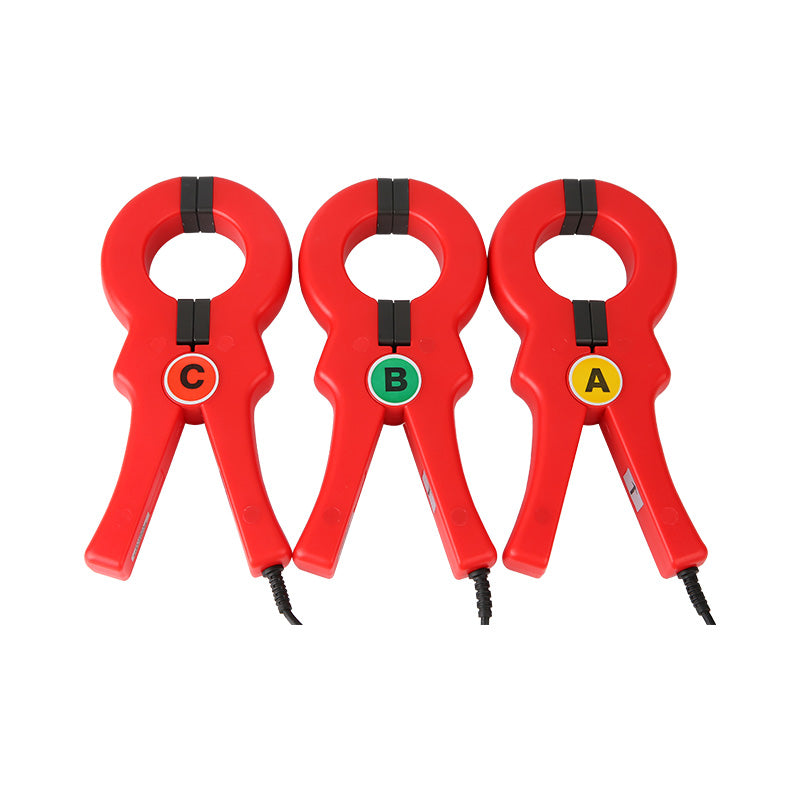

With a clamp current transformer, it can safely and accurately measure power without disconnecting from the conductor, making it portable.

Features and Benefits:

    •Large LCD screen.

    •Large Jaw size: up to φ50mm.

    •Multi-function: 3-phase voltage, current, phase, frequency and power.

    •Auto power off.

    •Data hold.

    •Built-in rechargeable lithium battery.

    •Data storage: 500 set.

Specifications:

 AC Voltage 0.00V～600V ±(1.5%rdg+3dgt)
 AC Current 0.0mA～1000A ±(1.5%rdg+3dgt)
 Phase range 0.0°~360.0° ±1°
 Active power 0.0W～600kW ±(3%rdg+3dgt)
 Reactive power 0.0VAR～600kVAR ±(3%rdg+3dgt)
 Apparent power 0.0VA～600kVA ±(3%rdg+3dgt)
 Frequency 45HZ～65HZ ±0.1Hz
 Power factor -1~+1 ±0.03
 Power supply DC3.7V large capacity rechargeable lithium battery
 Product dimension 187*191*51mm
 Working temperature -10°C~40°C; <80%RH
 Storage temperature -10°C~60°C; <70%RH
 Withstand voltage Apply 1000V/50Hz sinusoidal AC voltage between voltammeter circuit and casing for one minute.
 Structure Double-insulated
 Applicable Safety regulations IEC61010-1 CAT III 600V, IEC61010-031, IEC61326, Pollution Class 2
 Product color Red+Black
