UT255E Wireless High Low Voltage Hook Ammeter
UT255E Wireless High Low Voltage Hook Ammeter
SKU: SKU: UT255E
Couldn't load pickup availability
Description:

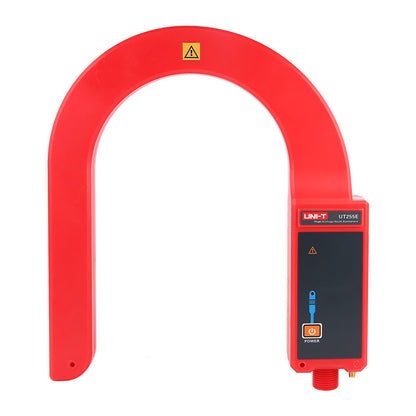

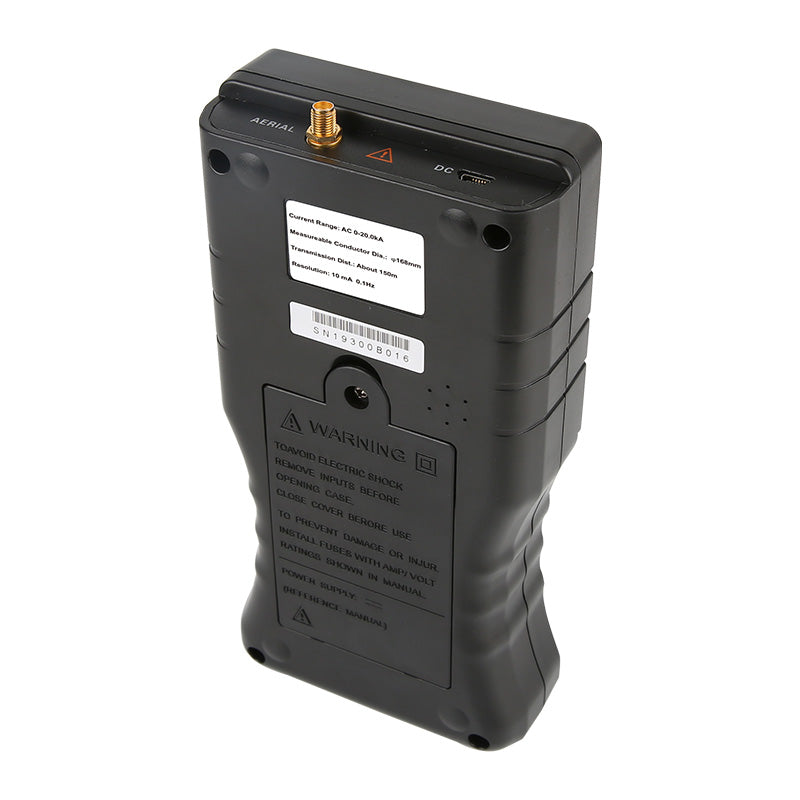

The UT255E Wireless High Low Voltage Hook Ammeter is designed with a hook detector, wireless receiver, and telescopic insulating rod When using the telescopic insulating rods, it can assess leakage current, current, frequency, load, and other metrics for bare conductors, bus bars below 35kV, or cables with safety insulation sheaths below 110kV The hook detector features a built-in double-layer flexible coil, making it lightweight and precise with a wide range and good linearity, ideal for testing transformer loads and inspecting leakage currents in multi-core thick cables, whether underground or outdoors.
Features and Benefits:
•0～20000A AC current measurement.
•Measurable busbar: Ф168mmx245mm.
•Measurable wire & cable: Max. Ф168mm.
•Wireless transmission distance: 150 meters.
•Frequency: 45Hz～75Hz.
•Data storage: 9999 set.
•3.5 inch true color LCD.
•Effort-saving hook detector.
•Built-in double-layer flexible coil.
•Sampling rate: 2 times/sec.
•High/low voltage leakage current measurement.
•Current and frequency testing.
•Grounding current tests of transformers.
•Leakage current tests for multicore cables.
Specifications:
| AC current (Auto range) | 0～99.9A;10mA ;±2%±5dgt, 100A～6000A; 10mA; ±3%±5dgt, 6.00kA～20.0kA; 10mA; ±4%±5dgt |
| Frequency | 45Hz～75Hz; 0.1Hz; ±1Hz (50/60Hz, auto) |
| Accuracy guaranteed temperature and humidity | 23℃±5℃, below 80%RH |
| Transmission mode | 433MHz wireless transmission |
| On-line voltage | Bare conductor: <35kV, Sheath-insulated cable: <110kV |
| Sample rate | 2 times/sec |
| Screen | 3.5 inch true color LCD; Backlight brightness adjustable |
| Data | 9999 set of data can be stored |
| Power | Lithium battery (with USB charging port) |
| Weight of hook detector | 496g (including battery) |
| Weight of receiver | 395g (including battery) |
| Weight of insulation rod | 1.45kg |
| Insulation strength | Insulation rod: AC 110kV/rms, Detector: 2000V/rms, Receiver: 2000V/rms |
| Operating temperature and humidity | -10℃～40℃; below 80%Rh |
| Storage temperature and humidity | -10℃～60℃; below 70%Rh |
