Home / UT202BT/UT202T Smart AC Clamp Meters
1 6

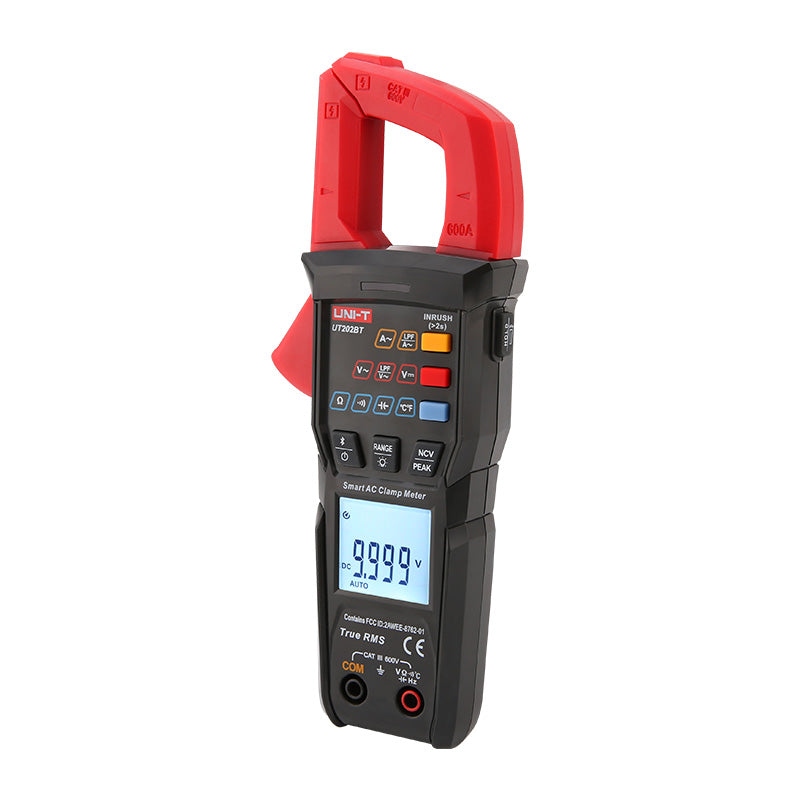

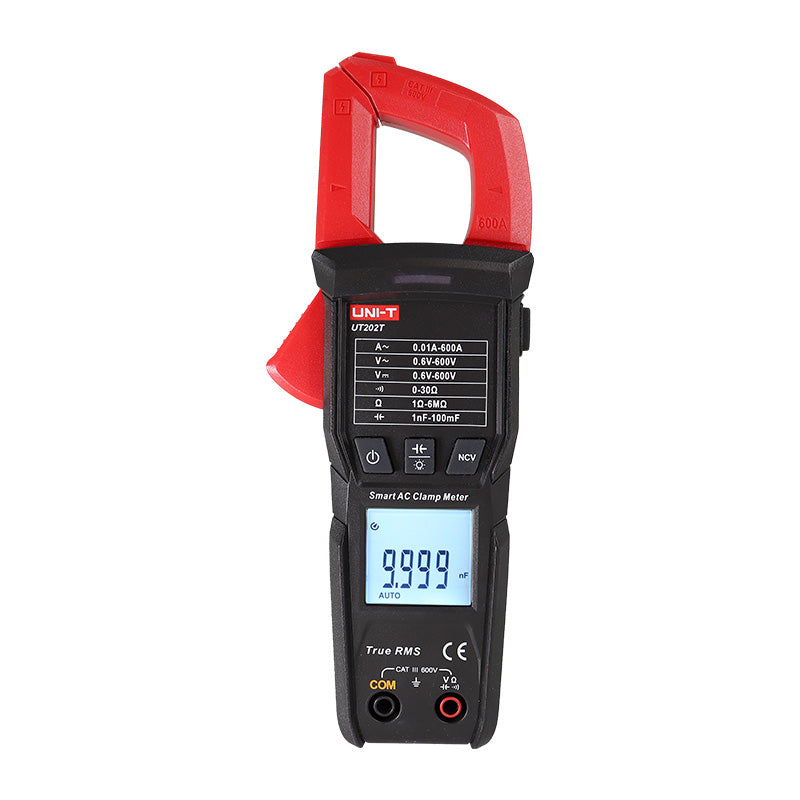

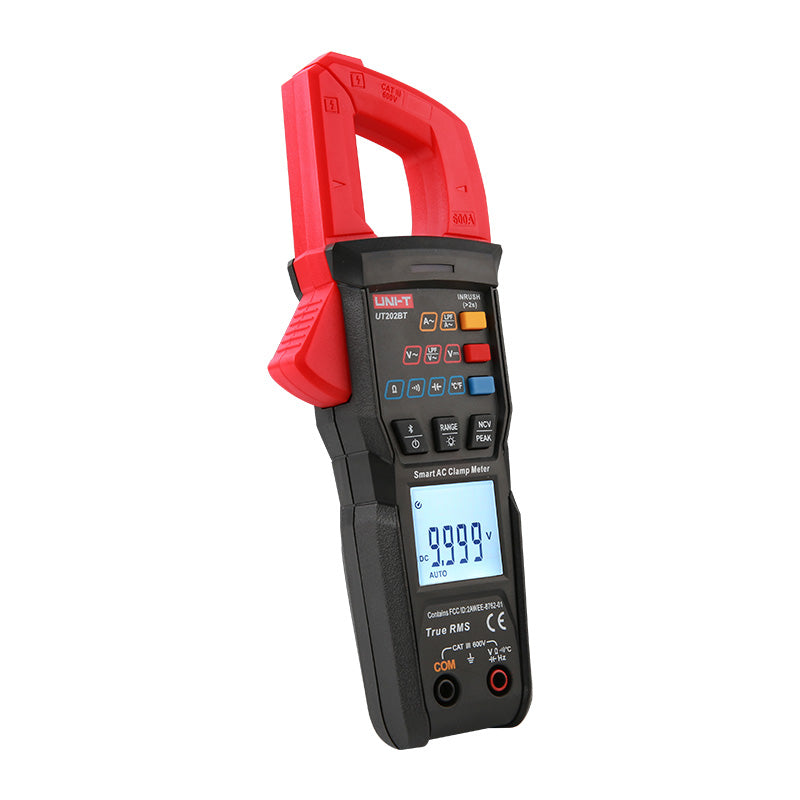

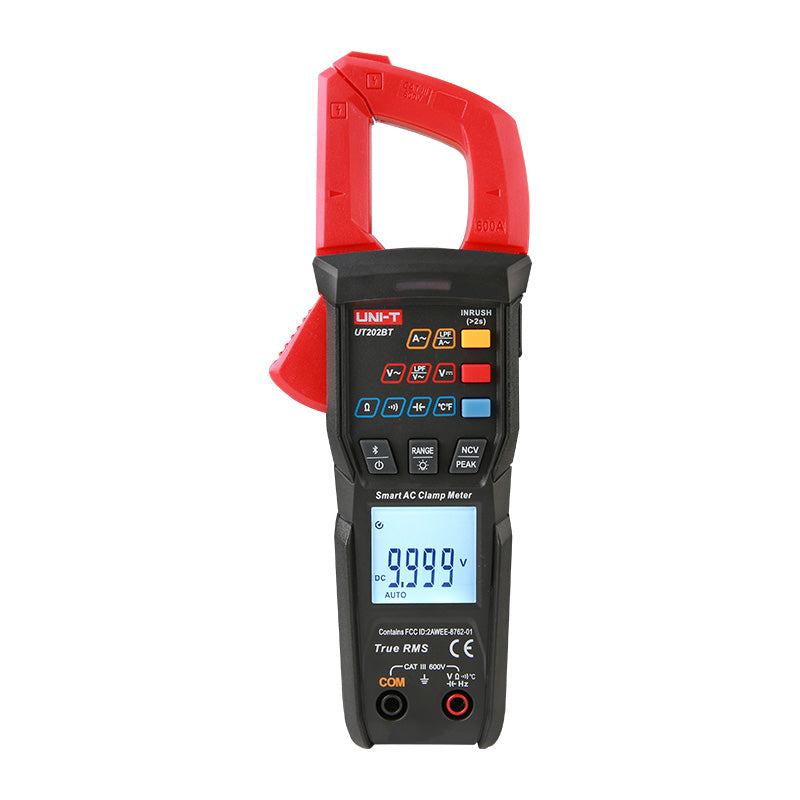

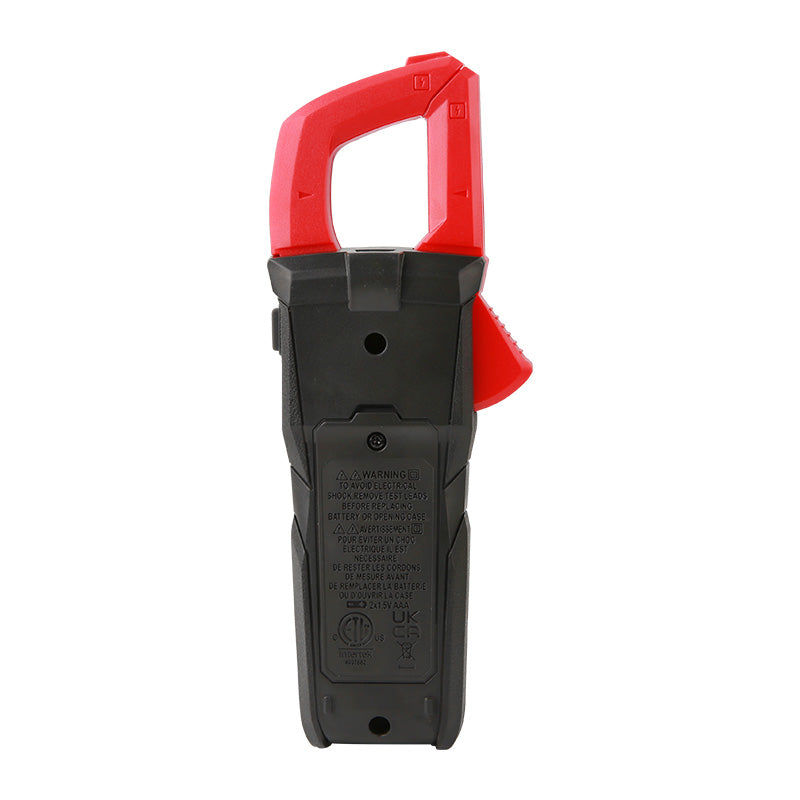

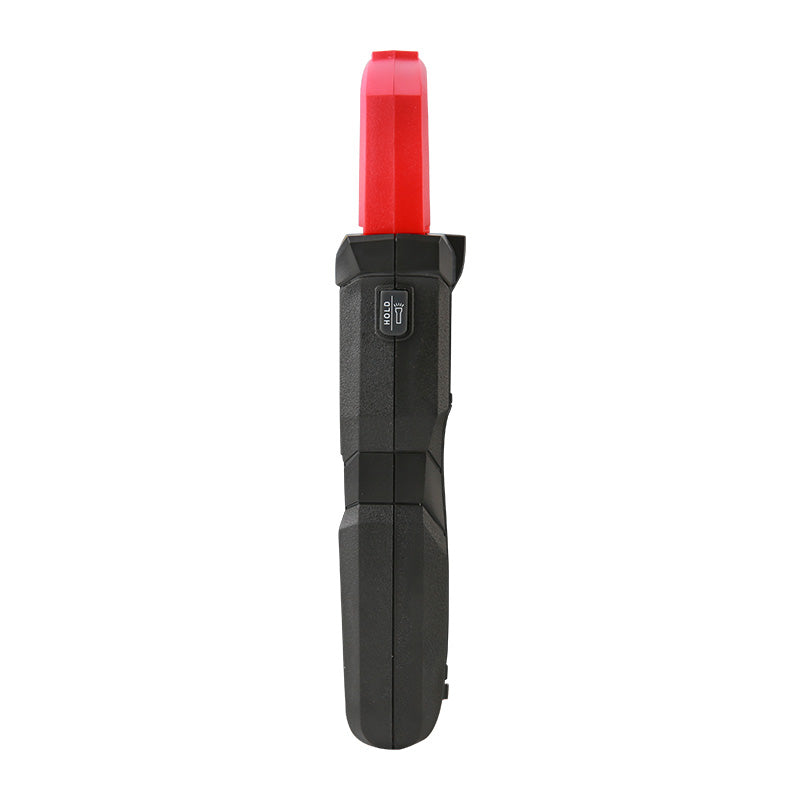

UT202BT/UT202T Smart AC Clamp Meters

UT202BT/UT202T Smart AC Clamp Meters

SKU: UT202+ Download PDF

Now $3,599.00
BEFORE   Now $3,599.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

UT202BT is a Bluetooth smart clamp meter designed with low pass filter mode, and inrush current detection, peak hold, and other traditional clamp meter functions UT202T is a simple to use smart clamp meter which can automatically detect most common parameters Features of UT202BT/UT202T Smart AC Clamp Meters include button-design clamp meter, one-hand operation, true RMS / 9999 counts, 28mm jaw opening, 600V AC/DC voltage measurement, 600A AC current measurement, dual display, bright backlight, non-contact voltage detection, and CAT III 600V rating.

Features and Benefits:

    •Button-design clamp meter.

    •One-hand operation and easy to use.

    •True RMS / 9999 counts.

    •Jaw opening: 28mm.

    •600V AC/DC voltage measurement.

    •600A AC current measurement.

    •Dual display: V+HZ and A+HZ.

    •Bright backlight / Flashlight.

    •Non-contact voltage (NCV).

    •CAT III 600V.

Specifications:

 Certificates CE/UKCA/cETLus
 DC voltage (V) 600V ±(0.5%＋3)
 AC voltage (V) 600V ±(0.8%＋3)
 AC current (A) 600A ±(2.5%+5)
 Resistance (Ω) 6MΩ ±(0.8%+3) / 100MΩ ±(0.8%+3)
 Frequency (Hz) 40Hz~1000Hz ±(1.0％+5)
 Capacitance (F) 100mF ±(4%+5)
 Temperature (℃/℉) -40℃~1000℃/-40℉~1832℉ ±5/±9
 Jaw opening 28mm
 Display count 9999
 Dual display √
 Auto range √
 NCV √
 Continuity √
 PEAK hold √
 Low pass filter √
 Inrush current √
 Audible visual indication √
 Low battery indication ＜2.4V approximately
 Data hold √
 Auto power off Approximately 15 minutes
 Flashlight √
 Bluetooth √
 Safety rating CAT Ⅲ 600V
 Product color Red+Gray
 Power AAA 1.5V x 2
 Product net weight UT202T: 241g (Including batteries); UT202BT: 251g (Including batteries)
 Product size 201.5 x 47 x 28mm
