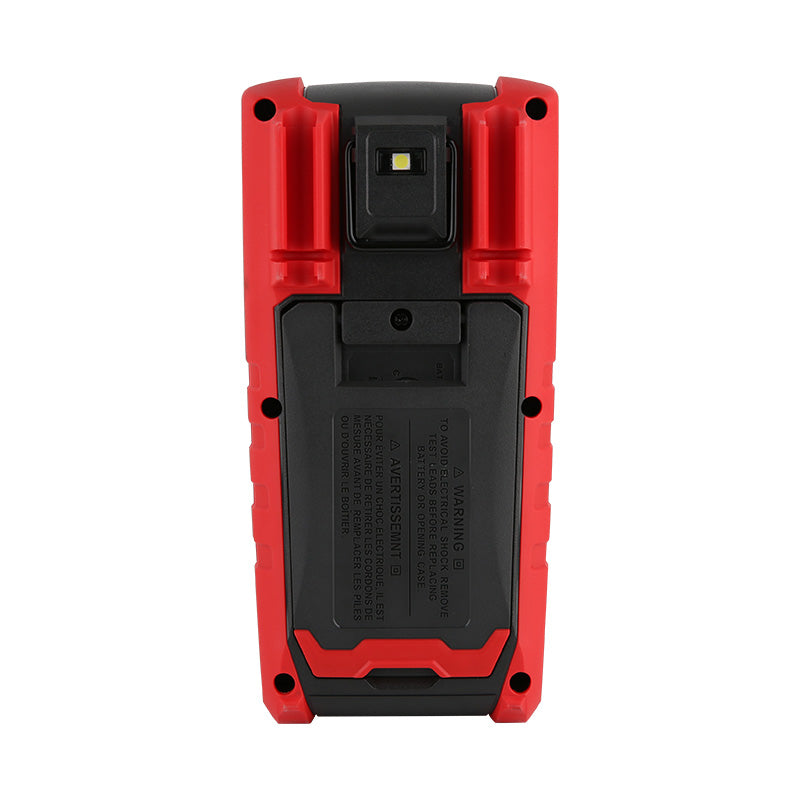

UT196 1700V DC True RMS Professional Multimeter – Solar Pro

UT196 1700V DC True RMS Professional Multimeter – Solar Pro

SKU: UT196   Download PDF

Qty:
Now $22,799.00   Web pricing policy
BEFORE   Now $22,799.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

UT196 True RMS solar digital multimeter is an ideal tool for solar power system maintenance This rugged meter is designed for technicians who work in rugged outdoor environments UT196 can measure up to 1700V DC and 1500V AC voltages, and 3000A AC current with an external current clamp sensor This solar meter offers IP65 protection and able to withstand 2m drop as well UT196 solar digital multimeter is designed with 1700V DC, 1500Vrms AC overload protection and tested for safe usage in CAT III 1000V, CAT IV 600V environments.

Features and Benefits:

    •True RMS.

    •Measure up to 1700V DC and 1500V AC for high voltage applications e.g. solar array, wind.

    •IP65 protection.

    •CAT III 1000V, CAT IV 600V.

    •Analog bar.

    •Frequency response: 45Hz~1kHz.

    •Low-pass filter function.

    •Low impedance mode.

    •Built-in flashlight, bright backlight and visual alarm.

    •High DC voltage measurement.

    •Output voltage and frequency measurement.

    •Voltage and frequency measurement.

    •Current and frequency measurement.

Specifications:

 DC voltage(V) 1700V ±(0.2%＋5)
 AC voltage(V) 1500V ±(0.8%＋3)
 Frequency (Hz) 1MHz ±(0.08%+4)
 Resistance(Ω) 60MΩ ±(0.8%＋2)
 Capacitance (F) 60mF ±(1.9%+5)
 Display count 6000
 True RMS Yes
 Dual display Yes
 Auto range Yes
 NCV Yes
 Diode test Yes
 Continuity Yes
 Relative mode Yes
 Max/Min Yes
 Peak hold Yes
 Low pass filter(LPF) Yes
 Audible visual indication Yes
 Low battery indication <7.5V approximately
 Data hold Yes
 Analog bar graph Yes
 Auto power off Approximately 15 minutes
 Flashlight Yes
 IP rating IP65
 Drop test 2m
 Safety rating CAT III 1000V, CAT IV 600V
 Power 9V battery
 Product color Red+Gray
 Product size 195 x 95 x 58mm
