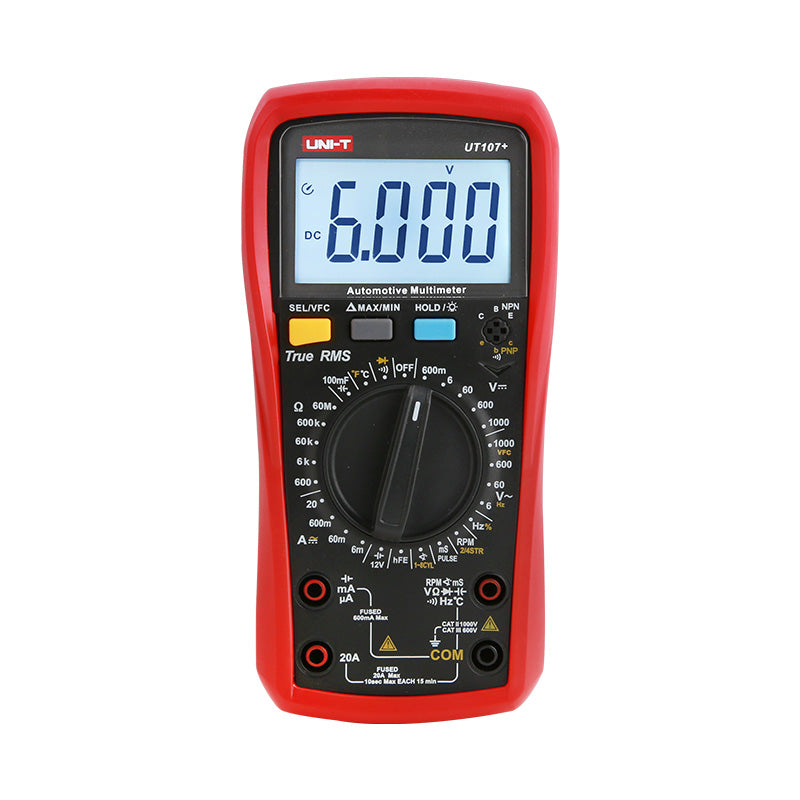

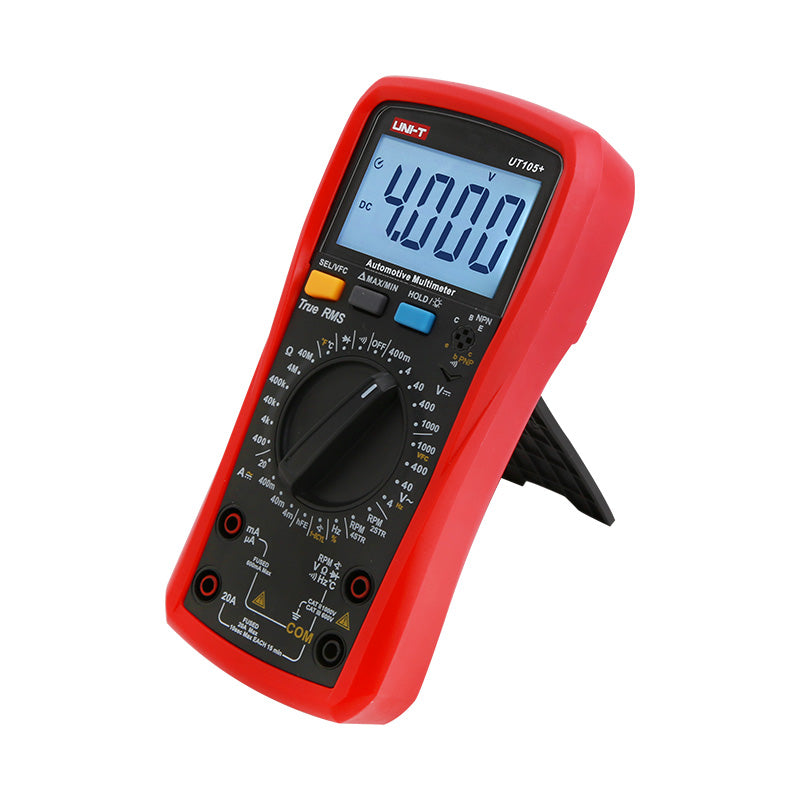

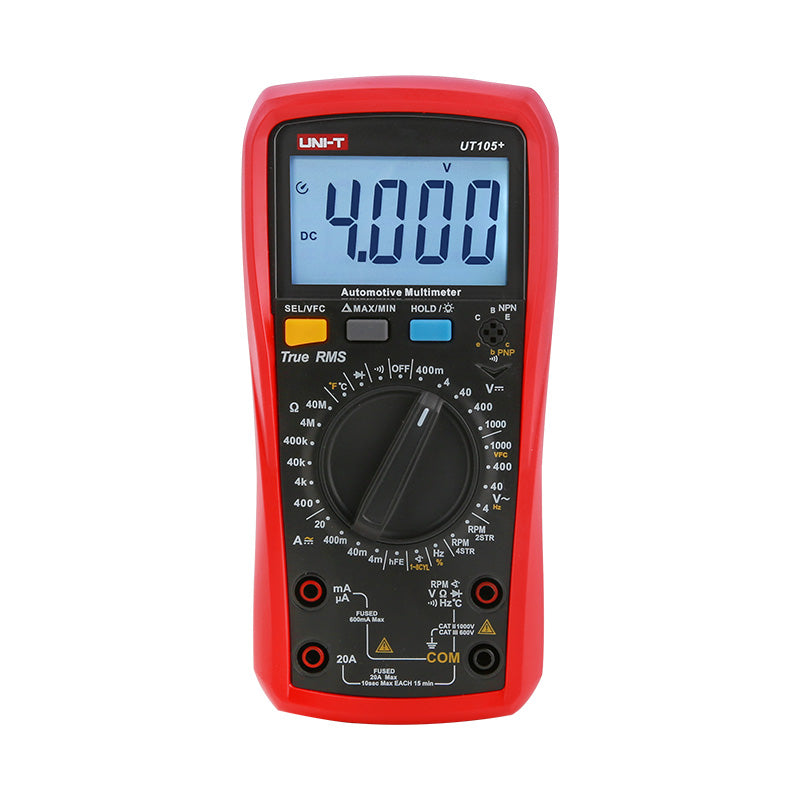

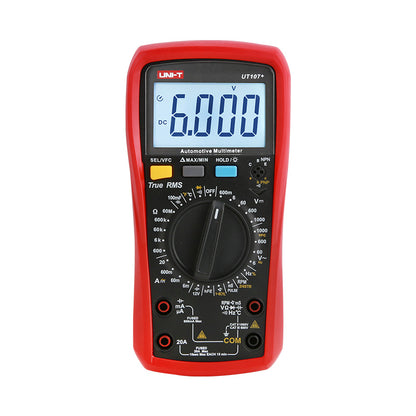

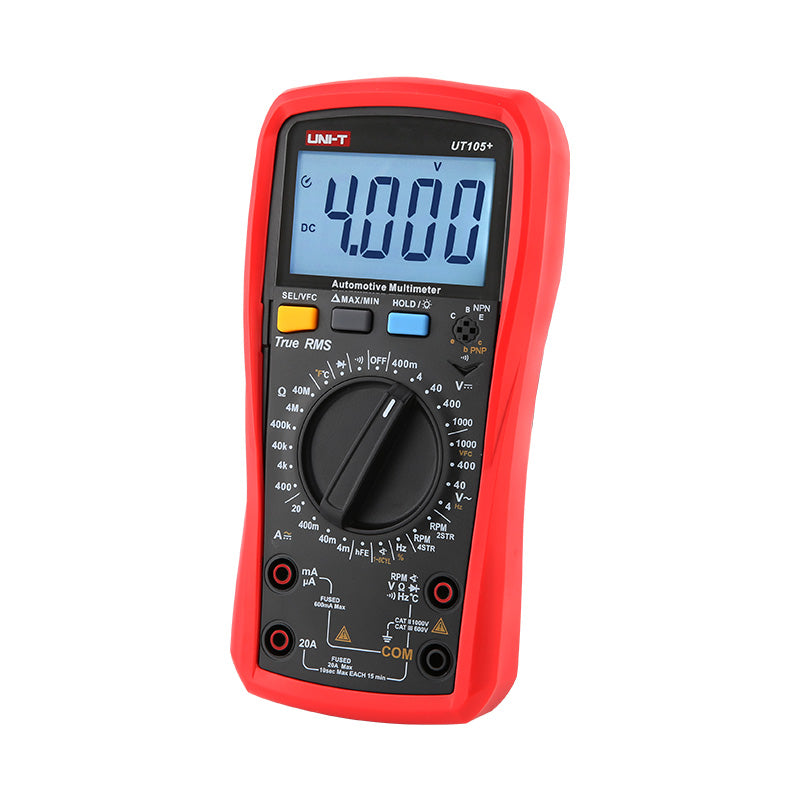

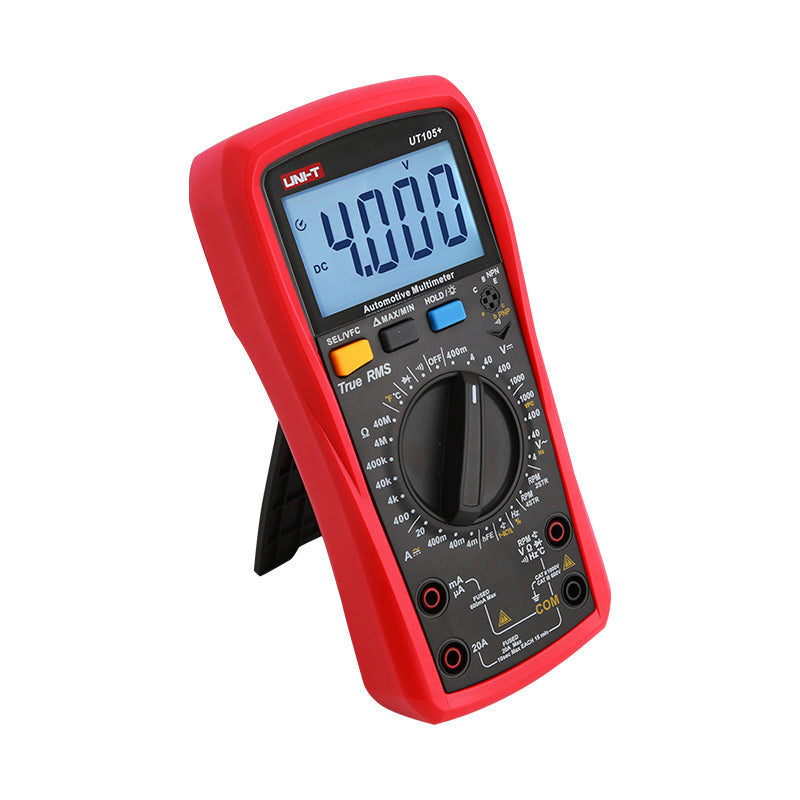

UT105+/UT107+ Automotive Multimeters

UT105+/UT107+ Automotive Multimeters

SKU: UT105+ Download PDF

Now $3,499.00
BEFORE   Now $3,499.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

UT105+ and UT107+ Automotive Multimeters have updated measurement functions, accuracy, and meter shell to test conventional and hybrid vehicles This series contains all the reliable functions of the traditional multimeter and offers RPM, dwell angle, pulse width, and battery test as well 1000V AC/DC voltage and 10A AC/DC current (20A for 10s max) measurement range is suitable for most of the vehicle and electrical facilities maintenance.

Up to 1000V VFC mode enables users to take accurate measurements on variable-frequency motor drives, water pumps, HVAC systems UT105+ and UT107+ are both True RMS automotive multimeters that meet CAT II 1000V/CAT III 600V safety rating UT105+ is designed for basic vehicle troubleshooting with 4000 counts display UT107+ supports some extra functions, such as battery test, pulse width, capacitance with 6000 counts display.

Features and Benefits:

    •True RMS.

    •1000V AC/DC voltage measurement.

    •20A AC/DC current measurement (20A for 10s max).

    •VFC 1000V voltage measurement.

    •Dwell angle 1-8CYL.

    •RPM 2STR/4STR.

    •Capacitance/Pulse width/12V battery test (UT107+).

    •Temperature/Resistance/Frequency.

    •Data hold/Relative mode/Duty cycle.

    •Diode/Transistor.

    •Backlight.

    •CAT II 1000V / CAT III 600V.

Specifications:

 DC voltage (V) 400mV/4V/40V/400V/1000V ±(0.5%+3) for UT105+ and 600mV/6V/60V/600V/1000V ±(0.5%+3) for UT107+
 AC voltage (V) 4V/40V/400V/1000V ±(0.8%+3) for UT105+ and 6V/60V/600V/1000V ±(0.8%+3) for UT107+
 AC current (A) 4mA/40mA/400mA/10A (20A for 10s max) ±(1.0%+8) for UT105+ and 6mA/60mA/600mA/10A (20A for 10s max) ±(1.0%+8) for UT107+
 DC current (A) 4mA/40mA/400mA/10A (20A for 10s max) ±(0.8%+8) for UT105+ and 6mA/60mA/600mA/10A (20A for 10s max) ±(0.8%+8) for UT107+
 Resistance (Ω) 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ ±(0.8%+3) for UT105+ and 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ ±(0.8%+3) for UT107+
 Capacitance (F) 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF ±(3%+10)
 Frequency (Hz) 10Hz~10MHz ±(0.1%+5） for both models
 Temperature (℃) -40℃~1000℃ ±(1.0%+3) for both models
 Temperature (℉) -40℉~1832℉ ±(1.5%+5) for both models
 VFC √ for both models
 RPM 2STR ±(3.0%+5) for UT105+ and 4STR ±(3.0%+3) for UT107+
 Dwell angle 1CYL(0～356.4°)/2CYL(0～178.2°)/3CYL(0～118.8°)/4CYL(0～89.1°)/5CYL(0～71.3°)/6CYL(0～59.4°)/8CYL(0～44.5°) ±(3.0%+5) for both models
 Pulse width 999.9mS ±(1.5%+10)
 Display count 4000 for UT105+ and 6000 for UT107+
 Manual range √ for both models
 Continuity/diode/transistor √ for both models
 Duty cycle √ for both models
 High voltage alarm √ for both models
 High voltage overload alarm √ for both models
 Large current alarm √ for both models
 Low battery indication < Approximately 2.4V for both models
 Backlight √ for both models
 Auto power off Approximately 15 minutes for both models
 Data hold √ for both models
 Max/Min/Relative mode √ for both models
 12V battery test √ for UT107+
 Safety rating CAT II 1000V/CAT III 600V
