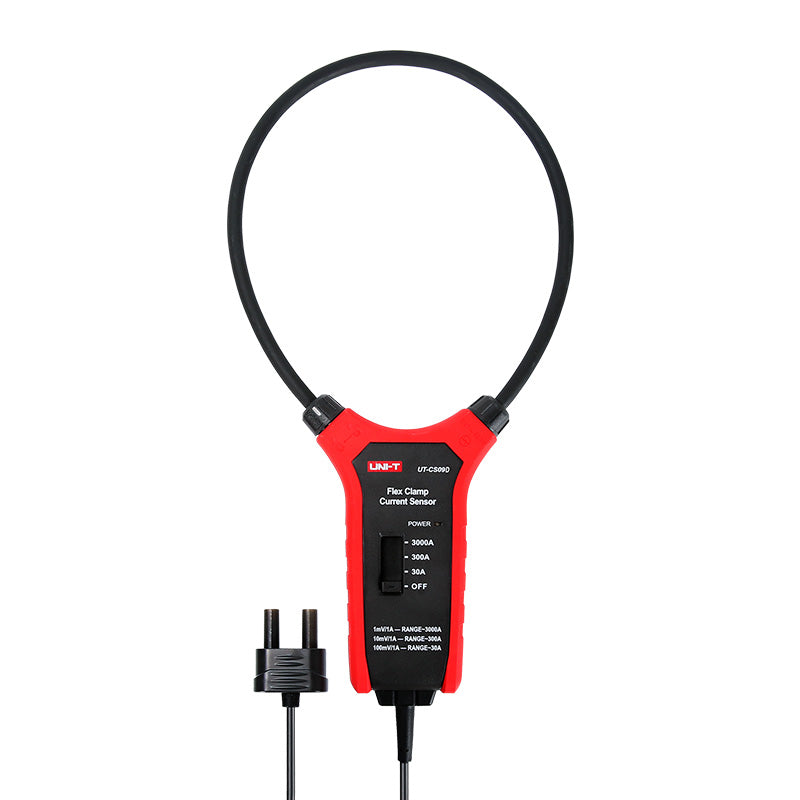

UT-CS09D Flex Clamp Sensor

UT-CS09D Flex Clamp Sensor

SKU: UT-CS09D Download PDF

Now $10,799.00
BEFORE   Now $10,799.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The UT-CS09D flex clamp sensor provides a solution for measuring high current conductors in confined spaces Utilizing a Rogowski coil based design, it ensures stable, safe, and highly reliable measurements of currents up to 3000A Its lightweight and unique design make this sensor an ideal option for professional electricians.

Features and Benefits:

    •Measuring capability from 1.5A to 3000A current.

    •1m drop proof design.

    •Robust terminal connection.

    •Direct current display when connected to UT206B/208B.

    •Complies with CE, UKCA, cETLus certifications.

Specifications:

 AC current (A) 30A/300A/3000A
 Frequency response 45Hz~500Hz
 Flex clamp size 45.7cm (18 inches)
 Operating temperature 0℃~50℃
 Storage temperature -20°C~60°C
 Storage humidity ≤80%RH
 Low battery indication About 3.3V
 Category rating CAT IV 600V
 Power 1.5V battery (R03) x 3
 Product size 267mm x 119.4mm x 34mm
 Standard accessories Batteries, BNC adapter, English manual
 Standard individual packing Blister
 Standard carton measurement 495mm x 405mm x 225mm
 Standard carton gross weight 7kg
