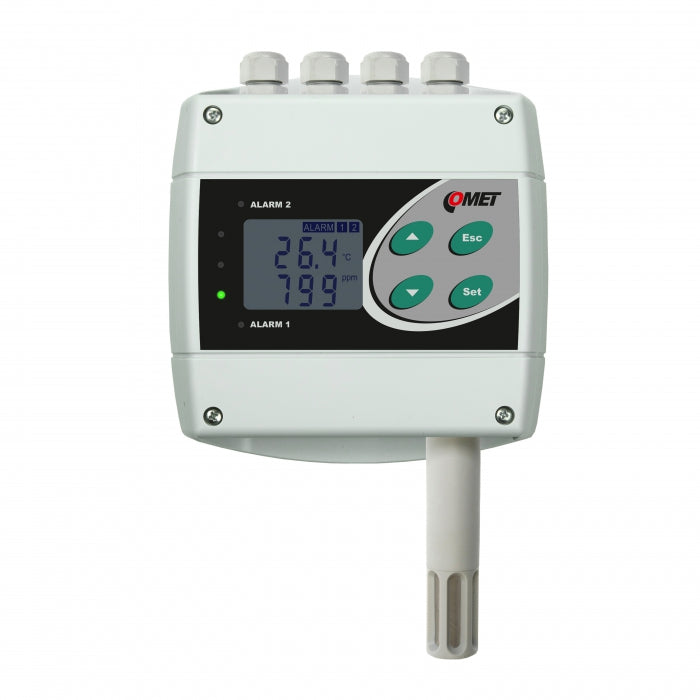

Temperature-Humidity-CO2 Transmitter with Relay Outputs

Temperature-Humidity-CO2 Transmitter with Relay Outputs

SKU: SKU: H6420   Download PDF

Qty:
Regular price Now $100.00   Web pricing policy
Regular price BEFORE   Sale price Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information
Resources

Description:

This is a temperature, humidity, and CO2 transmitter that is equipped with two relays and RS485 outputs It is capable of providing visual indications of CO2 concentration through LEDs: a green LED for a CO2 concentration of 0 to 1000 ppm, a yellow LED for a concentration of 1001 to 1200 ppm, and a red LED for concentrations exceeding 1201 ppm Furthermore, the measuring range for CO2 can be extended to 10,000 ppm at an extra charge.

This advanced device accurately measures temperature, relative humidity, dew point, and CO2 levels, ensuring reliable and precise data delivery.

Features and Benefits:

    •Green, yellow, and red LEDs indicate CO2 concentration levels..

    •Extended measuring range for CO2 up to 10,000 ppm available..

    •Accurate measurements for temperature, humidity, and CO2..

    •Two relay outputs for effective monitoring..

    •RS485 output supports advanced communication..

    •Acoustic alarm feature for alerting users..

    •Ideal for indoor air quality monitoring..

    •Applicable in HVAC systems to regulate air parameters..

    •Useful in environments requiring accurate CO2 monitoring..

Specifications:

 Measuring range (Temperature): -30 to +80 °C
 Accuracy (Temperature): ±0.4 °C
 Resolution (Temperature): 0.1 °C
 Measuring range (Humidity): 0 to 100 % RH
 Accuracy (Humidity): ±2.5 % RH from 5 to 95 % at 23 °C
 Resolution (Humidity): 0.1% RH
 Measuring range (Dew Point): -60 to +80 °C
 Accuracy (Dew Point): ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Resolution (Dew Point): 0.1 °C
 Measuring range (CO2): 0 to 2000 ppm
 Accuracy (CO2): ±(50ppm +2% from reading) at 25°C and 1013hPa
 Resolution (CO2): 1 ppm
 Relay outputs (Quantity): 2
 Relay outputs (Maximal Voltage): 50 V
 Relay outputs (Maximal Current): 2 A
 Relay outputs (Maximal Power): 60 VA
 Operating temperature: -30 to +60 °C
 Protection class: IP30 electronics; IP40 sensors
 Dimensions: 136 x 213 x 45 mm; stem length 75mm
 Power: 9-30 Vdc
