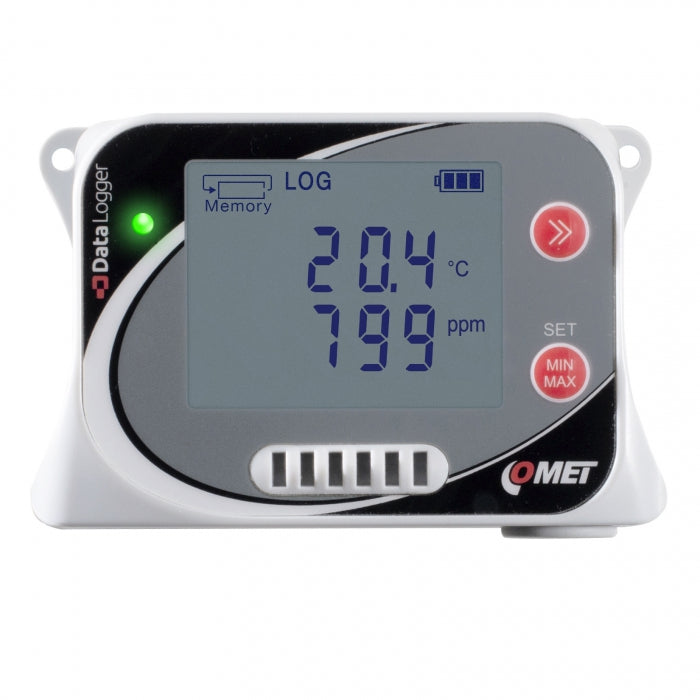

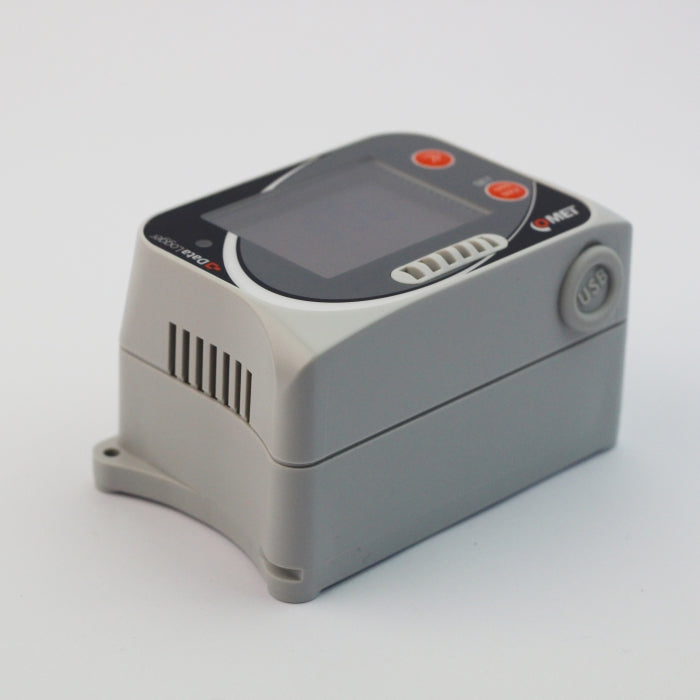

Temperature, humidity and CO2 data logger with built-in sensors

Temperature, humidity and CO2 data logger with built-in sensors

SKU: U3430 Download PDF

Sold out
Web pricing policyShipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

Datalogger is designed to record temperature, humidity and CO2 In case of exceeded set limits alarms are indicated by LED, LCD and acoustically by built-in beeper The recording is performed in a non-volatile electronic memory The data can be transferred to a PC via USB-C Recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

Features and Benefits:

    •Records temperature, humidity, and CO2 levels with built-in sensors..

    •LED, LCD, and acoustic alarms for exceeded limits..

    •Non-volatile electronic memory for data recording..

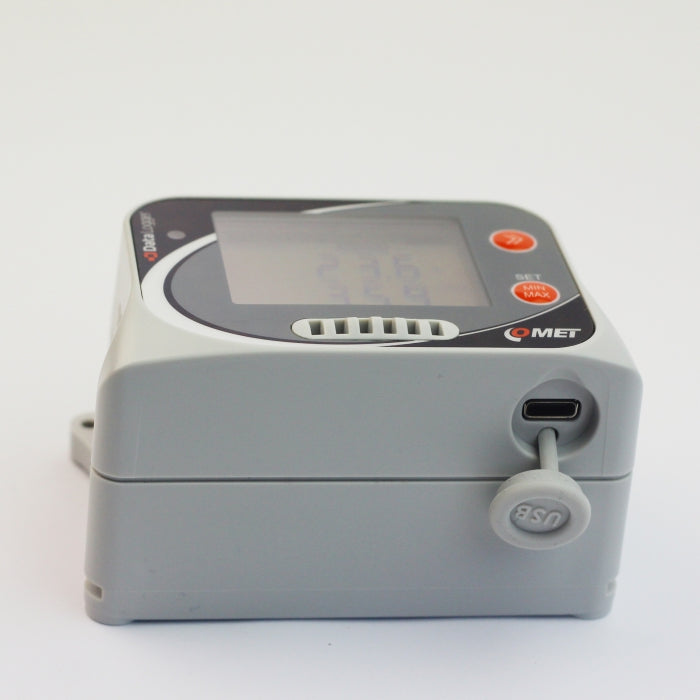

    •Data transfer to PC via USB-C..

    •Includes Traceable calibration certificate..

Specifications:

 Temperature Sensor Measuring Range -20 to +60 °C
 Temperature Sensor Accuracy ±0.4 °C
 Temperature Sensor Resolution 0.1 °C
 Humidity Sensor Measuring Range 0 to 100 % RH
 Humidity Sensor Accuracy ± 1.8 % RH
 Humidity Sensor Resolution 0.1% RH
 Dew Point Measuring Range -60 to +60 °C
 Dew Point Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution 0.1 °C
 CO2 Sensor Measuring Range 0 to 5000 ppm
 CO2 Sensor Accuracy ±(50ppm +3% from reading) at 25°C and 1013hPa
 CO2 Sensor Resolution 1 ppm
 Operating Temperature -20 to +60 °C
 Channels internal sensors for temperature, humidity, CO2
 Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
 Recording Interval adjustable from 1 s to 24 h
 Display and Alarm Refresh adjustable 1 s, 10 s, 1 min
 Recording Mode noncyclic - data logging stops after filling the memory; cyclic - after filling memory oldest data is overwritten by new
 Real Time Clock year, leap year, month, day, hour, minute, second
 Power Li-Ion battery A8200, 3.6V/5200mAh
 Protection Class IP20
 Dimensions 61 x 93 x 53 mm
