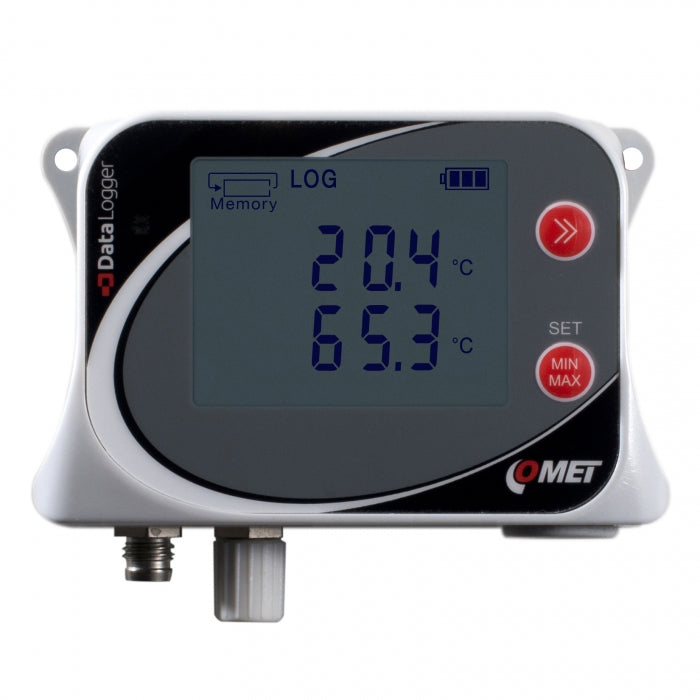

Temperature Data Logger for Two External Pt1000 Probes

Temperature Data Logger for Two External Pt1000 Probes

SKU: U0121 Download PDF

Sold out
Web pricing policyShipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

Datalogger is designed to record temperature from two external Pt1000 probes The recording is performed in a non-volatile electronic memory The data can be transferred to a PC via USB-C In case of exceeded set limits, alarms are indicated by LED, LCD and acoustically by built-in beeper The device includes a Traceable calibration certificate with declared metrological traceability of etalons based on requirements of EN ISO/IEC 17025 standard.

Features and Benefits:

    •Designed to record temperature from two external Pt1000 probes.

    •Non-volatile electronic memory for data recording.

    •Data transfer capability to PC via USB-C.

    •Alarms indicated by LED, LCD, and built-in beeper.

    •Includes Traceable calibration certificate.

Specifications:

 Measured value Temperature
 Temperature sensor external probe Pt1000
 Measuring range -200 to +260 °C
 Accuracy ±0.2°C; ±0.2 % of the measurement value in a range of +100 to +260 °C
 Resolution 0.1 °C
 Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) according to the connected probe
 Operating temperature -30 to +70 °C
 Channels 2x external temperature probe
 Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
 Recording interval adjustable from 1 s to 24 h
 Display and alarm refresh adjustable 1 s, 10 s, 1 min
 Recording mode noncyclic - data logging stops after filling the memory; cyclic - after filling memory oldest data is overwritten by new
 Real time clock year, leap year, month, day, hour, minute, second
 Power Lithium battery 3.6 V, size AA
 Protection class IP67
 Dimensions 61 x 93 x 32 mm
