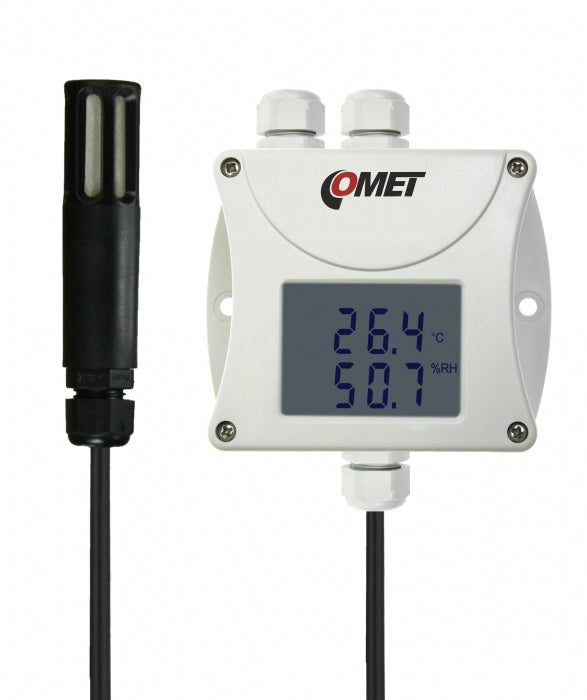

Temperature and Humidity Transmitter with External Probe - RS485 Output

Temperature and Humidity Transmitter with External Probe - RS485 Output

SKU: T3419 Download PDF

Sold out
Web pricing policyShipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This transmitter measures temperature and relative humidity using a T+RH probe connected by cable It is suitable for both indoor and outdoor use The device processes the measured values and provides additional interpretations, including dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy It comes equipped with a T+RH probe featuring a 1-meter cable to enhance its measurement capabilities.

Features and Benefits:

    •Measures temperature and relative humidity with a single probe.

    •Provides various humidity interpretations including dew point and absolute humidity.

    •Suitable for both indoor and outdoor applications.

    •Equipped with a 1-meter probe cable for flexibility in installations.

Specifications:

 Temperature Measuring Range -30 to +105 °C
 Temperature Accuracy ±0.4 °C
 Temperature Resolution 0.1 °C
 Humidity Measuring Range 0 to 100 % RH
 Humidity Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Resolution 0.1% RH
 Dew Point Measuring Range -60 to +80 °C
 Dew Point Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution 0.1 °C
 Operating Temperature -30 to +80 °C
 Channels 1x connectable temperature+humidity probe
 Output RS485
 Power 9-30 Vdc
 Protection Class IP65 electronics; IP40 sensors
 Dimensions 88.5 x 145 x 39.5 mm; length/diameter of external probe 88/18 mm
 External Probe Cable Length 1 meter
