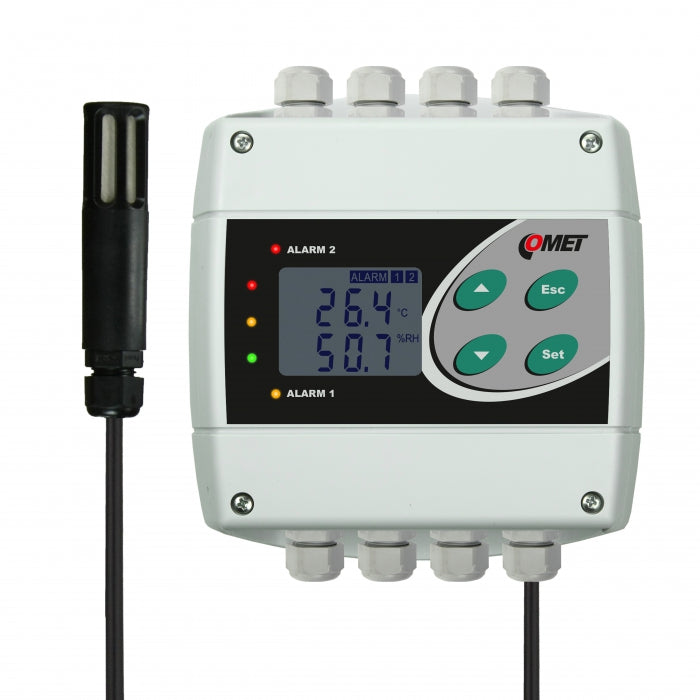

Temperature and Humidity Regulator with RS232 Output

Temperature and Humidity Regulator with RS232 Output

SKU: H3331 Download PDF

Sold out
Web pricing policyShipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

Temperature and humidity regulator designed for both outdoor and indoor use, equipped with RS232 output It functions as a humidistat and thermostat with two relay outputs The device includes a relative humidity and temperature probe connected via a 1-meter cable Measured values for humidity interpretation include dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy.

It also has three two-state inputs.

Features and Benefits:

    •Includes T+RH probe with a 1-meter cable.

    •Capable of measuring various environmental parameters.

    •Two relay outputs for operational control.

    •Compatible with ModBus RTU and Advantech ADAM communication protocols.

    •Acoustic alarm functionality via built-in beeper.

Specifications:

 Temperature Sensor Measuring Range -30 to +105 °C
 Temperature Sensor Accuracy ±0.4 °C
 Temperature Sensor Resolution 0.1 °C
 Humidity Sensor Measuring Range 0 to 100 % RH
 Humidity Sensor Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Sensor Resolution 0.1% RH
 Dew Point Measuring Range -60 to +80 °C
 Dew Point Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution 0.1 °C
 Relay Outputs Quantity 2
 Relay Outputs Maximal Voltage 50 V
 Relay Outputs Maximal Current 2 A
 Relay Outputs Maximal Power 60 VA
 Binary Inputs Quantity 3
 Binary Inputs Signal dry contact, open collector or two-state voltage signal
 Operating Temperature -30 to +80 °C
 Channels 1x connectable temperature+humidity probe
 Output RS232
 Power 9-30 Vdc
 Protection Class IP65 electronics; IP40 sensors
 Dimensions 136 x 159 x 45 mm; length/diameter of external probe 88/18 mm
 External Probe Cable Length 1 meter
