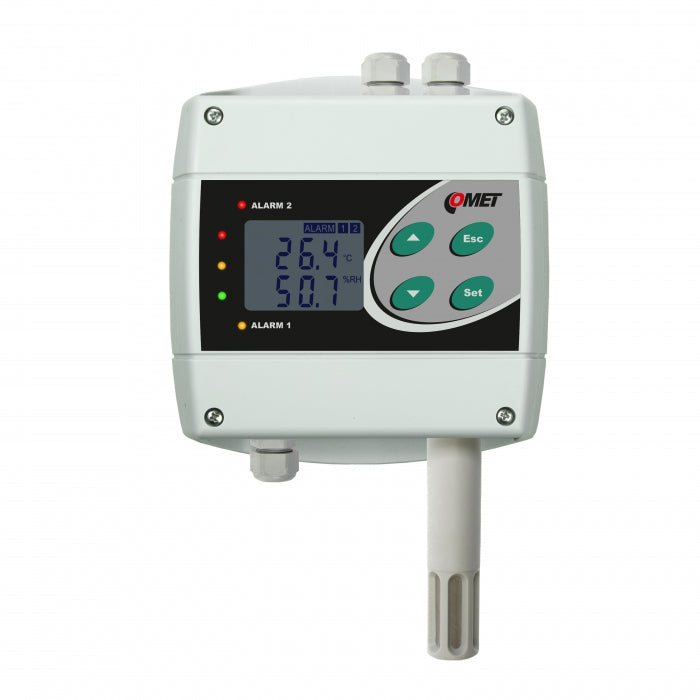

Temperature and Humidity Regulator 230Vac/8A

Temperature and Humidity Regulator 230Vac/8A

SKU: H3060 Download PDF

Sold out
Web pricing policyShipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The temperature and humidity regulator operates with both humidistat and thermostat functions, featuring two relay outputs for reliable performance It is suitable for indoor and outdoor use, equipped with built-in humidity and temperature sensors This device also provides additional interpretations for humidity, including dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy.

Features and Benefits:

    •Built-in humidity and temperature sensors.

    •Multiple interpretations of humidity measurements.

    •Dual relay outputs for enhanced control.

    •Wide measuring range for temperature (-30 to +80 °C) and humidity (0 to 100 % RH).

    •Acoustic alarm functionality with a built-in switchable beeper.

    •IP65 protection for electronics and IP40 for sensors.

Specifications:

 Temperature Measuring Range: -30 to +80 °C
 Temperature Accuracy: ±0.4 °C
 Temperature Resolution: 0.1 °C
 Humidity Measuring Range: 0 to 100 % RH
 Humidity Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Resolution: 0.1% RH
 Dew Point Measuring Range: -60 to +80 °C
 Dew Point Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution: 0.1 °C
 Relay Outputs Quantity: 2
 Relay Maximal Voltage: 250 VAC
 Relay Maximal Current: 8 A
 Relay Maximal Power: 2000 VA AC, 192 W DC
 Operating Temperature: -30 to +80 °C
 Channels: internal temperature and humidity sensor
 Counted Values: dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
 Acoustic Alarm: from built-in beeper - switchable
 Power: 110 – 240 VAC
 Protection Class: IP65 electronics; IP40 sensors
 Dimensions: 136 x 214 x 45 mm; stem length 75 mm
