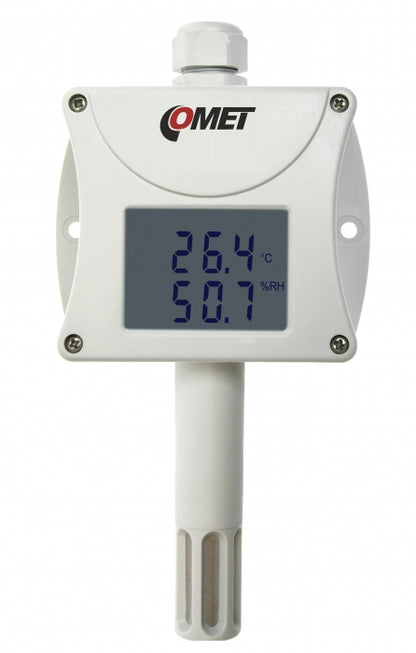

Temperature and Humidity Probe with 0-10V Output

Temperature and Humidity Probe with 0-10V Output

SKU: T0210   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

This product is an ambient temperature and relative humidity transmitter designed for both outdoor and indoor use It features built-in sensors that measure temperature and humidity, and it also converts these values to various other interpretations, including dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy The device is now also capable of being powered from 24 Vac, providing versatility in power sourcing.

Features and Benefits:

    •Built-in relative humidity and temperature sensors.

    •Measures temperature from -30 to +80 °C with a resolution of 0.1 °C.

    •Measures relative humidity from 0 to 100 % RH with a resolution of 0.1 % RH.

    •Calculates dew point temperature with measuring range -60 to +80 °C.

    •User configurable output from PC for flexible application.

    •IP65 protection for electronics and IP40 for sensors.

Specifications:

 Temperature Sensor Measuring Range -30 to +80 °C
 Temperature Sensor Accuracy ±0.4 °C
 Temperature Sensor Resolution 0.1 °C
 Humidity Sensor Measuring Range 0 to 100 % RH
 Humidity Sensor Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Sensor Resolution 0.1% RH
 Dew Point Measuring Range -60 to +80 °C
 Dew Point Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution 0.1 °C
 General Operating Temperature -30 to +80 °C
 Channels internal temperature and humidity sensor
 Counted Values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
 Output 0 - 10 V
 Range of Humidity Sensor Temperature Compensation all temperature range
 Configuration of Output user adjustable from PC; measured range + value
 Power 15-30 Vdc; 24 Vac
 Protection Class IP65 electronics; IP40 sensors
 Dimensions 88.5 x 170 x 39.5 mm; stem length 75 mm
