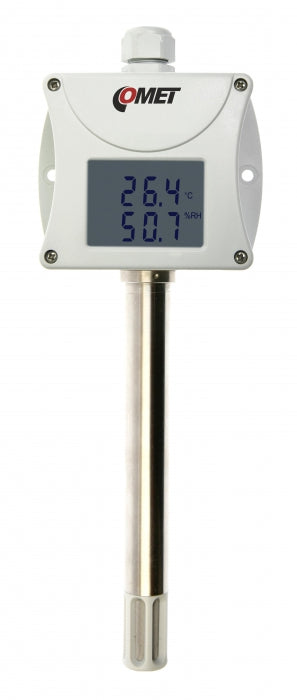

Temperature and humidity duct probe with 4-20mA output

Temperature and humidity duct probe with 4-20mA output

SKU: T3113   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

Humidity and temperature transmitter designed for both outdoor and indoor use with duct mounting capabilities It features a 150mm stem with relative humidity and temperature sensors The measured values are transformed to various humidity interpretations including dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy.

Features and Benefits:

    •Operating temperature range from -30 to +80 °C.

    •Output is 4-20 mA with galvanic isolation.

    •User-adjustable output configuration from PC.

    •Accuracy for temperature sensor is ±0.4 °C with a resolution of 0.1 °C.

    •Accuracy for humidity sensor is ±2.5 % RH at 23 °C from 5 to 95 %.

    •Provides counted values such as dew point, absolute humidity, specific humidity, mixing ratio, and specific enthalpy.

Specifications:

 Temperature Sensor Measuring Range: -30 to +125 °C
 Temperature Sensor Accuracy: ±0.4 °C
 Temperature Sensor Resolution: 0.1 °C
 Humidity Sensor Measuring Range: 0 to 100 % RH
 Humidity Sensor Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Sensor Resolution: 0.1% RH
 Dew Point Measuring Range: -60 to +80 °C
 Dew Point Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution: 0.1 °C
 Power: 9-30 Vdc
 Protection Class: IP65 electronics; IP40 sensors
 Dimensions: 88.5 x 250 x 39.5 mm; stem length 150 mm
