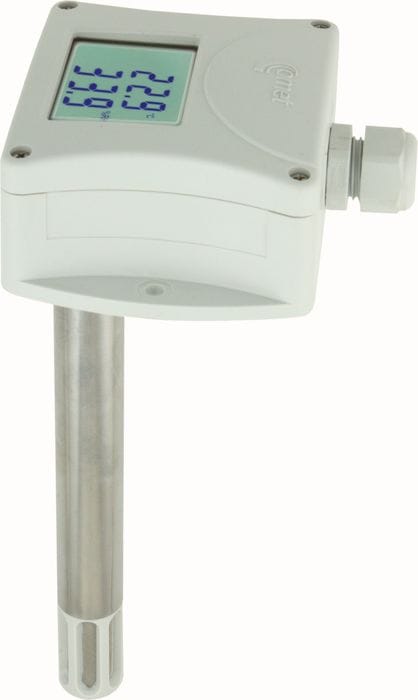

Temperature and Humidity Duct Probe

Temperature and Humidity Duct Probe

SKU: T3113D   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

Temperature and humidity duct probe equipped with a 4-20mA output, suitable for both outdoor and indoor use This device features duct mounting capabilities The probe contains relative humidity and temperature sensors located at a 150mm stem length The measured values are also converted into alternative humidity interpretations, including dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy.

Features and Benefits:

    •4-20mA output, galvanic isolated.

    •User adjustable output configuration via PC.

    •Comprehensive humidity interpretation including dew point and absolute humidity.

    •IP65 protection class for electronics.

    •Lightweight with an approximate weight of 150g.

Specifications:

 Temperature Measuring Range: -30 to +125 °C
 Temperature Accuracy: ±0.4 °C
 Temperature Resolution: 0.1 °C
 Humidity Measuring Range: 0 to 100 % RH
 Humidity Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Resolution: 0.1% RH
 Dew Point Measuring Range: -60 to +80 °C
 Dew Point Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution: 0.1 °C
 Operating Temperature: -30 to +80 °C
 Channels: internal temperature and humidity sensor
 Counted Values: dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
 Power: 9-30 Vdc
 Dimensions: 88.5 x 95 x 195 mm; stem length 150 mm
 Protection Class: IP65 electronics; IP40 sensors
