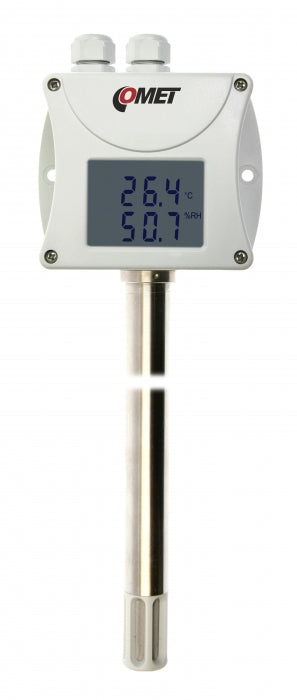

Temperature and Humidity Bar Type Transmitter

Temperature and Humidity Bar Type Transmitter

SKU: T3417   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

The temperature and humidity bar type transmitter with RS485 output is designed for both indoor and outdoor use It features relative humidity and temperature sensors mounted on a 700mm stem The device converts measured values into various humidity interpretations, including dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy.

Features and Benefits:

    •Outdoor and indoor use.

    •Measures temperature and relative humidity.

    •Provides multiple humidity interpretation values.

    •Includes a 700mm stem for easier placement.

Specifications:

 Temperature Sensor Measuring Range: -30 to +125 °C
 Temperature Sensor Accuracy: ±0.4 °C
 Temperature Sensor Resolution: 0.1 °C
 Humidity Sensor Measuring Range: 0 to 100 % RH
 Humidity Sensor Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Sensor Resolution: 0.1% RH
 Dew Point Measuring Range: -60 to +80 °C
 Dew Point Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution: 0.1 °C
 General Operating Temperature: -30 to +80 °C
 Channels: internal temperature and humidity sensor
 Counted Values: dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
 Output: RS485
 Humidity Sensor Temperature Compensation: all temperature range
 Available Temperature Units: degrees Celsius, degrees Fahrenheit
 Communication Protocol: ModBus RTU, ARION, Advantech ADAM
 Power: 9-30 Vdc
 Protection Class: IP65 electronics; IP40 sensors
 Dimensions: 88.5 x 94 x 39.5 mm; stem length 700 mm
