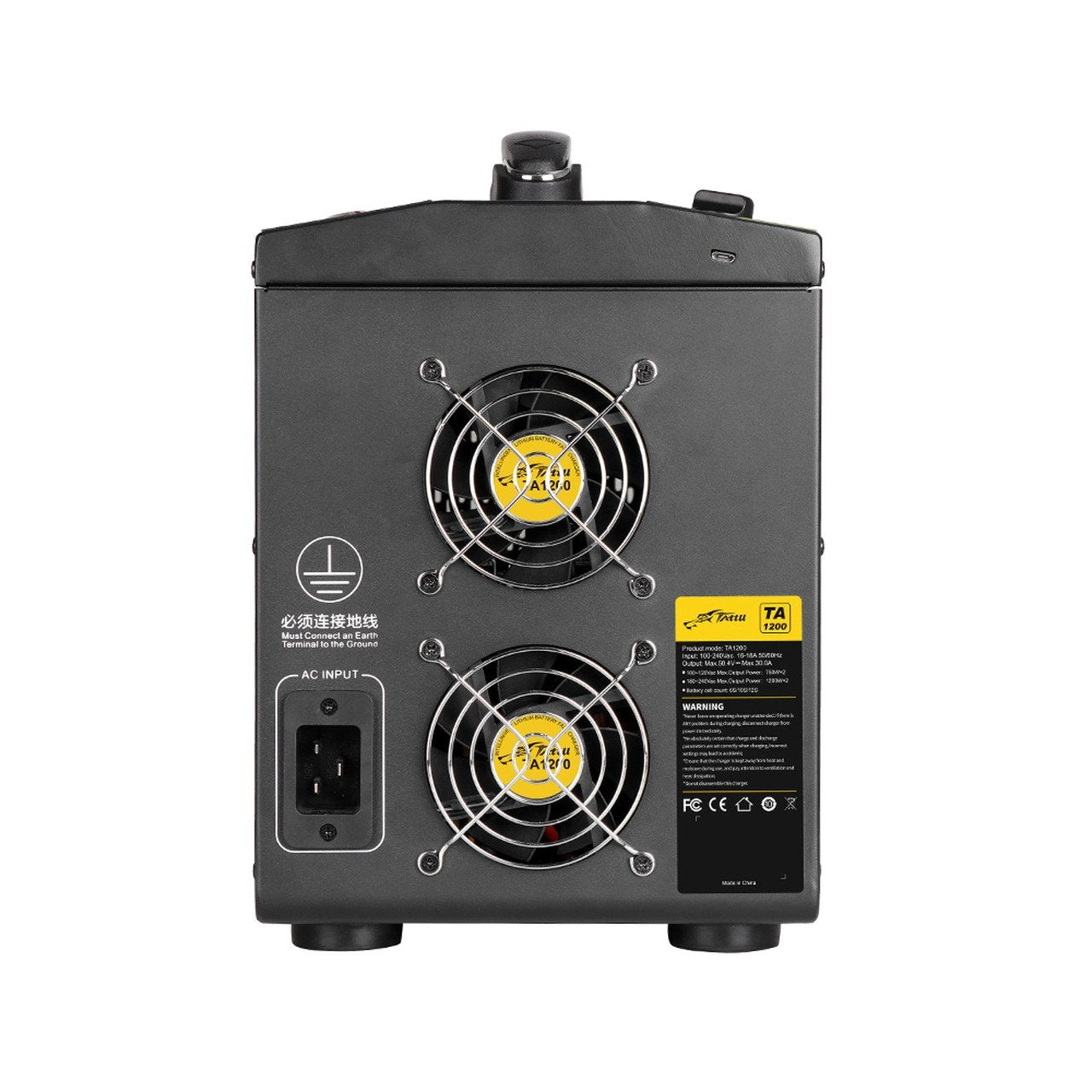

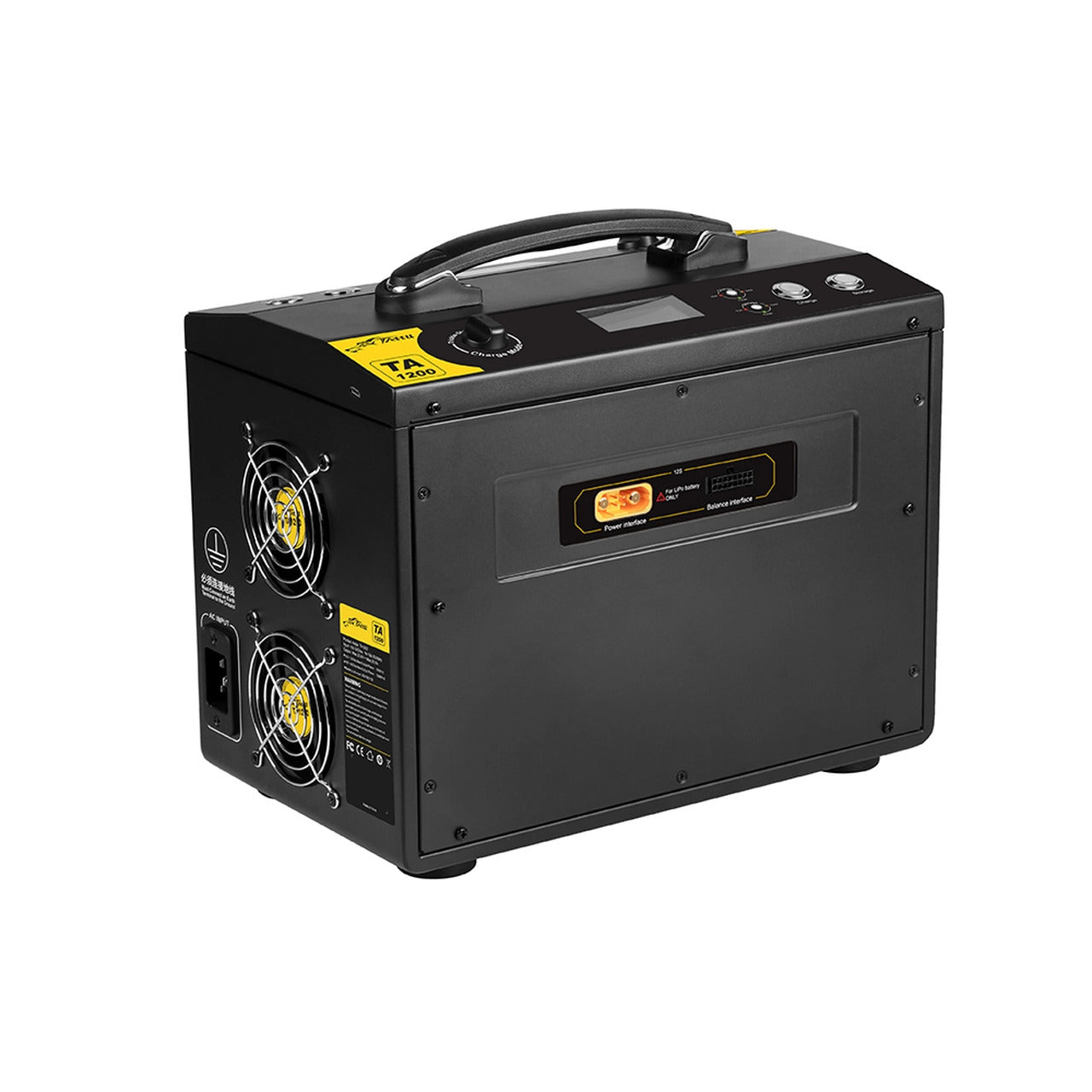

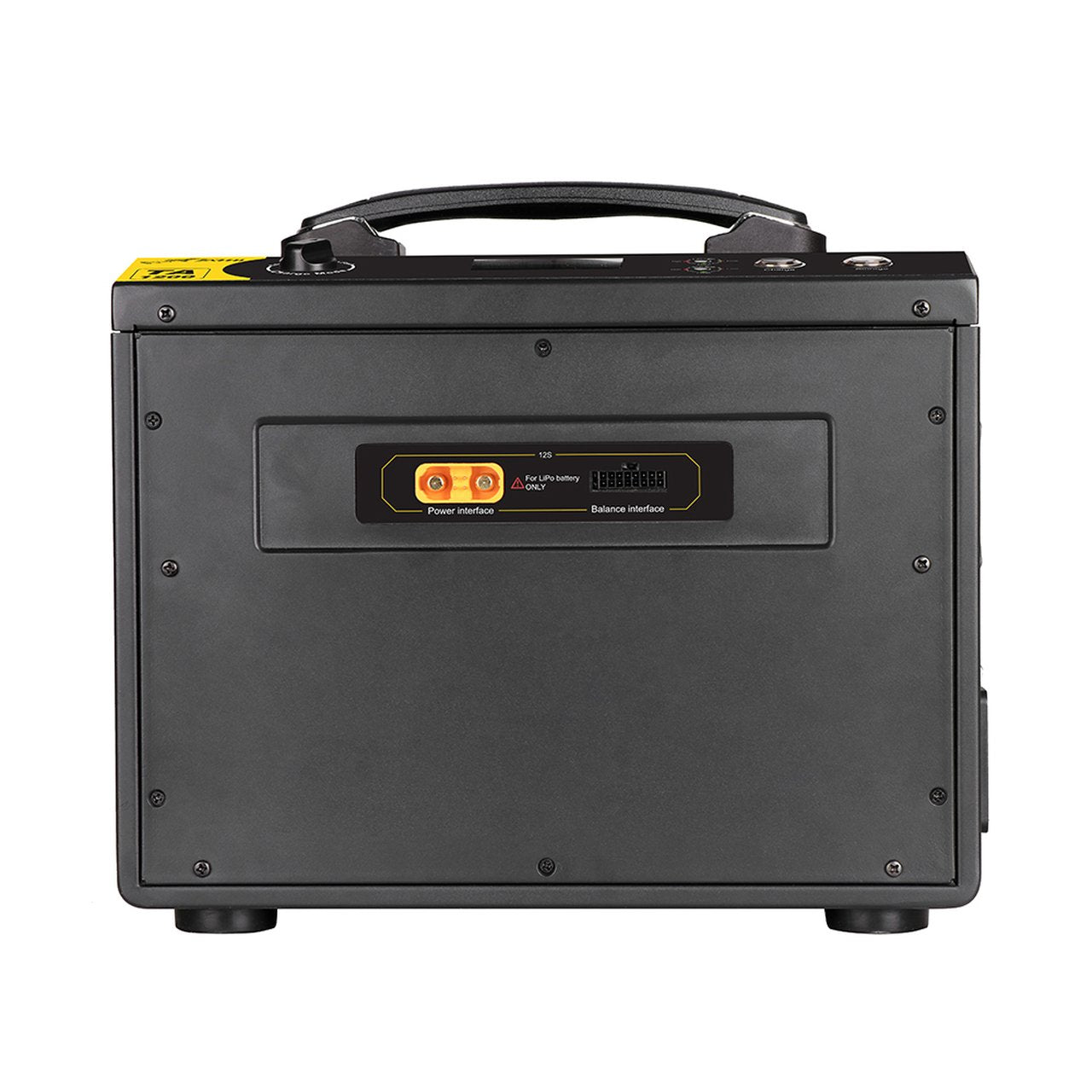

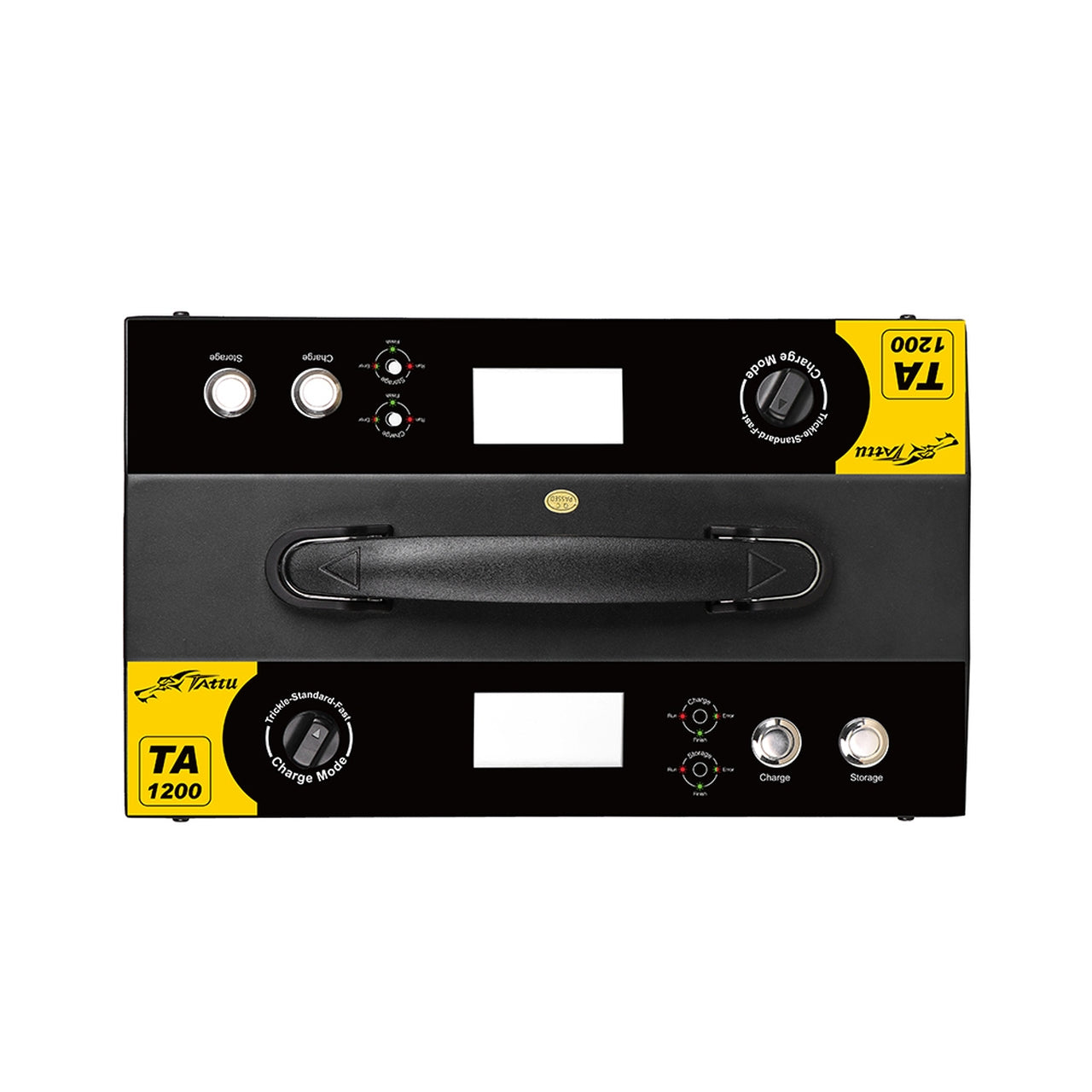

Tattu TA1200 Charger For 12S1P Lipo Batteries

Gens Ace Imars III Smart Balance RC Battery Charger

Also Known As:

Tattu R-Line Battery, Lipo Battery, charger Battery, TAA1200 Battery.

Description:

TA1200 charger is capable of charging 2 sets of lithium batteries simultaneously. The maximum power output is 750W under 100-120V and 1200 W under 180-240V per channel. User can select between Charging mode and Maintenance mode. Charging current is adjustable between 10A, 20A and 30A. It also has over-current, over charging, over temperature, safety cut off, fast equilibrium and status indicator functions. With the charging manager TA1200 and the chargers UB-MG-Fast/UB5 combined, single charging manager can connect up to 5 sets of batteries simultaneously and charges alternately for the 5 sets of batteries on basis of charging saturation from high to low. If the charger TA1200 connects with 2 charging managers UB5/UB -MG-FAST, It can charge 10 sets of battery simultaneously. With double LCD display equipped, the charger automatically indicates real time charging status, charging voltage, charging current, charging time, battery capacity and cell voltage.

SPECIFICATIONS

- Input: 100-240V 18A 50/60Hz
- Output: Max50.4V Max.25.0A
- Max Output Power: 100-120V Max Output Power 750W×2CH /180-240V Max Output       Power 1200W×2CH
- Type of Battery: LiPo / Smart Battery
- Cell Count:12S
- Channel Count: Dual Channel (10 Channels with 2 charging managers)
- Balance Tolerance: ±20mV
- Input Protection: Over Current Protection
- Output Protection: Over Voltage / Under Voltage / Short Circuit / Over Temperature /       Reverse Polarity
- Working Environment Temperature: 0℃-40℃/32℉~104℉.
- Cooling System: Cooling Air
- External Upgrade Port: Micro USB
- Dimensions: ≈325×190×280.5mm
- Weight: ≈9.2kg
