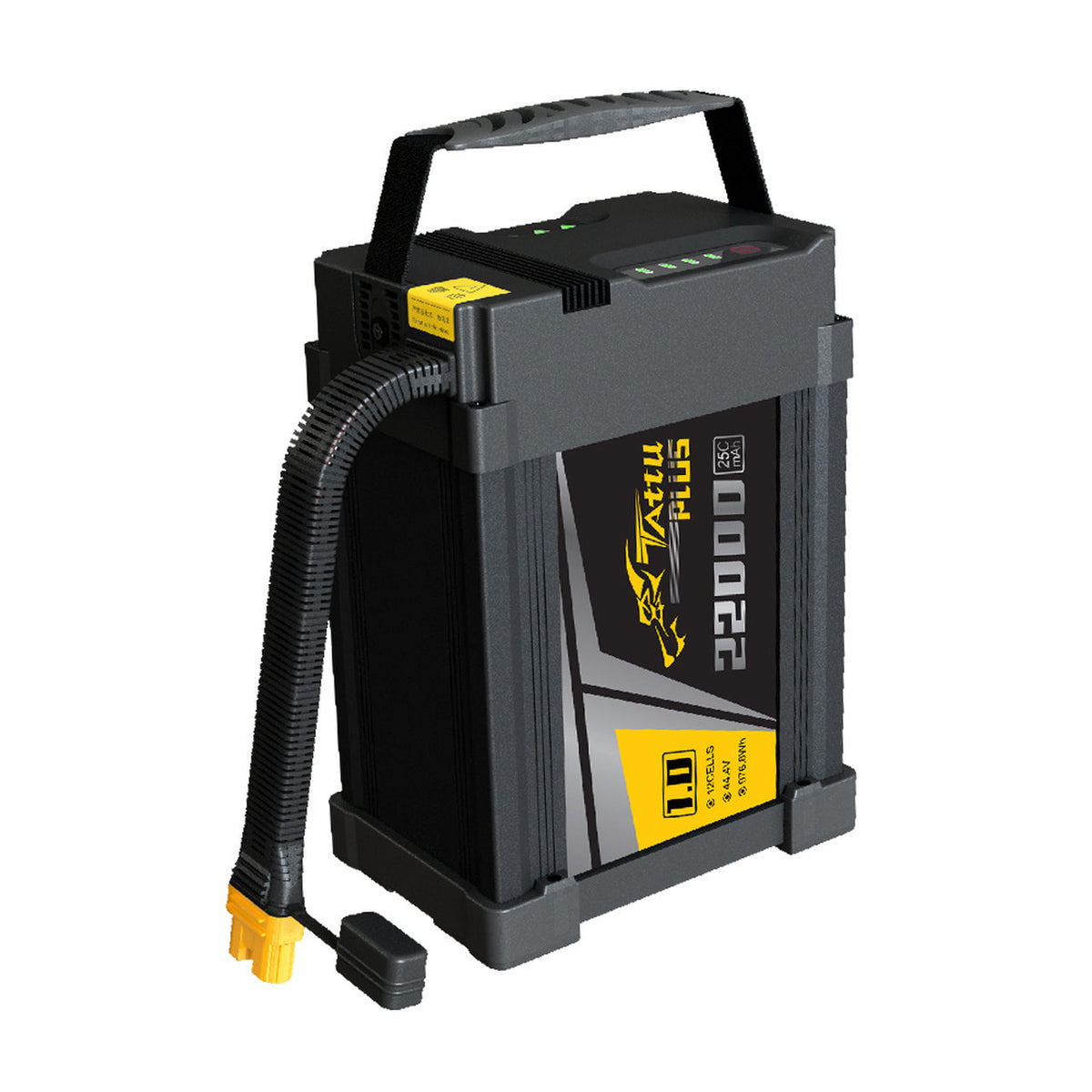

Tattu Plus 1.0 22000mAh 12S1P 44.4V 25C Lipo Smart Battery Pack With AS150U Plug
Tattu Plus 1.0 22000mAh 12S1P 44.4V 25C Lipo Smart Battery Pack With AS150U Plug
SKU: SKU: TA-PLUS1.0-25C-22000-12S1P-AS150
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
| Balancer Connector Type: | JST-XHR |
| Brand: | Tattu |
| Capacity(mAh): | 22000 |
| Configuration: | 12S1P |
| Connector Type: | AS150U |
| Discharge Rate (C): | 25 |
| Height(±2mm): | 116 |
| Is Featured Product: | No |
| Length(±5mm): | 235.5 |
| Max Burst discharge Rate (C): | 50 |
| Net Weight(±20g): | 5800 |
| Over 300wh: | Yes |
| Over_Power: | Yes |
| Part Number: | TA6392 |
| Preorder Config: | No |
| Sorting: | TattuLarge |
| UPC: | 889551006392 |
| Voltage(V): | 44.4 |
| Width(±2mm): | 172 |
| Wire Gauge: | 8# |
| Discharge Wire Length(mm): | 150 |
| Amount: | 1pcs/box |
| Capacity Range(mAh): | 10000-49999 |
| Part N: | TA-PLUS1.0-25C-22000-12S1P-AS150 |
Tattu Plus 1.0 22000mAh 12S1P 44.4V 25C Lipo Smart Battery Pack With AS150U Plug
Also Known As:
Tattu R-Line Battery, Lipo Battery, JST-XHR Battery, Tattularge Battery, TA-PLUS1.0-25C-22000-12S1P-AS150 Battery
Description:
Tattu Plus 1.0 12S series is suitable for agricultural plant protection, security mapping, power inspection, and other industries. The whole system includes data acquisition, security warning, power calculation, automatic equalization, charging warning, discharge anti-sparking, support charging by charging butler, abnormal state alarm, human-computer interaction, history query, parameter configuration, etc. Also can access the battery pack status and battery pack working history data by CAN/SMBU communication port and host computer software.
Features:
- Communication protocol
- Communication protection
- Fuel gauge
- Self-inspection
- Using a time log
- Current detection
- Ultra-Low power consumption
- Abnormal log
- Local after-sales service (located in Dublin, CA)
