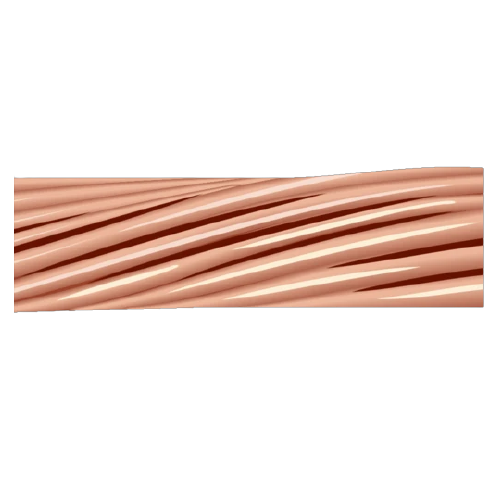

Stranded Bare Copper Wire

Stranded Bare Copper Wire

Product Information
Length
Price (Per FT.)
Action
Length
/FT
Price (Per FT.)

$0.55

Action
Length
/FT
Price (Per FT.)

$0.89

Action
Length
/FT
Price (Per FT.)

$1.22

Action
Length
/FT
Price (Per FT.)
Call 516-472-0650 for pricing
Action
Length
/FT
Price (Per FT.)

$2.09

Action
Length
/FT
Price (Per FT.)
Call 516-472-0650 for pricing
Action
Length
/FT
Price (Per FT.)
Call 516-472-0650 for pricing
Action
Length
/FT
Price (Per FT.)
Call 516-472-0650 for pricing
Action
Length
/FT
Price (Per FT.)

$4.15

Action
Length
/FT
Price (Per FT.)
Call 516-472-0650 for pricing
Action
Length
/FT
Price (Per FT.)
Call 516-472-0650 for pricing
Action
Length
/FT
Price (Per FT.)

$6.39

Action
Length
/FT
Price (Per FT.)

$10.99

Action
Length
/FT
Price (Per FT.)
Call 516-472-0650 for pricing
Action
Length
/FT
Price (Per FT.)
Call 516-472-0650 for pricing
Action
Length
/FT
Price (Per FT.)
Call 516-472-0650 for pricing
Action
Length
/FT
Price (Per FT.)
Call 516-472-0650 for pricing
Action
Length
/FT
Price (Per FT.)
Call 516-472-0650 for pricing
Action
Length
/FT
Price (Per FT.)
Call 516-472-0650 for pricing
Action
Length
/FT
Price (Per FT.)
Call 516-472-0650 for pricing
Action

Product Details

Nassau National Cable’s selection of Bare Copper Wire meets ASTM specifications and is available in four different classifications; Class AA, Class A, Class B, and Class C.

Class AA Bare Copper Wire is made for use as overhead transmission line. This classification of copper is one of the most rigid types of copper wire. Rigidity is a useful trait when installing overhead lines because more flexible cables tend to sag over time. Class AA Bare Copper Wire shows minimal sagging and offers extremely powerful conductivity.

Bare Copper Wire Classes A thru C are typically used with a weatherproof jacket or insulation and they are rated according to flexibility. These cables are more commonly used in direct burial, conduit, cable tray, and approved raceway applications. Class A Bare Copper Wire offers increased flexibility compared to Class AA, but falls on the more rigid side of the spectrum of Bare Copper Wire. Class A Bare Copper Wire is used when flexibility is not a major factor, or when a more rigid cable is needed.

Class B and C Bare Copper Wire is preferred when flexibility is required. These cables undergo a process in which they are heated and slowly cooled. The process releases internal stress within the copper, enhancing its flexibility. The end product is a malleable copper cable that offers the same powerful conductive properties as standard cable.

Applications:
Solid and stranded (classes AA and A) bare copper are suitable for overhead transmission and distribution applications. Stranded conductor of greater flexibility (classes B and C) are suitable for uninsulated hook up, jumpers, and grounds in electrical construction. Soft Drawn copper is unilay construction.

Specifications:
Bare copper wire and cable meets or exceeds the following ASTM specifications:

  • B-1 Hard-Drawn Copper Wire.
  • B-2 Medium-Hard Copper Wire.
  • B-3 Soft or Annealed Copper Wire.
  • B-787 19 Wire Combination Unilay-Stranded Soft copper wire.
  • B-8 Concentric-Lay-Stranded Hard, Medium-Hard or Soft Copper Conductor.

Construction:
Bare copper, solid or stranded. Available in tempers hard, medium-hard, or soft. Stranded conductors are concentrically stranded in hard and medium-hard tempers and are Combination Unilay stranded in the soft-drawn temper.

Size (AWG or KCMIL) Size (AWG) Hard - Drawn
Rated Strength (lbs.)
Medium - Drawn
Rated Strength (lbs.)
Action
BCW 14 Gauge 14 213.5 -- Request a Quote
BCW 13 Gauge 13 268.0 -- Request a Quote
BCW 12 Gauge 12 336.9 -- Request a Quote
BCW 11 Gauge 11 422.9 -- Request a Quote
BCW 10 Gauge 10 529.2 -- Request a Quote
BCW 9 Gauge 9 661.2 -- Request a Quote
BCW 8 Gauge 8 826.0 -- Request a Quote
BCW 7 Gauge 7 1030.0 -- Request a Quote
BCW 6 Gauge 6 1280.0 -- Request a Quote
BCW 5 Gauge 5 1591.0 -- Request a Quote
BCW 4 Gauge 4 1970.0 -- Request a Quotee
BCW 3 Gauge 3 2439.0 -- Request a Quote
BCW 2 Gauge 2 3003.0 -- Request a Quote
BCW 1 Gauge 1 3688.0 -- Request a Quote
BCW 8 Gauge 8 777 610 Request a Quote
BCW 6 Gauge 6 1228 959 Request a Quote
BCW 4 Gauge 4 1938 1505 Request a Quote
BCW 3 Gauge 3 2433 1885 Request a Quote
BCW 2 Gauge 2 3050 2360 Request a Quote
BCW 1 Gauge 1 3801 2955 Request a Quote
BCW 1/0 Gauge 1/0 4752 3705 Request a Quote
BCW 2/0 Gauge 2/0 5926 4640 Request a Quote
BCW 2/0 Gauge 2/0 6690 4765 Request a Quote
BCW 3/0 Gauge 3/0 7366 5812 Request a Quote
BCW 4/0 Gauge 4/0 9154 7278 Request a Quote
BCW 4/0 Gauge 4/0 9617 7479 Request a Quote
BCW 250 MCM 250 11360 8836 Request a Quote
BCW 250 MCM 250 11600 3952 Request a Quote
BCW 300 MCM 300 13510 10530 Request a Quote
BCW 350 MCM 350 15590 12200 Request a Quote
BCW 500 MCM 500 22510 17550 Request a Quote
BCW 600 MCM 600 27020 21060 Request a Quote
BCW 750 MCM 750 34090 26510 Request a Quote
BCW 1000 MCM 1000 45030 35100 Request a Quote
