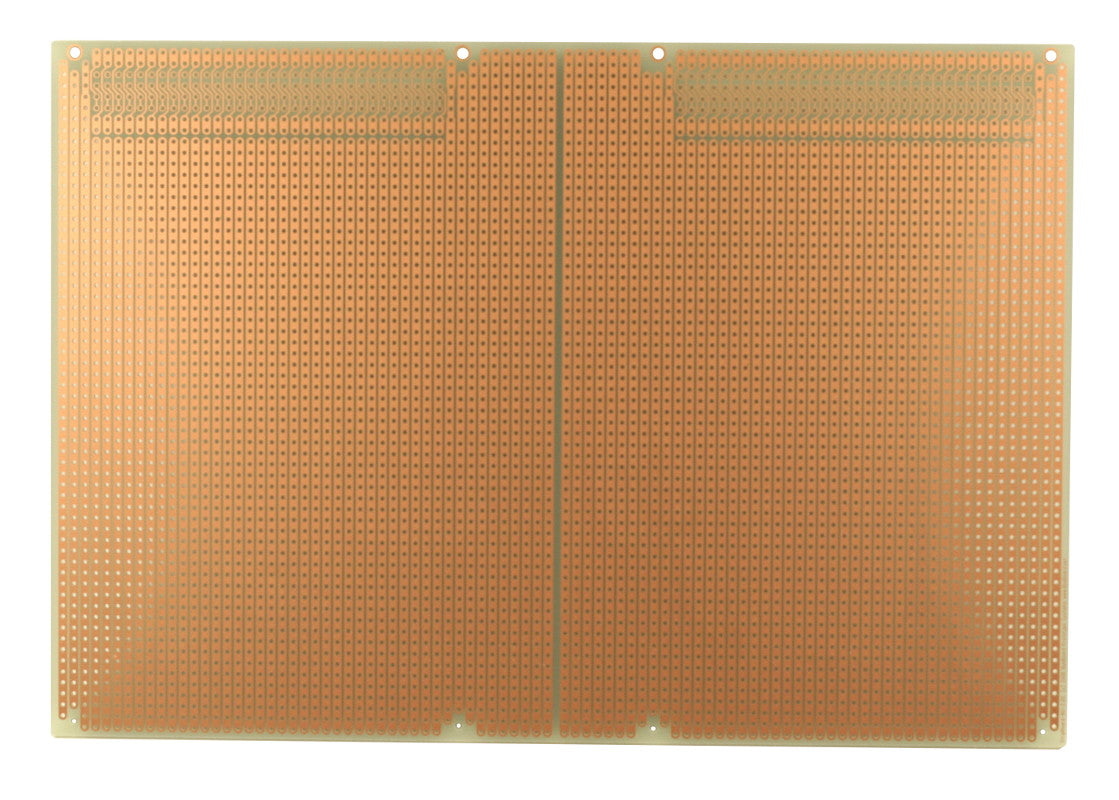

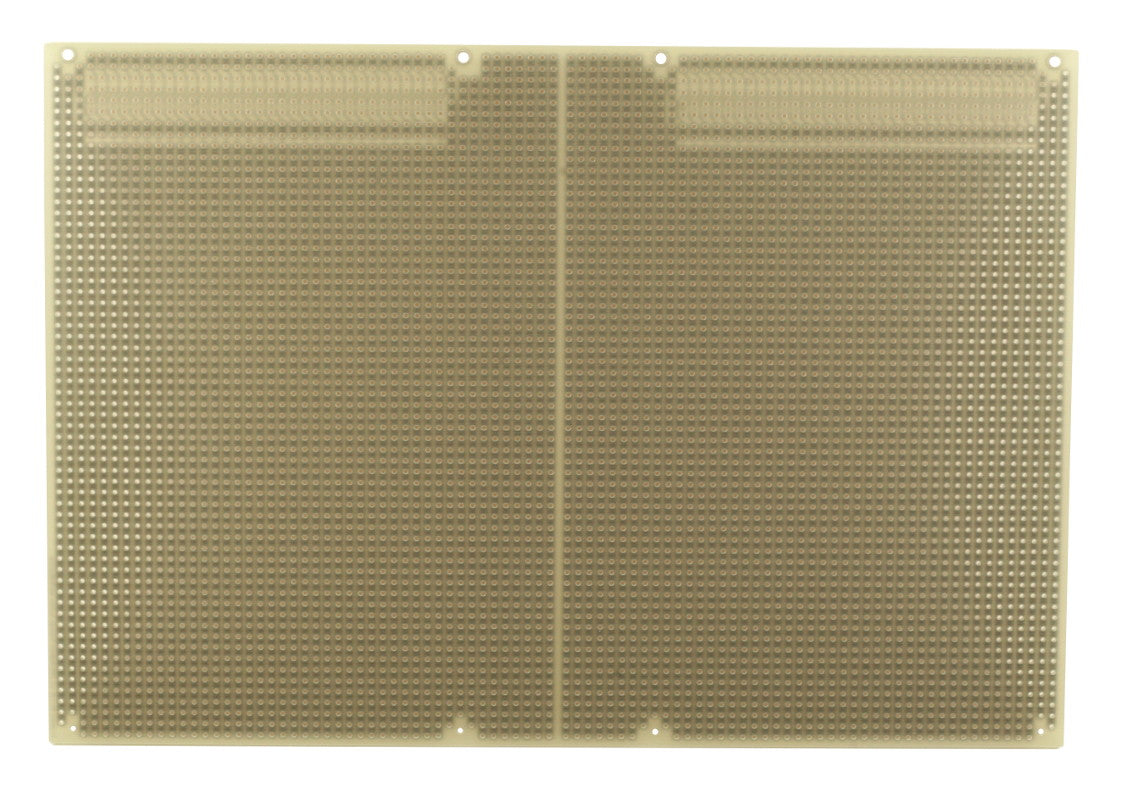

ST6U StripBoard

Description:

ST6U StripBoard is a prototyping circuit board with a standard stripboard pattern, with tracks running the length of the board It has 01" hole spacing for DIP integrated circuits and headers and other parts ST6U is a standard double height (6U) Eurocard/VME size Off the shelf enclosures and card cages are available ST6U accepts two standard 64 pin or 96 pin DIN-41612 connector for backplane applications or expansion.

The connector footprint gives easy access to connector rows 1 and 3 Row 2 has unconnected pads ST6U has higher quality than traditional stripboard The holes are drilled, not punched The base material is high-quality FR4 glass epoxy board It has better stability and moisture resistance than boards using phenolic or SRBP (synthetic resin bonded paper) which can warp with exposure to humidity.

Features and Benefits:

•Standard stripboard pattern, with tracks running the length of the board..

•Single-sided high-quality FR4 glass-epoxy circuit board..

•1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible..

•90 x 62 holes (90 strips), 0.037" holes are drilled on 0.1" (2.54mm) centers..

•Standard double height (6U) Eurocard/VME size: 9.2" wide, 6.3" long, 1/16" thick (233.4 x 160 x 1.6mm)..
