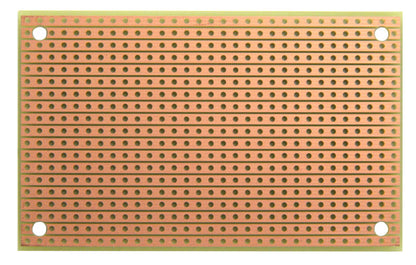

ST1 StripBoard

ST1 StripBoard

SKU: SKU: ST1   Download PDF

Qty:
Regular price Now $3.30   Web pricing policy
Regular price BEFORE   Sale price Now $3.30 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information
Resources

Description:

ST1 StripBoard is a prototyping circuit board with a standard long strip pattern Tracks run the length of the board The long tracks are convenient for power and ground rails, and for signal buses Strips can be cut as needed to make smaller tracks and circuit pads It has 01" hole spacing for DIP integrated circuits and headers and other parts ST1 has higher quality than traditional stripboard The holes are drilled, not punched.

The base material is high-quality FR4 glass epoxy board It has better stability and moisture resistance than boards using phenolic or SRBP (synthetic resin bonded paper), which can warp with exposure to humidity The size of the board is 50 x 80mm (197 x 315in) and it is 1/16" thick (16mm).

Features and Benefits:

    •Standard stripboard pattern, with tracks running the length of the board..

    •Single-sided high-quality FR4 glass-epoxy circuit board..

    •1oz/ft2 copper with an anti-tarnish coating for easy soldering..

    •Lead free and RoHS compatible..

    •31 x 19 holes (19 strips), 0.037" holes are drilled on 0.1" (2.54mm) centers..

    •Four 0.125” mounting holes..

Specifications:

 Size: 50 x 80mm (1.97 x 3.15in)
 Thickness: 1/16" (1.6mm)
 Copper Weight: 1oz/ft2
 Hole Spacing: 0.1" (2.54mm) centers
 Mounting Holes: Four 0.125” mounting holes
 Base Material: High-quality FR4 glass epoxy board
