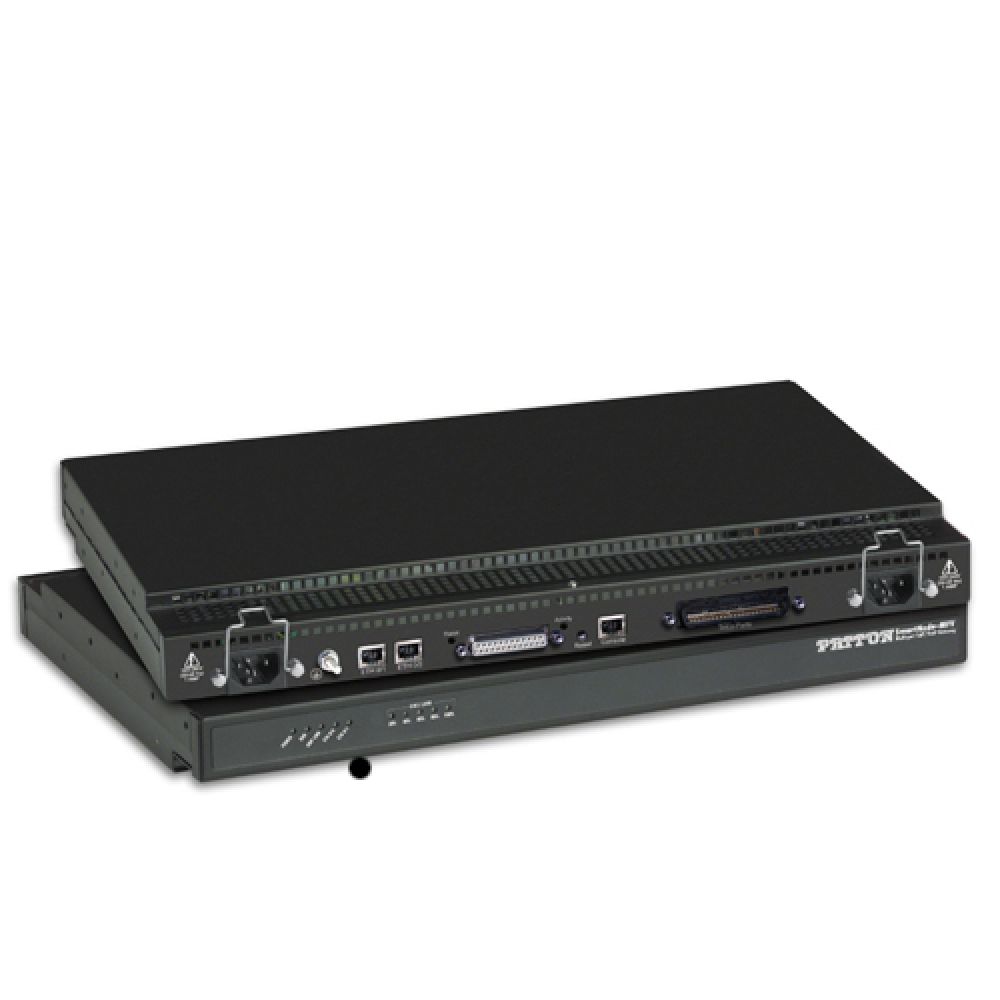

SN4916/JO/R48 - 12-32 Port VoIP Gateway with Advanced QoS Features

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Patton SmartNode SN4912/JO/R48 IP Channel Bank, an ideal solution for businesses that need to manage between 12 and 32 simultaneous analog voice or fax calls This innovative device seamlessly converts any existing PBX system, analog call-center, or ISP MDU service into a robust packet-voice system, eliminating the need for expensive new equipment or upgrades Part of the versatile SN4900 Patton gateway Series, this model offers configurations of 12 to 32 FXO or FXS ports—easily identifiable by 'JO' for FXO and 'JS' for FXS in the model number.

It also supports various WAN interfaces, including V35, X21, T1, E1, ADSL, and GSHDSL, ensuring broad compatibility The SN4900 Series is equipped with leading VoIP signaling protocols such as SIP, H323, and T38 Fax Relay, as well as offerings for fax-bypass and modem-bypass features These elements enable seamless integration with top soft switches and VoIP services Enhance your communication quality with built-in Quality of Service (QoS) functionalities, which prioritize voice traffic and manage data with customizable service profiles.

Patton's advanced DownStreamQoS guarantees clear and consistent voice calls, even on best-effort networks like the Internet Packet classification via 8021p, TOS, and DiffServ aids in straightforward integration into managed QoS networks For comprehensive security, the SN4900 Series allows the creation of tailored security profiles IPSec capabilities provide data integrity, authentication, anti-replay measures, and confidentiality.

The device also includes firewall functions with Access Control Lists (ACLs), filtering options for IP addresses and ports, protection against Denial of Service (DoS) attacks, and utilizes a second Ethernet port as a DMZ With straightforward setup, dependable operation, and compatibility with third-party systems, the SN4900 Series IP Channel Bank is essential for today’s cost-effective business solutions, offering long-term investment protection for your communication needs.

Features and Benefits:

•12, 16, 24 or 32 FXS or FXO ports— Simultaneous voice or fax calls on all ports.

•Full SIP and T.38 support— Supports the complete range of industry standard VoIP: SIP, H.323, T.38 fax, fax and modem bypass, DTMF relay.

•Secure Toll-Quality VoIP— DownStreamQoS and Voice-over-VPN with adaptive traffic management and shaping for maximum voice quality and secure voice communication.

•Complete Access Routing— 10/100 Ethernet ports with auto MDI-X. Access router with NAT, Firewall, PPPoE, DHCP, DynDNS, multiple VLANs & VPN with IPSec.

•Optional Integrated WAN uplink— Choose from V.35, X.21, T1/E1, ADSL or G.SHDSL data interfaces in addition to the two Ethernet ports.

•Outstanding Interoperability— Interoperable for voice and T.38 fax with leading SIP service providers, soft-switch vendors and Asterisk IP-PBX.

Specifications:
