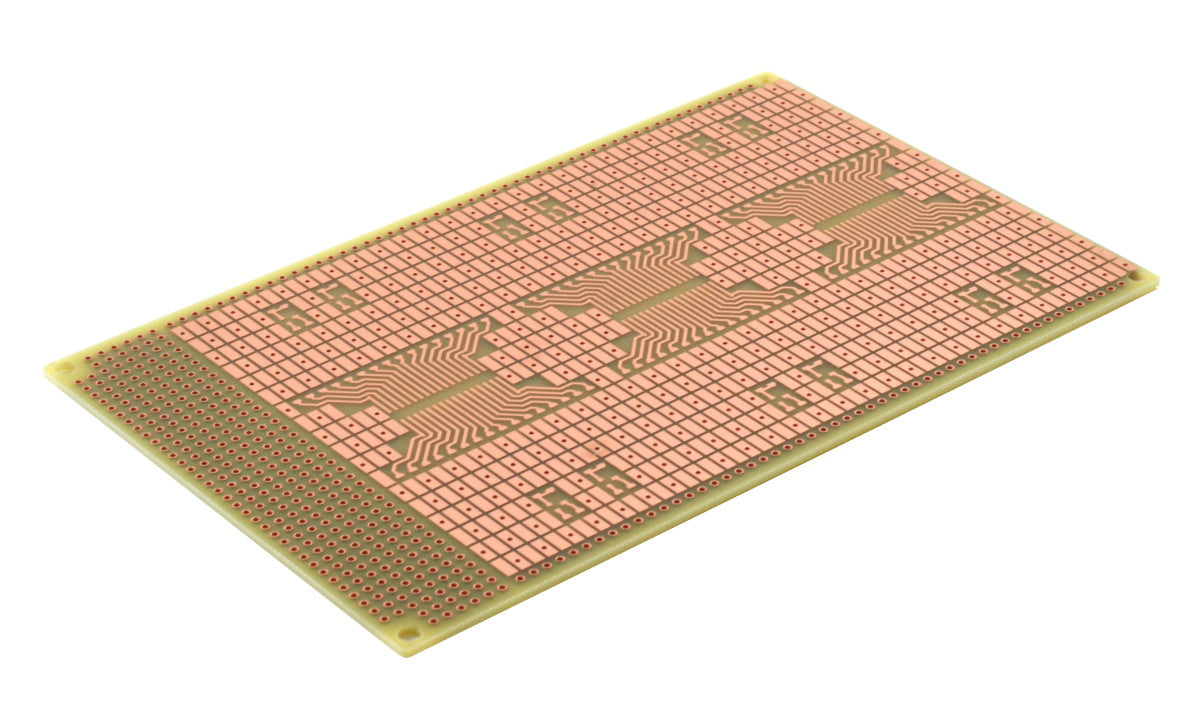

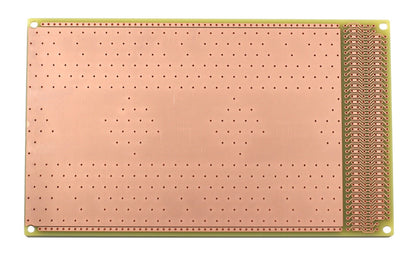

SMT3U-PTH Prototyping Circuit Board

Description:

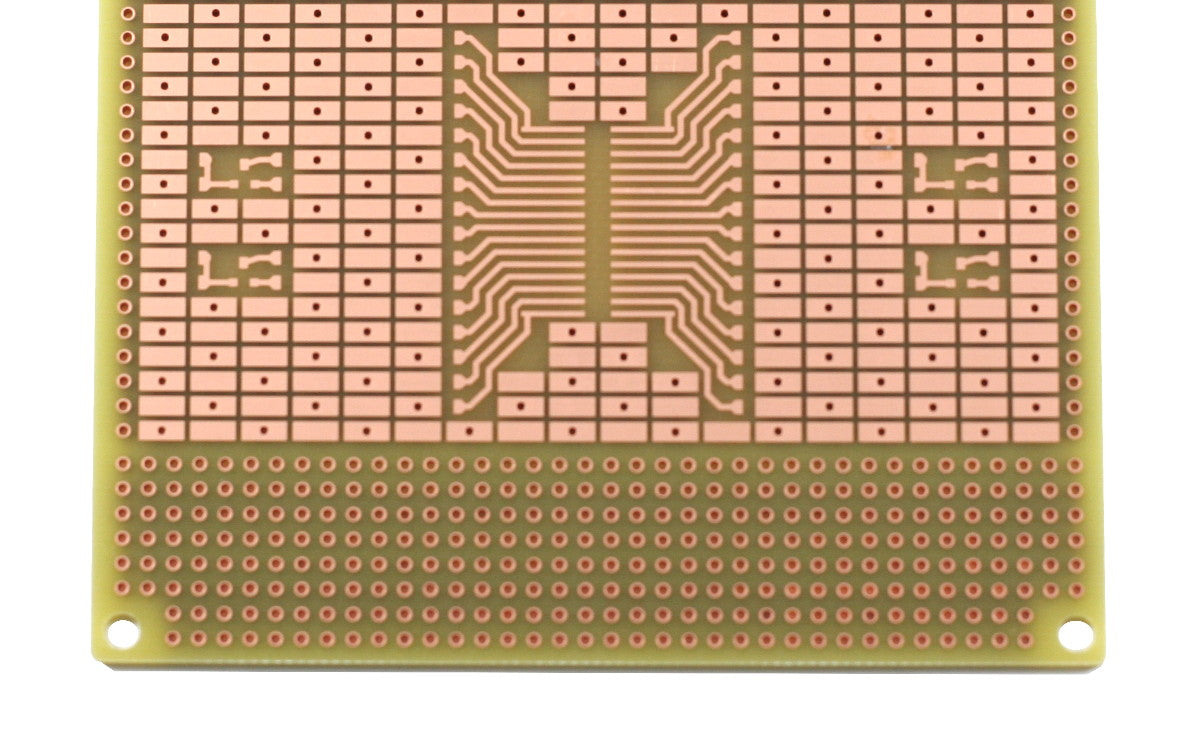

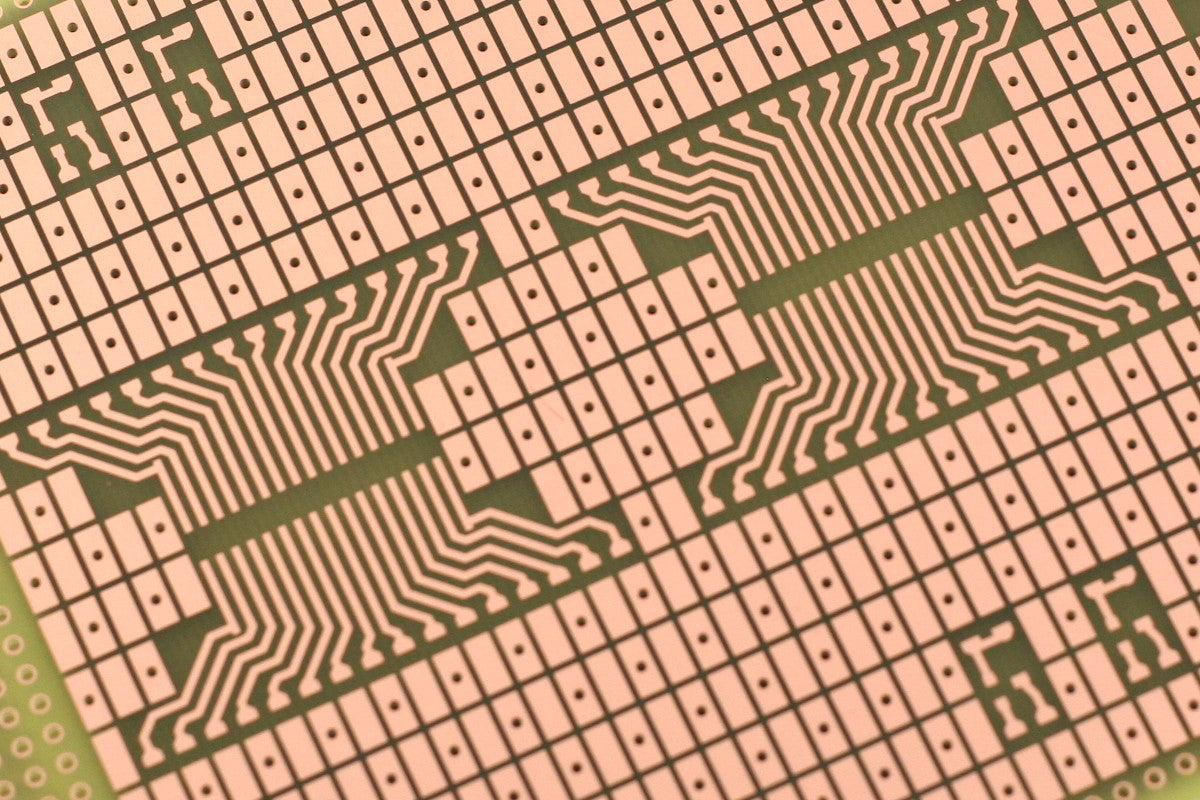

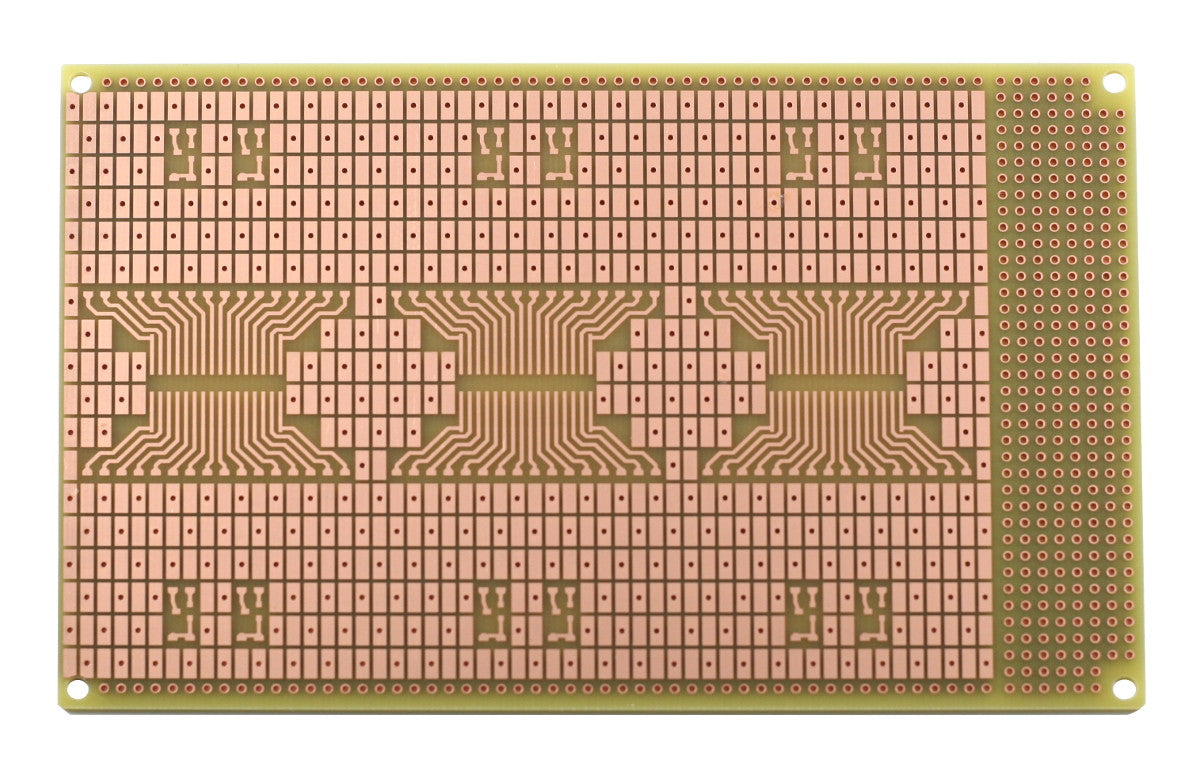

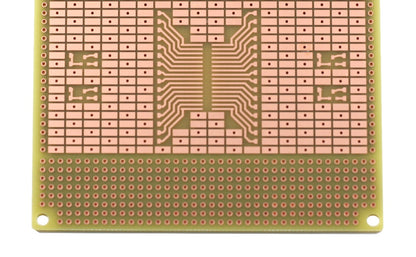

SMT3U is a prototyping circuit board designed for 0805, 1206, SOIC, SOT, and other SMT components It features three SOIC-32 footprints, each connected to 32 pads The pads are designed with a 01" spacing, allowing for the attachment of DIP ICs and headers The board includes a through-hole prototyping area for headers and power connections, and the zig-zag circuit pattern facilitates access to both sides of the components.

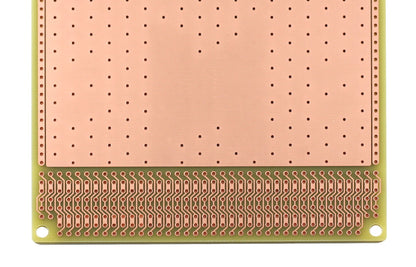

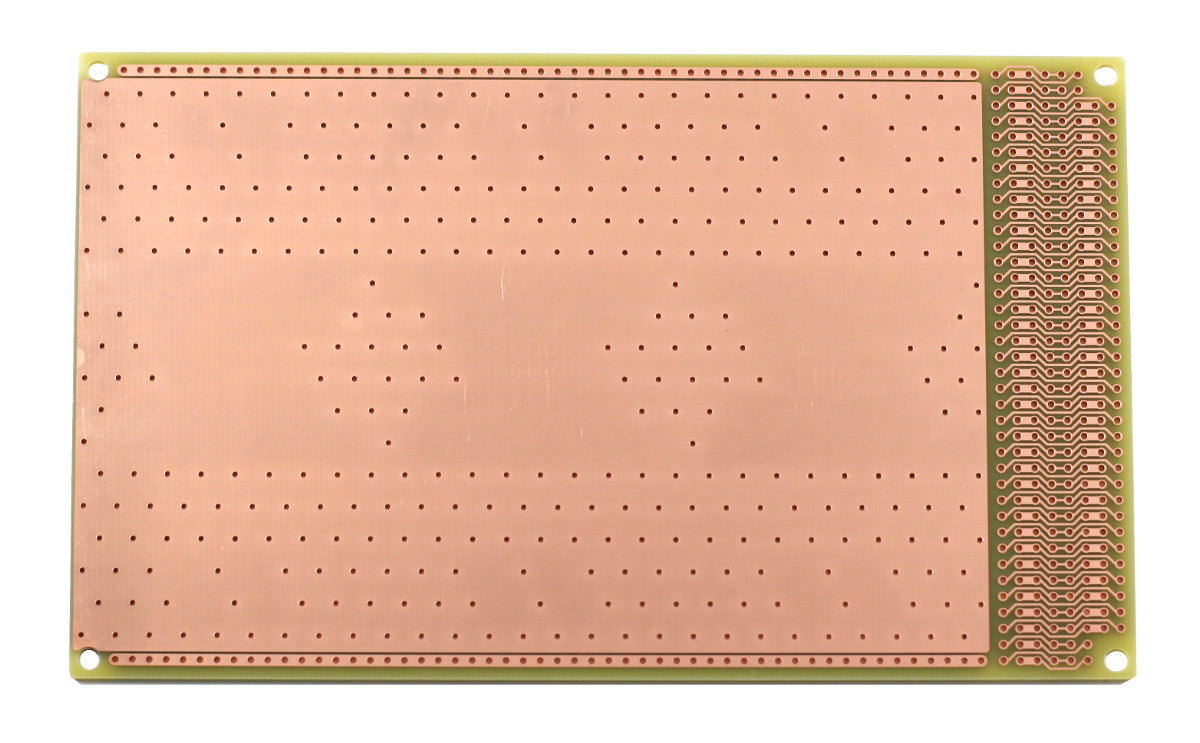

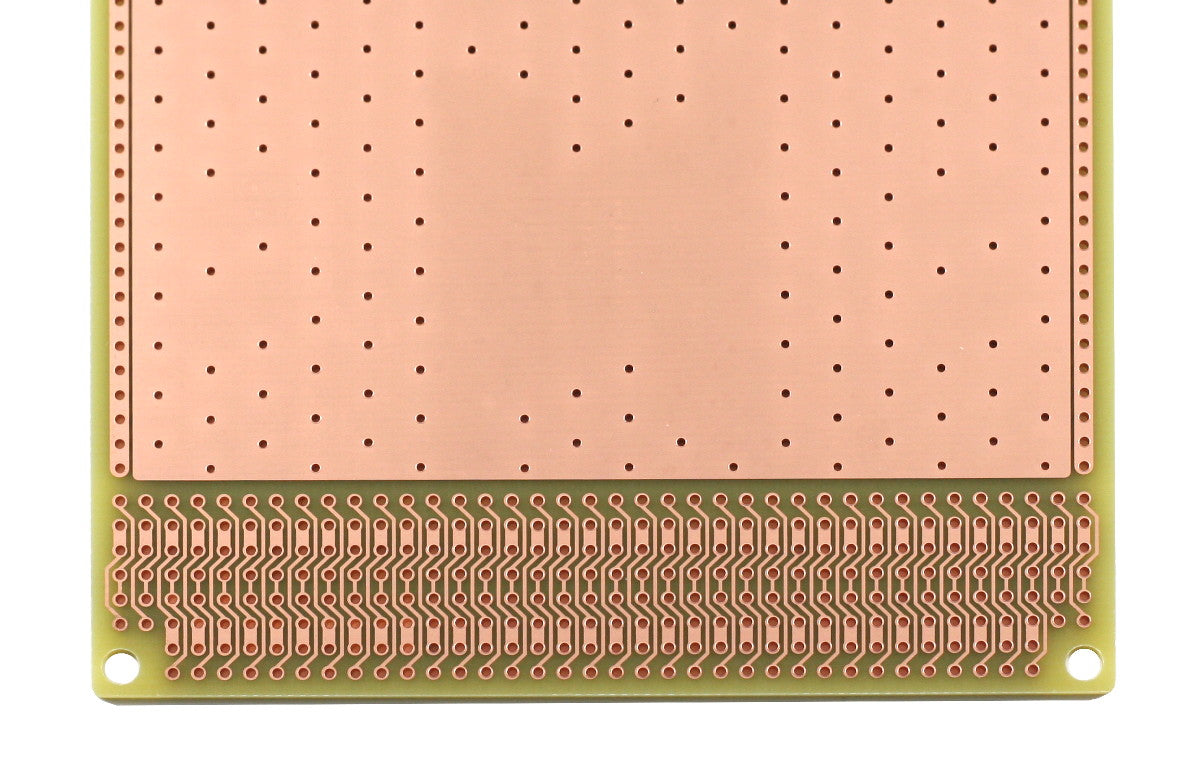

A solid ground plane helps in making ground connections and reduces noise for RF and high-speed logic circuits Every second SMT rectangle pad comes with a plated hole for easier grounding Users can easily isolate pads from the ground plane by scoring the edges of the holes Additionally, the board has two power rails and four mounting holes.

Features and Benefits:

•Double-sided high-quality FR4 glass-epoxy circuit board with plated holes.

•0.1” x 0.2 rectangular SMT pads for surface mount components.

•Three SOIC-32 footprints.

•1oz/ft2 copper with anti-tarnish coating for easy soldering.

•Lead free and RoHS compatible.

•Standard single height (3U) Eurocard/VME size.
