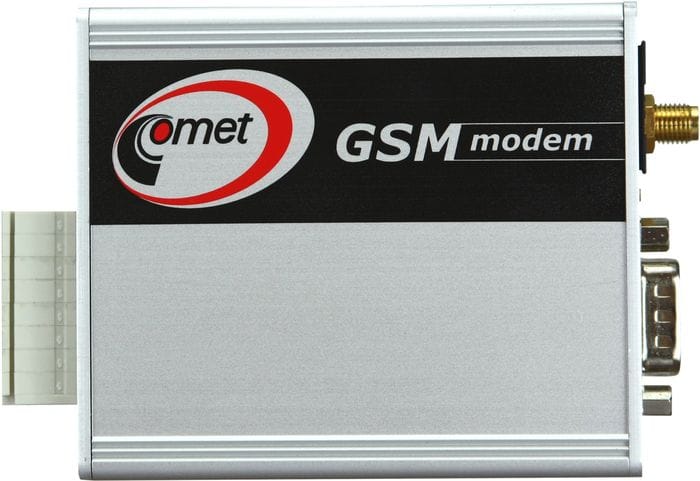

SLU302-M2M GSM/GPRS MODEM for data loggers

SLU302-M2M GSM/GPRS MODEM for data loggers

SKU: LP040   Download PDF

Qty:
Now $100.00   Web pricing policy
BEFORE   Now $100.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

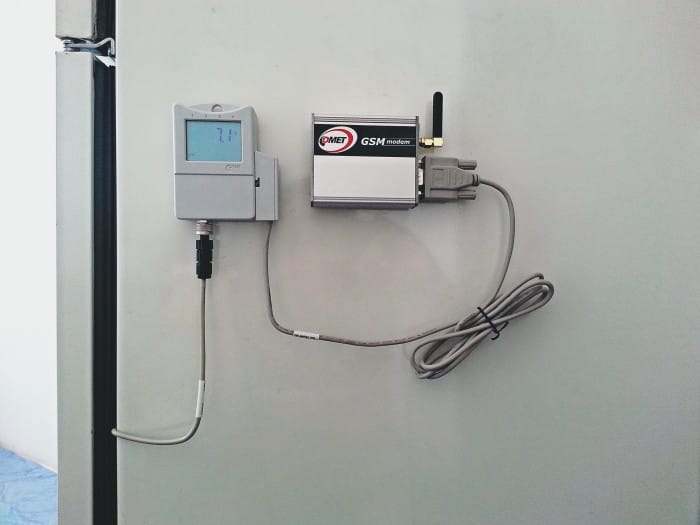

GSM/GPRS modem for data loggers of Sxxxx, Rxxxx, Gxxxx families The modem comes with a SIM card holder and is designed to send alarm SMS It allows full communication with data logger via GPRS, enabling downloading of logger configuration Additional accessories are not included.

Features and Benefits:

    •Sends alarm SMS.

    •Allows full communication with data logger via GPRS.

    •Enables downloading of logger configuration.

    •Compatible with SIM card types of 1.8V or 3V.

    •Supports multislot class 12 GPRS.

Specifications:

 Communication with the device RS232 (connector Canon 9) for the COM adapter
 Frequency band 850/900/1800/1900 MHz
 Output power Class 4 (+33dBm ±2dB) for EGSM850; Class 4 (+33dBm ±2dB) for EGSM900; Class 1 (+30dBm ±2dB) for GSM1800; Class 1 (+30dBm ±2dB) for GSM1900
 SIM card type 1.8V or 3V
 GPRS class multislot class 12
 Antenna 50 ohm, SMA connector
 Supply terminal block removable, WAGO 734, max. size of conductors 1.5 mm2
 IP code IP30
 Power supply external 9-32V DC, peak input up to 10W
 Operating temperature range from -30°C to +65°C
 Operating position arbitrary
 Device mounting (optional equipment) self-adhesive Dual Lock, wall holder, DIN rail holder
 Storage conditions temperature from -40°C to +85°C
 Dimensions 105 x 71 x 24 mm (without antenna and holders)
 Box material anodized aluminum
