Service Wire Feeder 3 Conductor MC XHHW-2 600 Volt Copper Wire

Service Wire Feeder 3 Conductor MC XHHW-2 600 Volt Copper Wire

Select gauge from drop-down menu for prices:

Service Wire Feeder 3 Conductor MC XHHW-2 600 Volt Copper Wire

Product Details

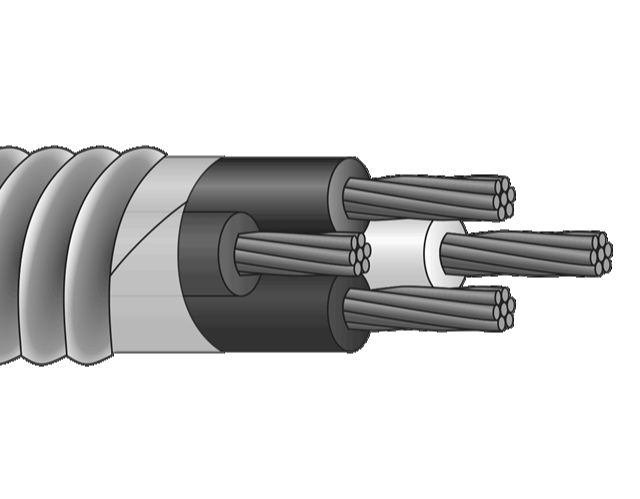

Description: 3 or 4 conductors, stranded, insulated with heat and moisture resistant crosslinked polyethylene (type XHHW-2), phase identified and cabled with suitable fillers** and green or bare ground conductor. Cable core covered with binder tape and aluminum or galvanized steel interlocked armor. Jacket available upon request.

Application: Cost effective replacement for conduit and wire; for service, branch and feeder circuits; and commercial, industrial & utility applications. For use in theatres (article 520), motion picture and TV studios (article 530) and places of assembly with more than 100 people.

Standards:
• UL 1569
• ICEA S-95-658/NEMA WC-70 Cable
• Tray Rated NEC Article 330 (can be messenger supported)
• Flame Rated: Two-hour Firewall Temperature Rated at 90°C Wet/Dry
• Color Code: 3 Conductor - Black, Red and White (#8 AWG - #1 AWG)
• Method 4 (1/0 AWG and larger) Green Ground (#8 AWG - #1 AWG)
• Bare Ground (1/0 AWG and larger)
• RoHS Compliant
