Service Wire Feeder 600 MCM 3 Conductor MC XHHW-2 600 Volt Copper Wire MC600/3

Service Wire Feeder 600 MCM 3 Conductor MC XHHW-2 600 Volt Copper Wire MC600/3

Select gauge from drop-down menu for prices:

Service Wire Feeder 600 MCM 3 Conductor MC XHHW-2 600 Volt Copper Wire MC600/3
Service Wire Feeder 600 MCM 3 Conductor MC XHHW-2 600 Volt Copper Wire MC600/3

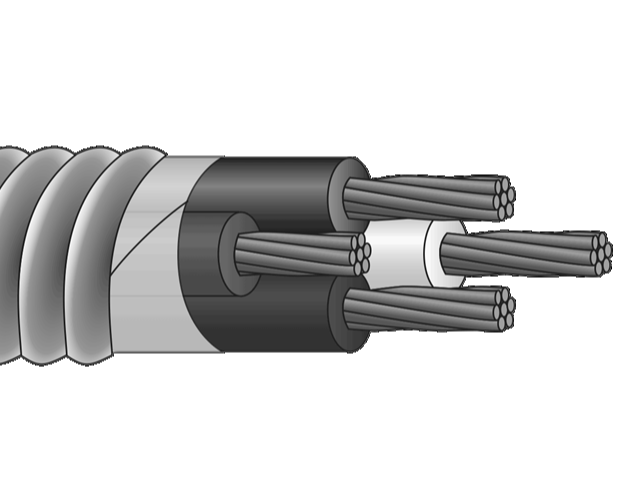

Description: 3 or 4 conductors, stranded, insulated with heat and moisture resistant crosslinked polyethylene (type XHHW-2), phase identified and cabled with suitable fillers** and green or bare ground conductor. Cable core covered with binder tape and aluminum or galvanized steel interlocked armor. Jacket available upon request.

Application: Cost effective replacement for conduit and wire; for service, branch and feeder circuits; and commercial, industrial & utility applications. For use in theatres (article 520), motion picture and TV studios (article 530) and places of assembly with more than 100 people.

Standards:
• UL 1569
• ICEA S-95-658/NEMA WC-70 Cable
• Tray Rated NEC Article 330 (can be messenger supported)
• Flame Rated: Two-hour Firewall Temperature Rated at 90°C Wet/Dry
• Color Code: 3 Conductor - Black, Red and White (#8 AWG - #1 AWG)
• Method 4 (1/0 AWG and larger) Green Ground (#8 AWG - #1 AWG)
• Bare Ground (1/0 AWG and larger)
• RoHS Compliant

technical specification:
size awg or kcmil
600
strand (no.) 61
insulation thickness (mils) 80
insulated/bare grounding conductor (awg) 2
diameter over armor (inch) 2.55
approx. net weight (lb/1000') alum. armor 6,936
approx. net weight (lb/1000') galv. armor 7,468
ampacity*(30°c ambient) 90°c wet/dry
475
service wire part number MC600/3
