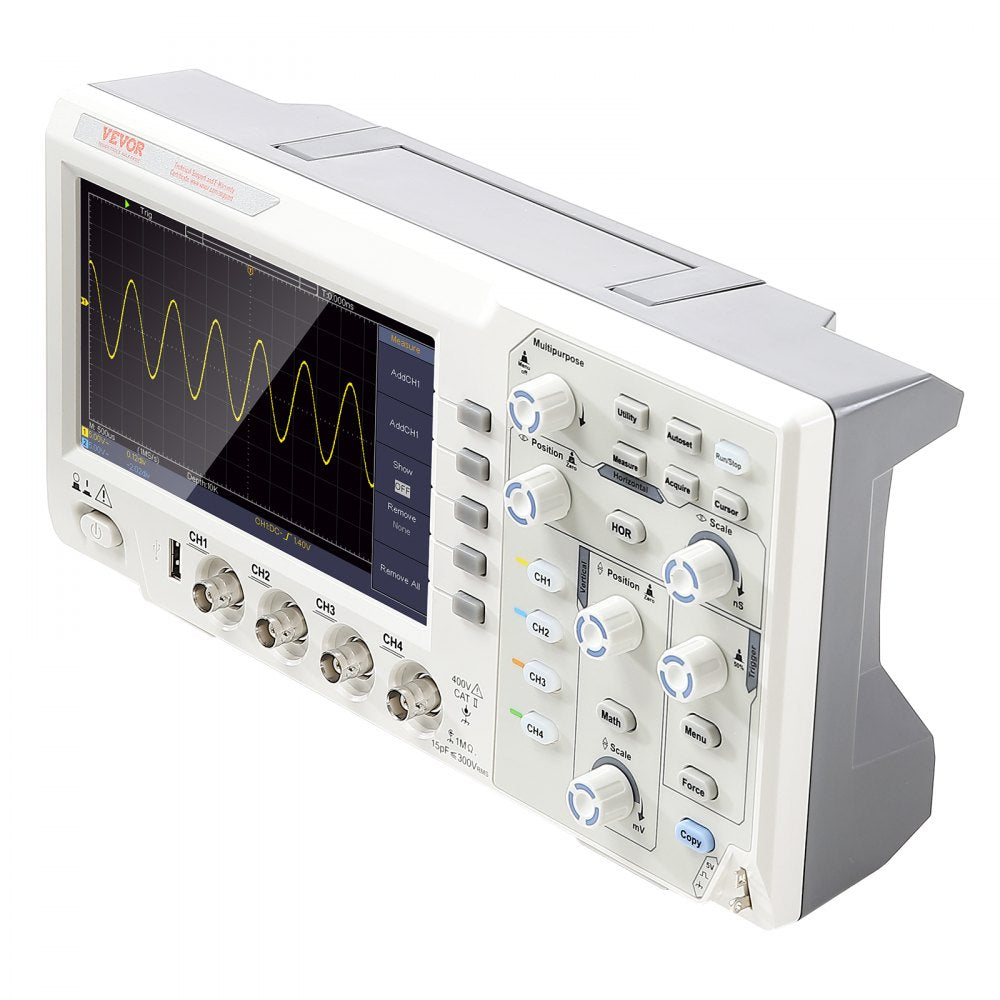

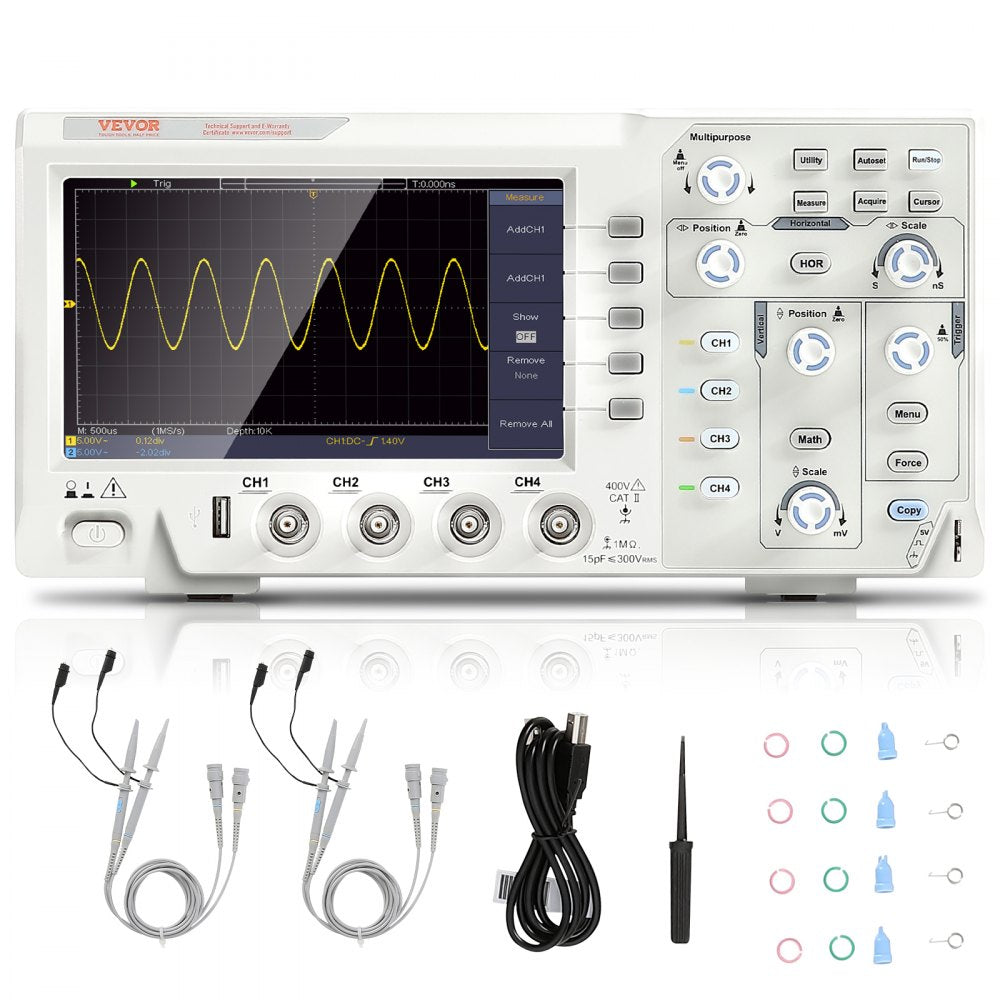

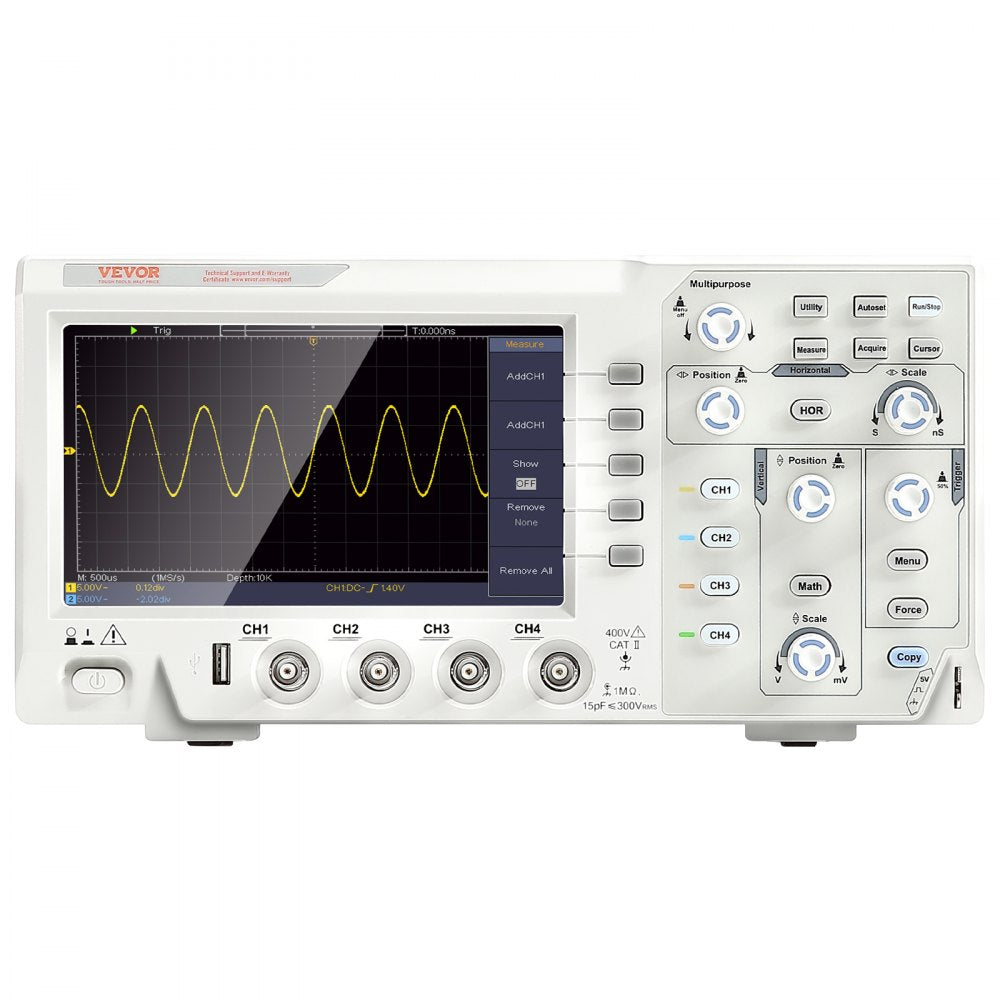

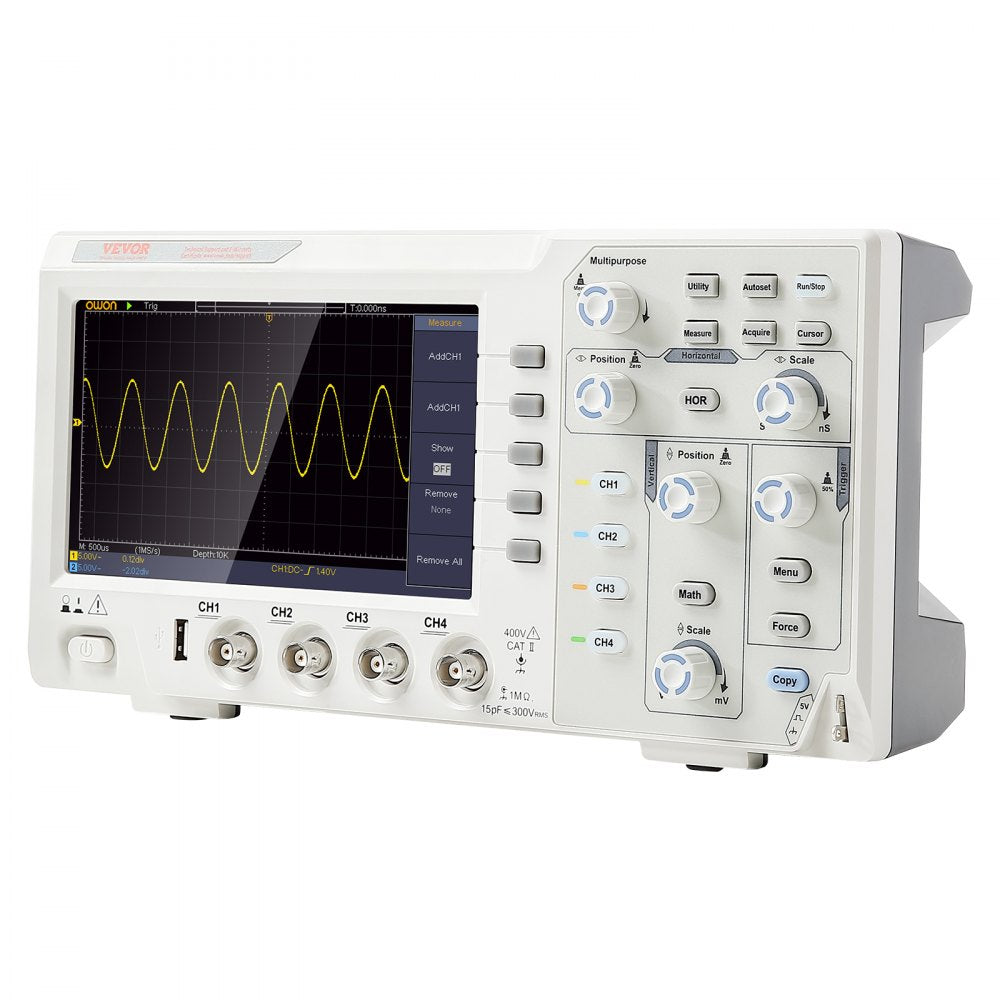

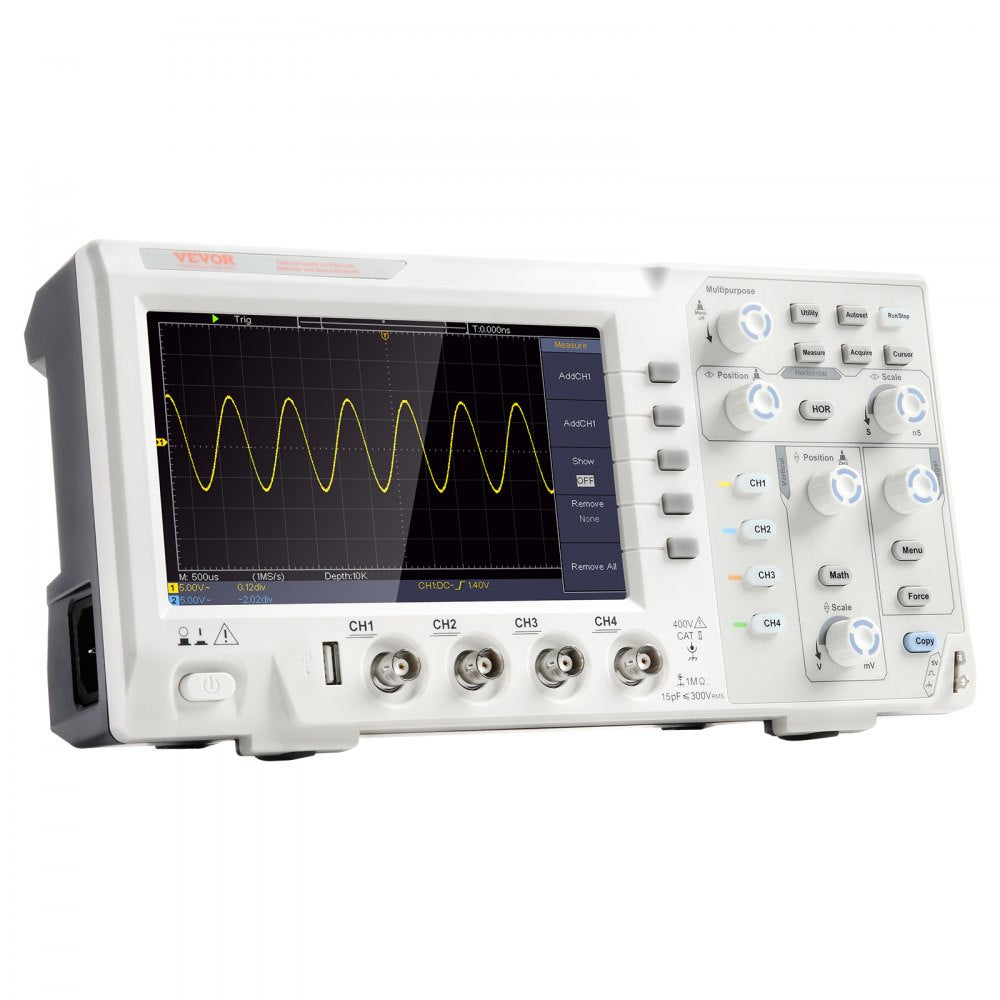

SDS1104 - 100MHz Digital Oscilloscope with 7-inch Display and 4 Channels
SDS1104 - 100MHz Digital Oscilloscope with 7-inch Display and 4 Channels
SKU: SKU: SDS1104 Download PDF
- SDS1104 - 100MHz Digital Oscilloscope with 7-inch Display and 4 Channels
- SDS1104 - 100MHz Digital Oscilloscope with 7-inch Display and 4 Channels
Couldn't load pickup availability
Description:

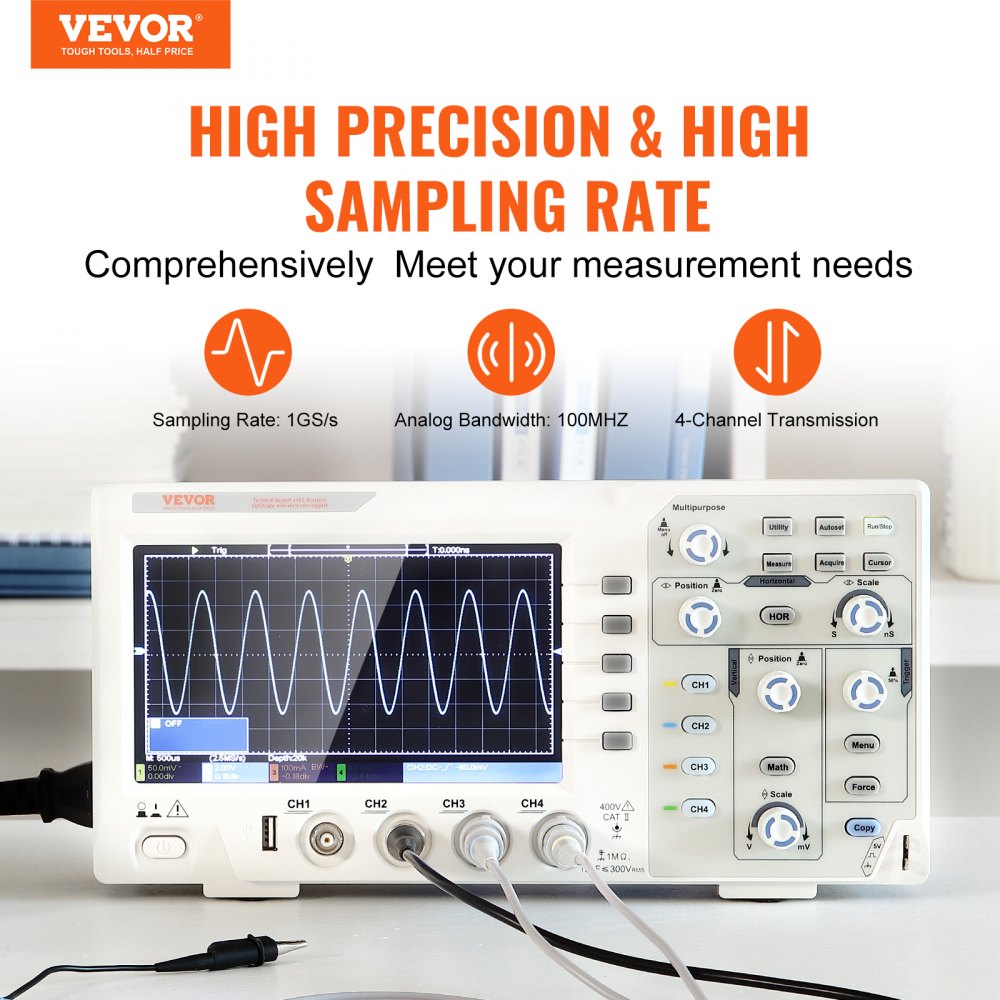

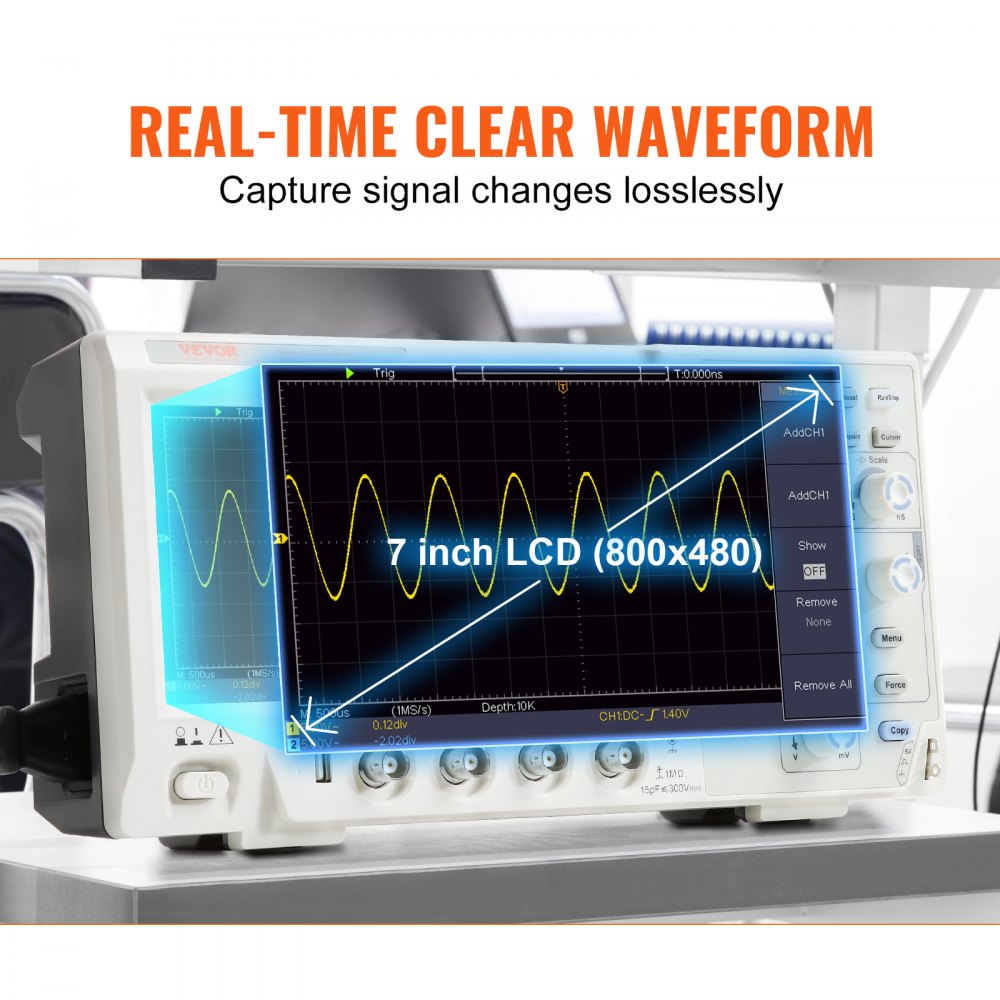

Achieve precision in electronic circuit analysis with the VEVOR digital oscilloscope Boasting an impressive sampling rate of 1 GS/s and a bandwidth of 100 MHz, this oscilloscope features four channels for comprehensive measurement options Its 7-inch color display offers vivid waveform representation, while supporting various mathematical operations such as FFT With 30 automatic measurement functions, it simplifies your workflow by minimizing the need for manual calculations.
Built for longevity, this professional-grade oscilloscope is ideal for both DIY enthusiasts and experts in the field.
Features and Benefits:
•Compact and portable, weighing only 3.42 lbs.
•User-friendly with an intuitive interface for easy operation.
•Quick setup and immediate usability right out of the box.
•High capacity storage for up to 15 waveform data sets.
•Supports SCPI and LabVIEW communication.
•Automatic waveform capture for efficient data acquisition.

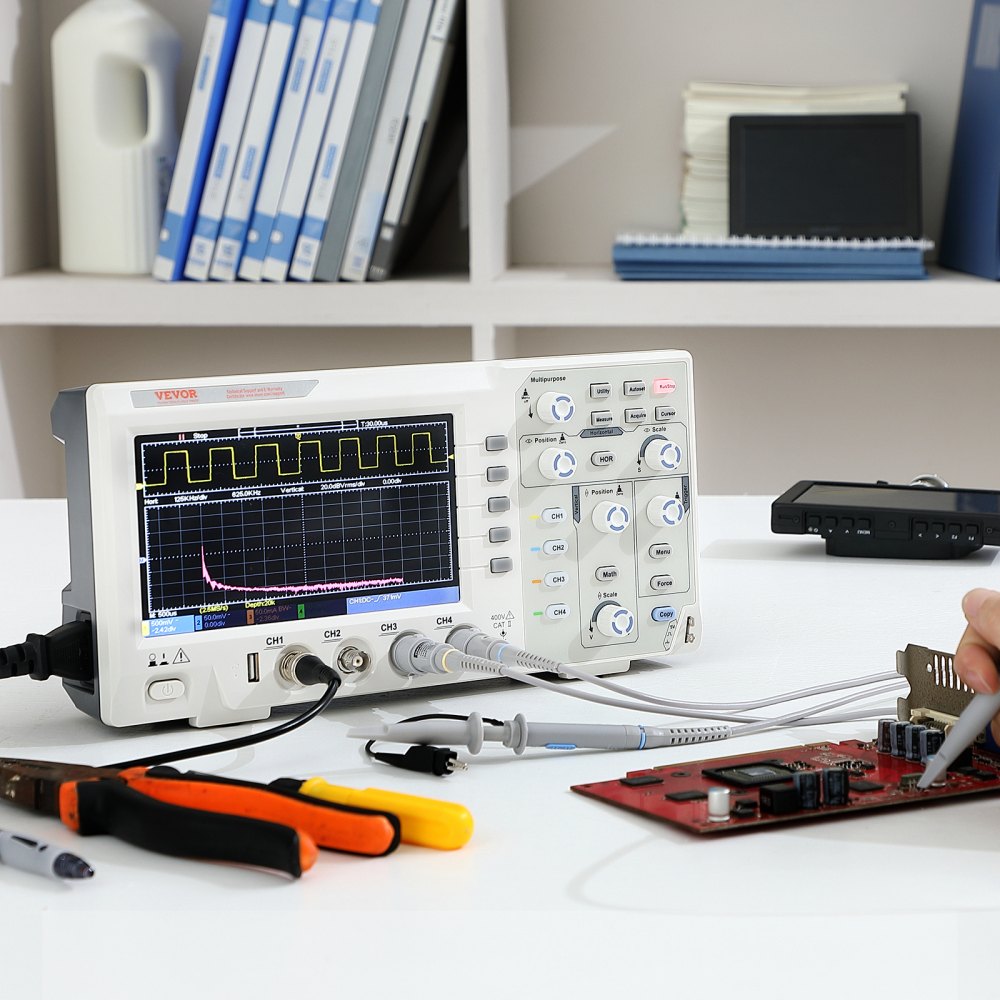

•Electronic circuit debugging.
•Circuit testing.
•Design manufacturing.
•Education training.
•Vehicle maintenance.

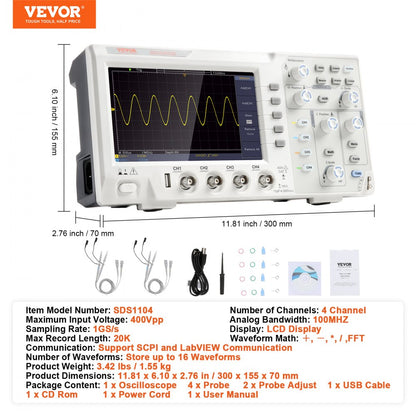

Specifications:
| Item Model Number | SDS1104 |
| Number of Channels | 4 Channel |
| Maximum Input Voltage | 400Vpp |
| Analog Bandwidth | 100MHz |
| Sampling Rate | 1GS/s |
| Display | LCD Display |
| Max Record Length | 20K |
| Waveform Math | ＋, －, *, / ,FFT |
| Communication | Support SCPI and LabVIEW Communication |
| Number of Waveforms | Store up to 15 Waveforms |
| Product Dimensions | 1.85 x 5.98 x 2.76 in |
