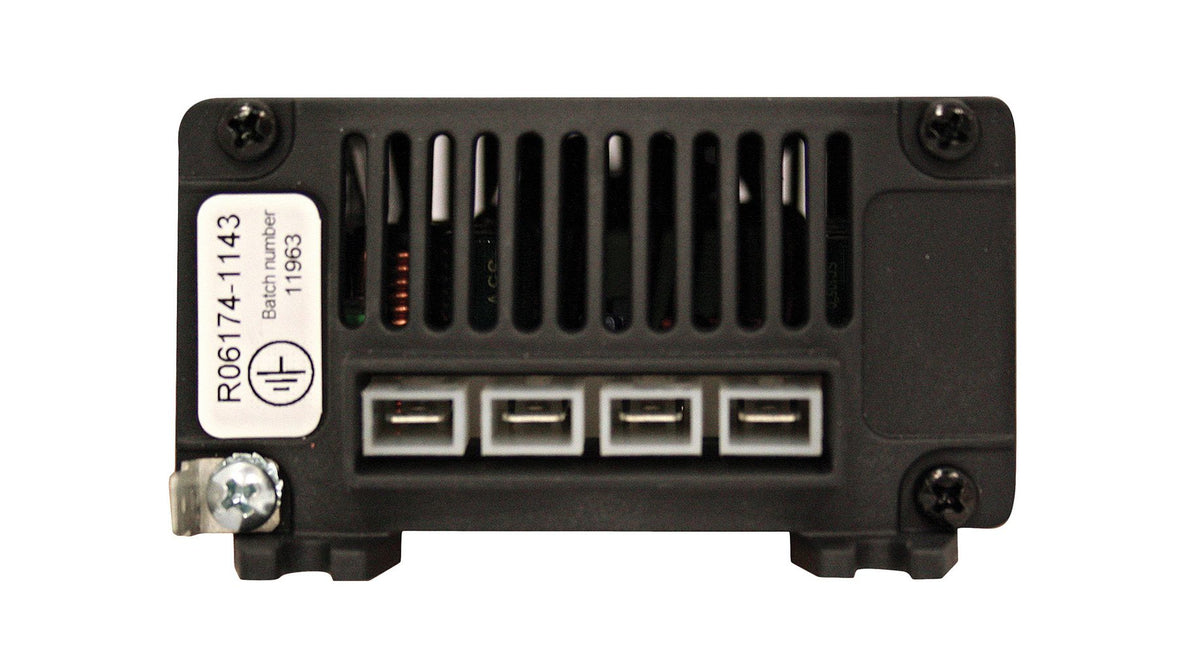

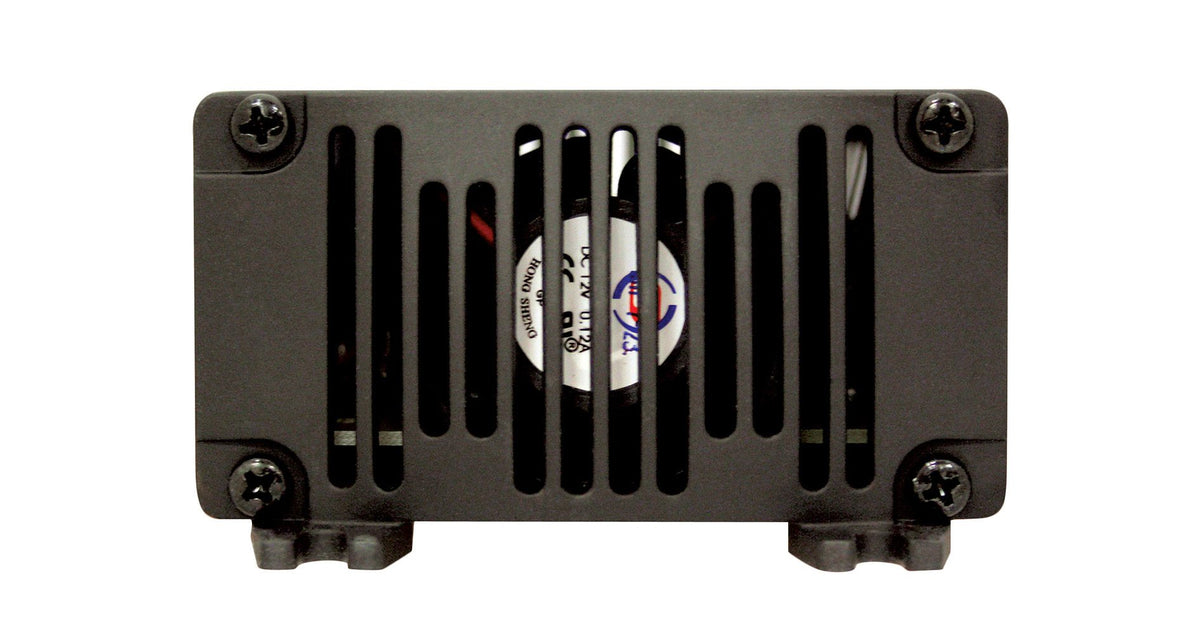

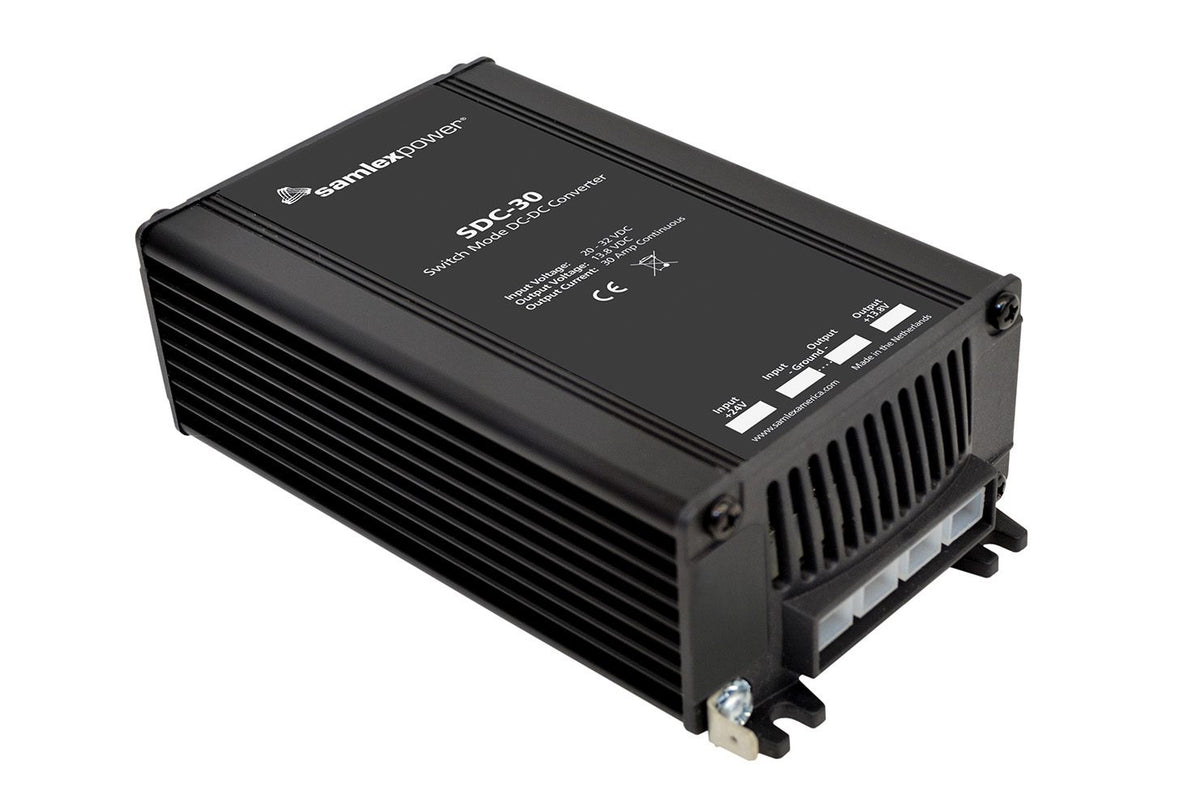

SDC-30 24 VDC-12 VDC Converter

SDC-30 24 VDC-12 VDC Converter

SKU: SDC-30 Download PDF

Now $198.90
BEFORE   Now $198.90
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 32 VDC) to a highly regulated output voltage of 12 VDC nominal (138 VDC) at 30 Amps The SDC-30 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems Features include overload, over-heating, reverse polarity and over-voltage protection.

Features and Benefits:

    •High efficiency switch-mode operation.

    •Converts 24 VDC to 12 VDC output.

    •Rated for 30 Amps.

    •Non-isolated design.

    •Overload protection.

    •Over-heating protection.

    •Reverse polarity protection.

    •Over-voltage protection.

Specifications:

 Input Voltage Range: 20 VDC to 32 VDC
 Output Voltage: 12 VDC nominal (13.8 VDC)
 Current Rating: 30 Amps
 Type: Non-isolated
 Protection Features: Overload, over-heating, reverse polarity, and over-voltage
