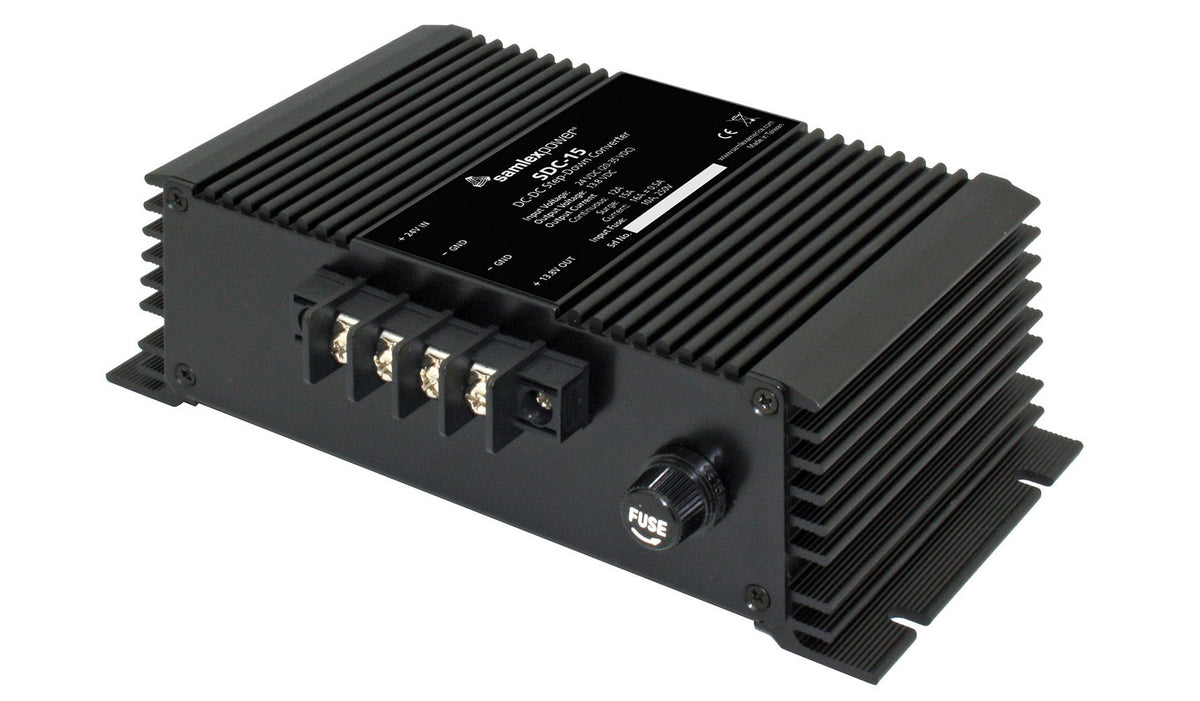

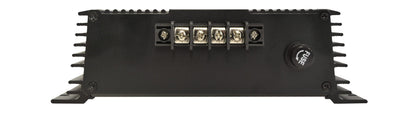

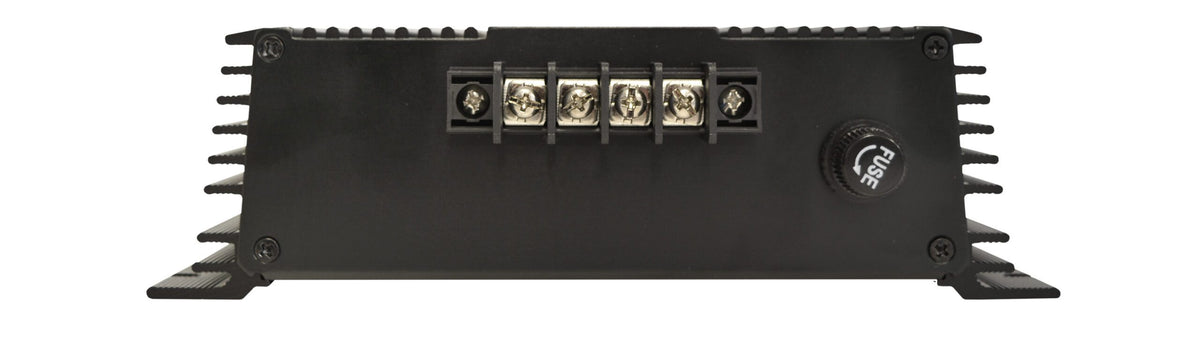

SDC-15 24 VDC-12 VDC Converter

SDC-15 24 VDC-12 VDC Converter

SKU: SDC-15 Download PDF

Now $124.50
BEFORE   Now $124.50
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (138 VDC) at 12 Amps The SDC-15 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems Features include overvoltage/short-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage/ transient protection and input-side reverse polarity protection.

The SDC-15 DC-DC converter is designed for heavy duty applications This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (138 VDC) at 12 Amps The SDC-15 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems.

Features include overvoltage/short-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage/ transient protection and input-side reverse polarity protection The SDC-15 DC-DC converter is designed for heavy duty applications.

Features and Benefits:

    •High efficiency switch-mode conversion.

    •Converts 24 VDC to 12 VDC at 12 Amps.

    •Non-isolated design.

    •Overvoltage/short-circuit protection.

    •Temperature compensated current limit.

    •Output-side overvoltage protection.

    •Input-side overvoltage/transient protection.

    •Input-side reverse polarity protection.

    •Designed for heavy duty applications.

Specifications:

 Input voltage range: 20 VDC to 35 VDC
 Output voltage: 12 VDC nominal (13.8 VDC)
 Output current: 12 Amps
 Isolation: Non-isolated
