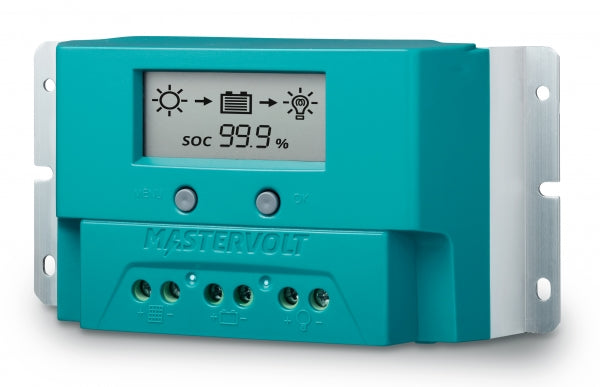

SCM40 PWM Solar Charge Regulator

SCM40 PWM Solar Charge Regulator

SKU: 131824000 Download PDF

Now $10,999.00
BEFORE   Now $10,999.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This solar charge regulator based on PWM technology is a great solution to charge your batteries with solar energy Suitable for both 36 cells panels (in 12 V systems) and 72 cells panels (in 24 V systems) Its protection against water spray, suitability for high ambient temperature and compatibility with negative grounding, make it the perfect solar regulator for marine and mobile environments Optionally, a temperature sensor is available.

The SCM40 PWM is suitable for all types of lead-acid batteries in both 12 V and 24 V The device features a large display and switchable output with evening / night lighting function.

Features and Benefits:

    •Suitable for 36 cells panels in 12 V systems and 72 cells panels in 24 V systems.

    •Protection against water spray.

    •Compatible with negative grounding.

    •User-friendly with a large display.

    •Switchable output with evening / night lighting function.

    •Flexible for various lead-acid batteries.

Specifications:

 System voltage (battery) 12/24 V auto select
 Nominal charge current 40 A
 Battery types AGM, Gel, flooded
 Battery temperature sensor optional, product code 41500500
 Switchable output (max. current) 40 A
 Energy consumption (night) < 7 mA
 Panel type (12 V system) 36 cells
 Panel type (24 V system) 72 cells
 Max. PV current (Impp) 40 A
 Recommended PV power (12 V system) 720 Wp
 Recommended PV power (24 V system) 1440 Wp
 Cooling passive
 Display/read-out backlit LCD with PV power, load power, battery voltage, charge current, warnings, battery state of charge, battery setting
 Grounding common negative grounding
 Protection degree IP23
 Dimensions, hxwxd 98 x 189 x 53 mm, 3.9 x 7.4 x 2.1 inch
 Weight 0.5 kg, 1.1 lb
 Technology PWM (Pulse Width Modulation)
 Temperature range (ambient temp.) -20 °C to 50 °C, derating power > 40
 Cable size max. 16 mm²
 Protections over temperature, over load, high/low battery voltage, high/low PV voltage, short circuit, reverse polarity & HV transients
 Relative humidity 95 % non-condensing
