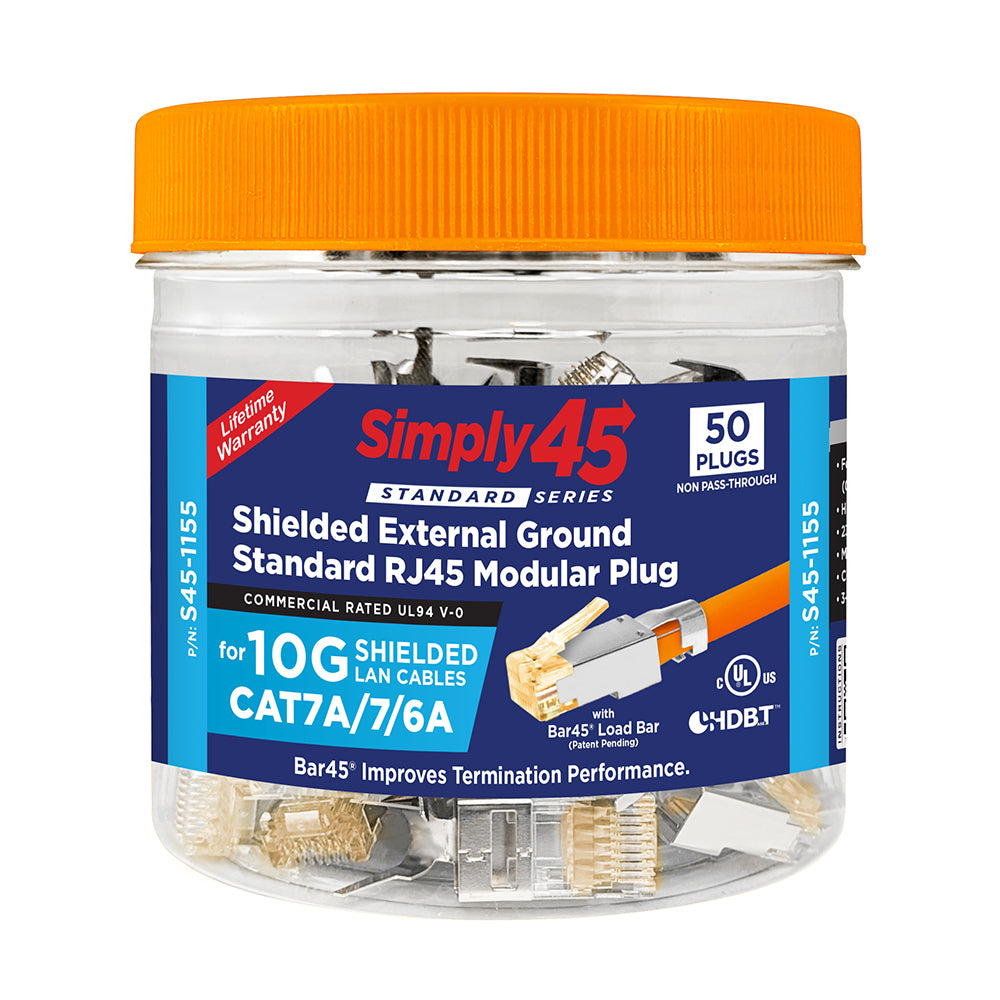

S45-1155 - Simply45 10G Cat6a/7/7a Shielded External Ground - Standard Series RJ45 with Bar45 50 pc/Jar

Description:

Simply45 Standard Series connectors feature our reengineered connector designed for the technology used today Simply45 only uses the highest quality materials to ensure reliable results that greatly reduce truck roll backs Our connectors are commercial rated and feature a 3 prong style contact designed for all PoE application making Simply45 the most reliable RJ45 termination on the market today The S45-1155 is ideal for most shielded 10G LAN cables with FPE (foamed polyethylene) wire conductors.

Supports 23 AWG LAN cables with a maximum cable diameter of 80mm (0315') and wire conductor sizes 121mm – 145mm (0047' – 0057') The S45-1155 works great with Cat7a, Cat7, Cat6a LAN cables with S/FTP, U/FTP, and F/FTP cable constructions These RJ45 mod plugs are UL94 V0 rated for all commercial installations and recommended for CMP Plenum, CMR, CM; and LSZH up to B2ca rated LAN cables.

Features and Benefits:

•Reengineered design for ease of use with technology used today..

•Commercial rated connectors with a 3 prong style contact for PoE applications..

•Supports 10GBase-T performance applications..

•Unique internal design improves NEXT performance by reducing untwisted wire length..

•Bar45 Load Bar simplifies termination process..

•Compatible with ANSI/TIA 568.2-D and ISO/IEC 11801 standards..

•UL94 V0 rated materials ensure higher quality and safety..

•Lifetime Limited Warranty offering customer assurance..

•Termination of shielded 10G LAN cables..

•Suitable for various cable constructions including Cat7a, Cat7, and Cat6a..

•Works in all compliant RJ45 modular plug sockets..

Specifications:
