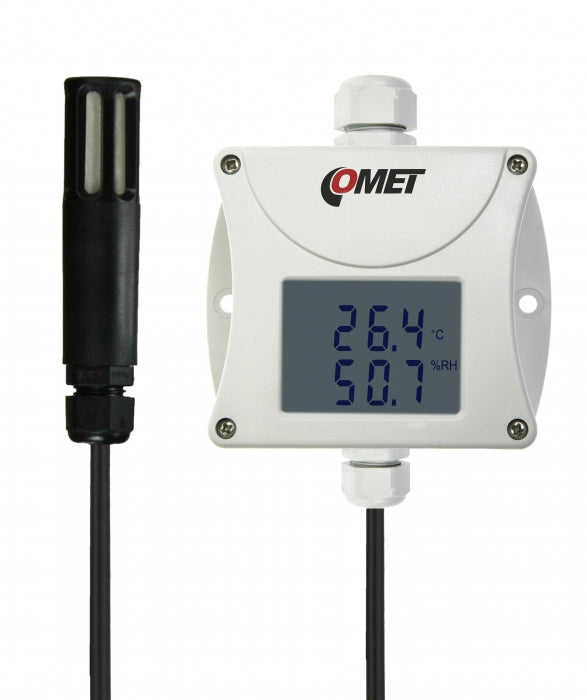

RH+T+Tdp Humidity and Temperature Transmitter with 4 meters Probe

RH+T+Tdp Humidity and Temperature Transmitter with 4 meters Probe

SKU: T3111-4 Download PDF

Sold out
Web pricing policyShipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The RH+T+Tdp cable probe features a cable length of 4 meters, designed for both outdoor and indoor use It incorporates relative humidity and temperature sensors located at the probe on the cable The measured values are converted to various humidity interpretations including dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy This device comes with a T+RH probe, which includes all essential functions for accurate environmental measurements.

Features and Benefits:

    •Measures temperature and relative humidity with high accuracy.

    •Capable of interpreting measurements as dew point, absolute humidity, specific humidity, mixing ratio, and specific enthalpy.

    •User-adjustable output configuration from PC.

Specifications:

 Temperature Measuring Range: -30 to +105 °C
 Temperature Accuracy: ±0.4 °C
 Temperature Resolution: 0.1 °C
 Humidity Measuring Range: 0 to 100 % RH
 Humidity Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Resolution: 0.1% RH
 Dew Point Measuring Range: -60 to +80 °C
 Dew Point Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution: 0.1 °C
 Operating Temperature: -30 to +80 °C
 Channels: 1x connectable temperature+humidity probe
 Output: 4-20 mA, galvanic isolated
 Power: 9-30 Vdc
 Protection Class: IP65 electronics; IP40 sensors
 Dimensions: 88.5 x 145 x 39.5 mm; length/diameter of external probe 88/18 mm
 External Probe Cable Length: 4 meters
