Remote CO2 concentration with Ethernet interface and two relays

Description:

CO2 level transmitter with two output relays The CO2 measurement is based on a 2-source, 2-beam process CO2 measurement with long-term stability is guaranteed thanks to the proven non-dispersive infrared (NDIR) CO2 measurement cell The unique patented auto-calibration procedure compensates for aging of the infrared source and guarantees high reliability, long term stability and eliminates the need of periodical recalibration in the field.

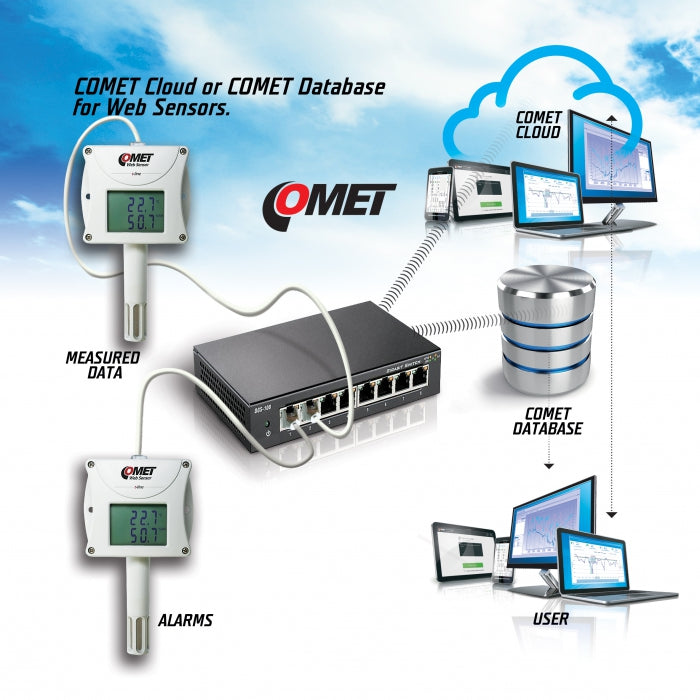

The CO2 concentration is shown on the display or signaled by a color LED Processing and analysis of measured data: online in COMET Cloud, COMET Database software integration into 3-party systems Possibility to extend the measuring range for an additional charge: Measuring range: 0 to 10 000 ppm Accuracy: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa.

Features and Benefits:

•Two output relays.

•Long-term stability.

•Auto-calibration procedure.

•High reliability.

•Eliminates the need for periodical recalibration.

•Data processing in COMET Cloud and integration with third-party systems.

•Extendable measuring range for an additional charge.
