Pt1000TR160/0 Temperature Probe - Multi-purpose Watertight

Pt1000TR160/0 Temperature Probe - Multi-purpose Watertight

SKU: SN200 Download PDF

Sold out
Web pricing policyShipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This low-cost multi-purpose watertight (IP67) temperature probe is designed to operate within a measuring range of -30 to +80°C It features a tolerance of ±(030+0005*|t|) and adheres to accuracy class B as per IEC751 standards The probe is constructed with a polyamide enclosure housing a shielded PVC cable, which measures 2 meters in length The dimensions include a 6mm diameter enclosure and a 3mm diameter cable.

It operates without a connector, making it suitable for various applications.

Features and Benefits:

    •Watertight design (IP67).

    •Operating temperature range of -30 to +80 °C.

    •High accuracy with tolerance of ±(0.3 + 0.005 t).

    •Fast time response in fluids.

    •Durable polyamide-based enclosure.

Specifications:

 Measuring range: -30 to +80 °C
 Accuracy: ± (0.3 + 0.005 t) at °C
 Accuracy class: A
 Time response: t0.5 <12 s (in flowing water at > 0.2 m/s), t50 <12s, t90 <32s (in liquid)
 Type of sensing element: Pt1000
 Temperature coefficient: 3850 ppm / °C
 Wire connection: 2-wire connection
 Material of the case: POLYAMIDE-based plastic

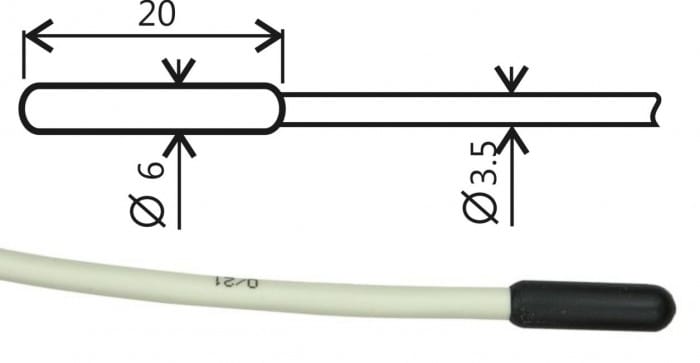

 Dimensions of the case: length 20 mm; diameter 5.7 ± 0.1 mm
 Lead-in cable: PVC shielded
 Length of lead-in cable: 2 meters
 Connector: without connector
 IP protection: IP67
 Warranty: 30 months
